Polaris SCRAMBLER 500 2000 User Manual

A6

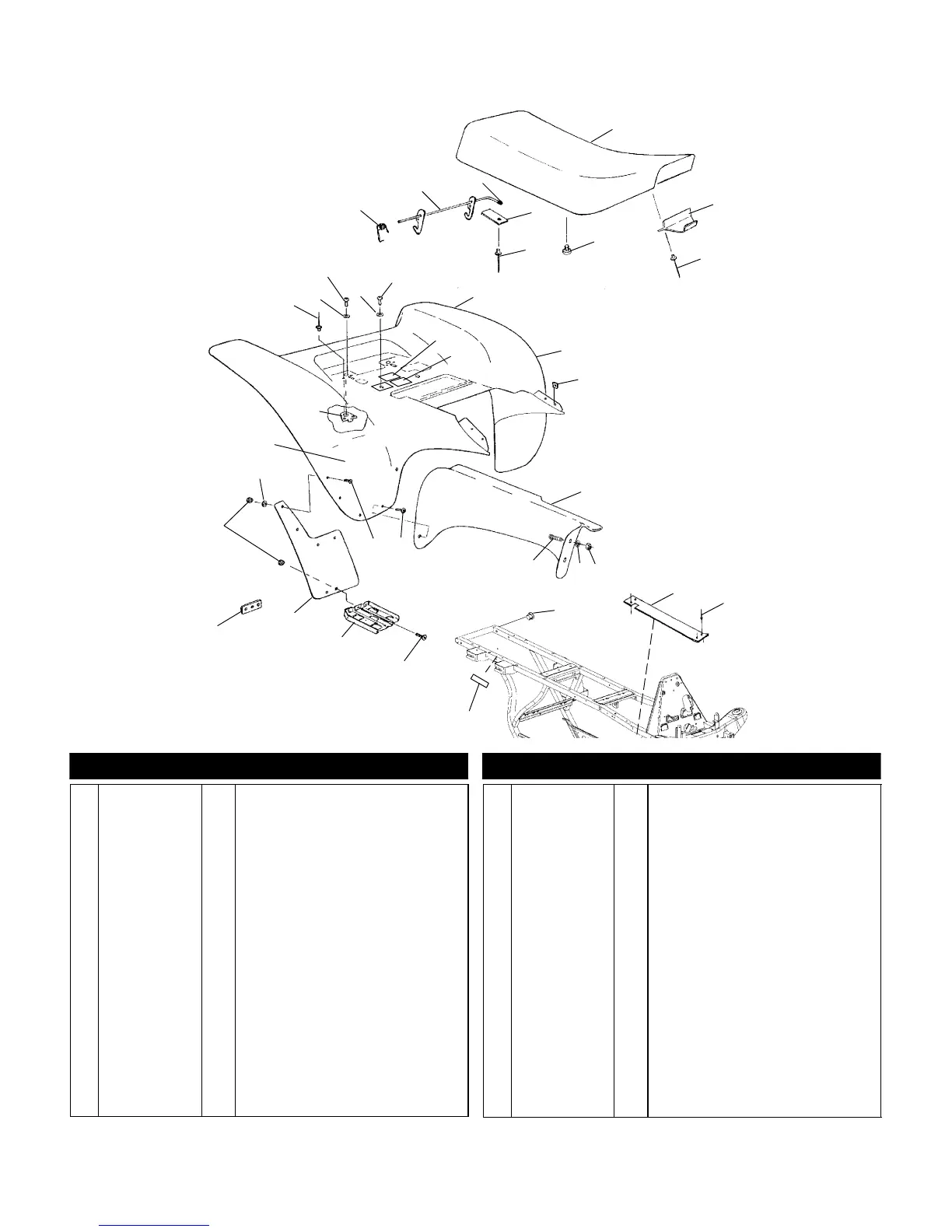

REAR CAB
Scrambler 500 A00BG50AA
21
8
17
30
14
3
1
31
2
20
29
19
15
18
28
26
25
23
24
13
12
6
5
22
9
10
11
16
27
2
26
20
2
21
7
2
4
Ref. Part No . Qty. Description Ref. Part No. Qty. Description
1 7621472 4 Rivet
2 7555859 10 Washer, Flat
3 7512232 2 Screw
4 7512242 2 Screw
5 7041607 1 Spring, Latch, Light
6 1040412 1 Latch, Seat
7 5411392 1 Cap, Seat Latch
8 2682453-070
2681769-070
1
1
Seat, Black
Covering, Seat, Black
9 5431986 1 Tongue, Seat
10 7621479 2 Rivet
11 5410414 6 Bumper, Rubber
12 5211033 2 Bracket, Lever Retainer
13 7621403 1 Rivet
14 5810991 1 Foil, Rear Cab, Small
15 7073761 1 Decal - Carb Information
16 7077446 1 Decal - Filter Element
17 5432820-288 1 Cab, Rear, Blazing Red
18 7670057 2 Nut, Speed, U-Type
19 2632275 1 Shield, Muffler
20 7542122 17 Nut, Nylok
21 7517264 4 Screw
22 5432831 2 Plug, End Cap, Ribbed
23 5241403-067 1 Guard, Clutch
24 7661638 4 Rivet
25 2670133 2 Reflector, Red
26 7512282 16 Bolt
27 -- -- -- -- -- -- -- 2 Footpad
(See Front Cab Pg. A5, Ref. 18)
28 5850147
5850148
1
1
Mudflap, Rear, LH
Mudflap, Rear, RH
29 5211131-067 2 Bracket, Mudflap
30 5810957 1 Foil, Rear Cab
31 5220880 2 Bracket, Rear Seat Holddown
3/00
