C6

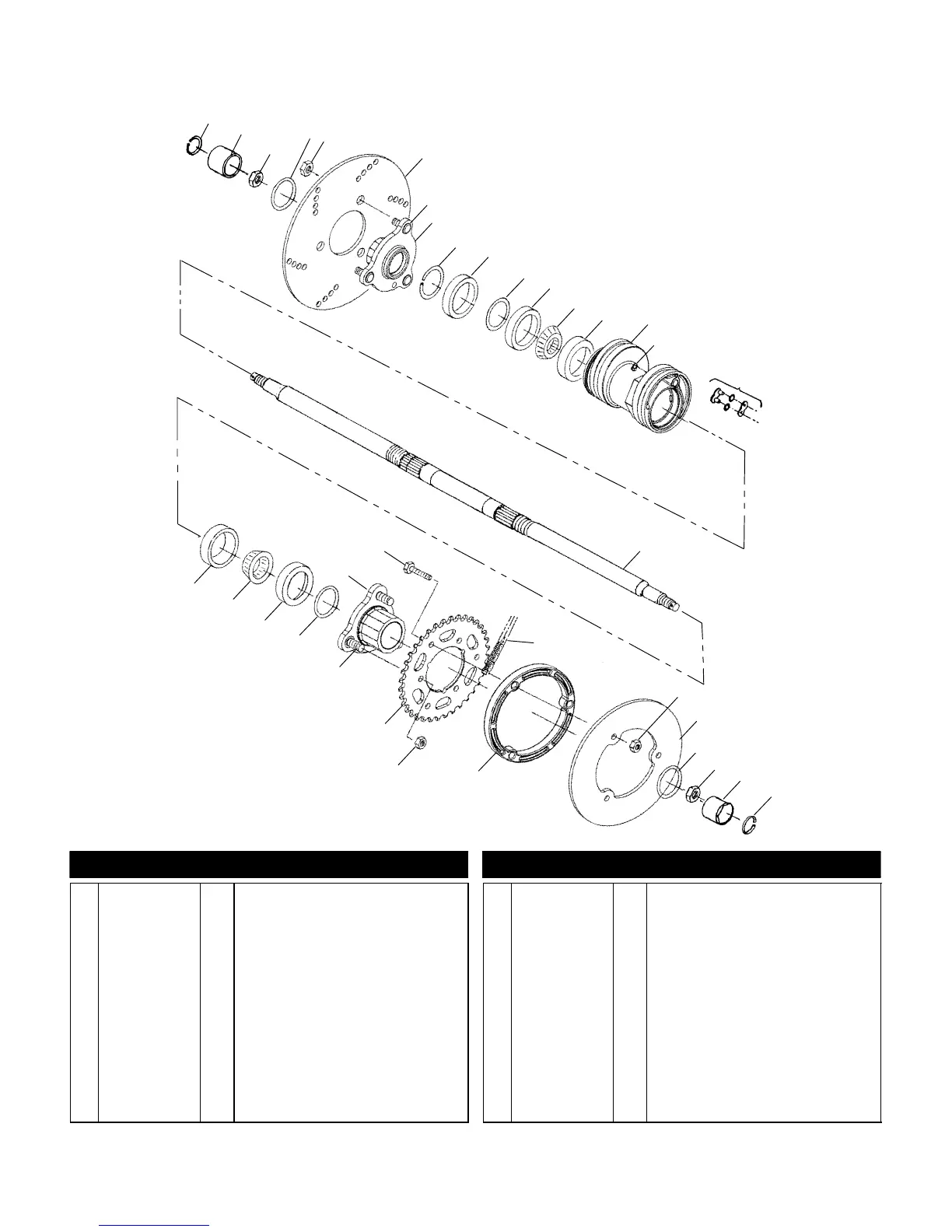

REAR HOUSING
Scrambler 500 A00BG50AA
1
7
3
12
17
21
24
18
8
5
14
15
10
23
9
20
22
11
13
2
6
3
2
1
6
10
11
12
13
16
4
4
19
19
3
Ref. Part No . Qty. Description Ref. Part No. Qty. Description
1 7710472 2 Ring, Retaining
2 5510313 2 Extrusion, Retainer, Nut
3 7542439 6 Nut, Nylok
4 5411555 2 Seal, Foam
5 5211849 1 Disc, Brake
6 7515513 6 Stud
7 1520259 1 Hub, Brake Disc (Incl. 6)
8 7710496 1 Ring, Retaining
9 5010462 1 Spacer, Axle
10 5410889 2 O-Ring
11 3610070 2 Seal
12 3554518 2 Bearing, Cone, Tapered
13 3554517 2 Bearing, Cup, Tapered
14 5132098 1 Housing, Axle, Rear
15 7080306 1 Fitting, Lubrication
16 3225027 1 Link, Connector, 520 Regina
17 5020944 1 Axle, Rear
18 5211585-067 1 Guard, Sprocket
19 7547108 6 Nut
20 3221111-076 1 Chain, 520 O-Ring
21 7512404 3 Bolt
22 1520258 1 Asm.,Hub,Sprocket(Incl.6)
23 3222109 1 Sprocket, 36T
24 5630586 1 Spacer
3/00
