Polaris SCRAMBLER 500 2000 User Manual

D8

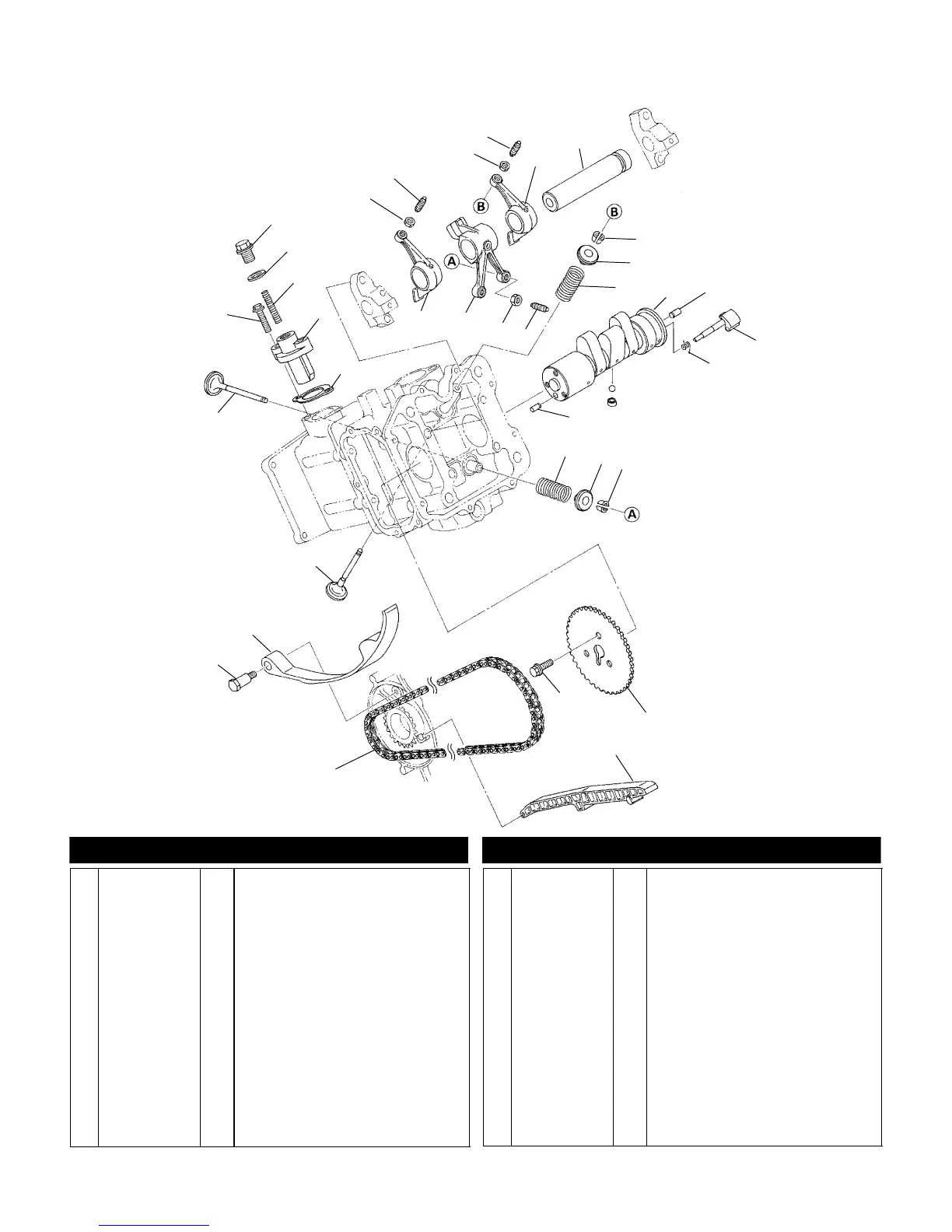

INTAKE and EXHAUST
Scrambler 500 A00BG50AA
14
18
15
16
17
25
26
13
12
11
10
6
9
8
22
7
19
8
21
24
4
3
2
1
5
20
27
23
8
9
6
9
12
11
13
Ref. Part No . Qty. Description Ref. Part No. Qty. Description
1 3084845 1 Plug
2 3084920 1 Gasket, Plug
3 3086839 1 Spring, Tensioner
4 3086813 1 Asm., Tensioner (Incl. 1-3)
5 3084922 1 Gasket, Tensioner
6 3084910 2 Asm.,RockerArm,Intake(Incl.8,9)
7 3084913 1 Asm., Rocker Arm, Exhaust (Incl. 8,9)
8 3084912 4 Nut
9 3084911 4 Screw, Adjusting
10 3084909 1 Shaft, Rocker
11 3084908 8 Collet, Valve
12 3084907 4 Retainer, Spring
13 3084906 4 Spring, Valve
14 3085855 1 Camshaft (Incl. 15-18)
15 3086838 1 Pin, Dowel
16 3085348 1 Lever, Release
17 3085076 1 Spring, Return
18 3084899 1 Pin, Dowel
19 3084914 1 Sprocket 2
20 3081657 3 Bolt and Washer
21 3084916 1 Guide, Chain
22 3084915 1 Chain, Timing
23 3084924 1 Bolt, Pivot
24 3084917 1 Lever
25 3085349 2 Valve, Intake
26 3084905 2 Valve, Exhaust
27 3084874 2 Bolt, Flange
5/99
