A5

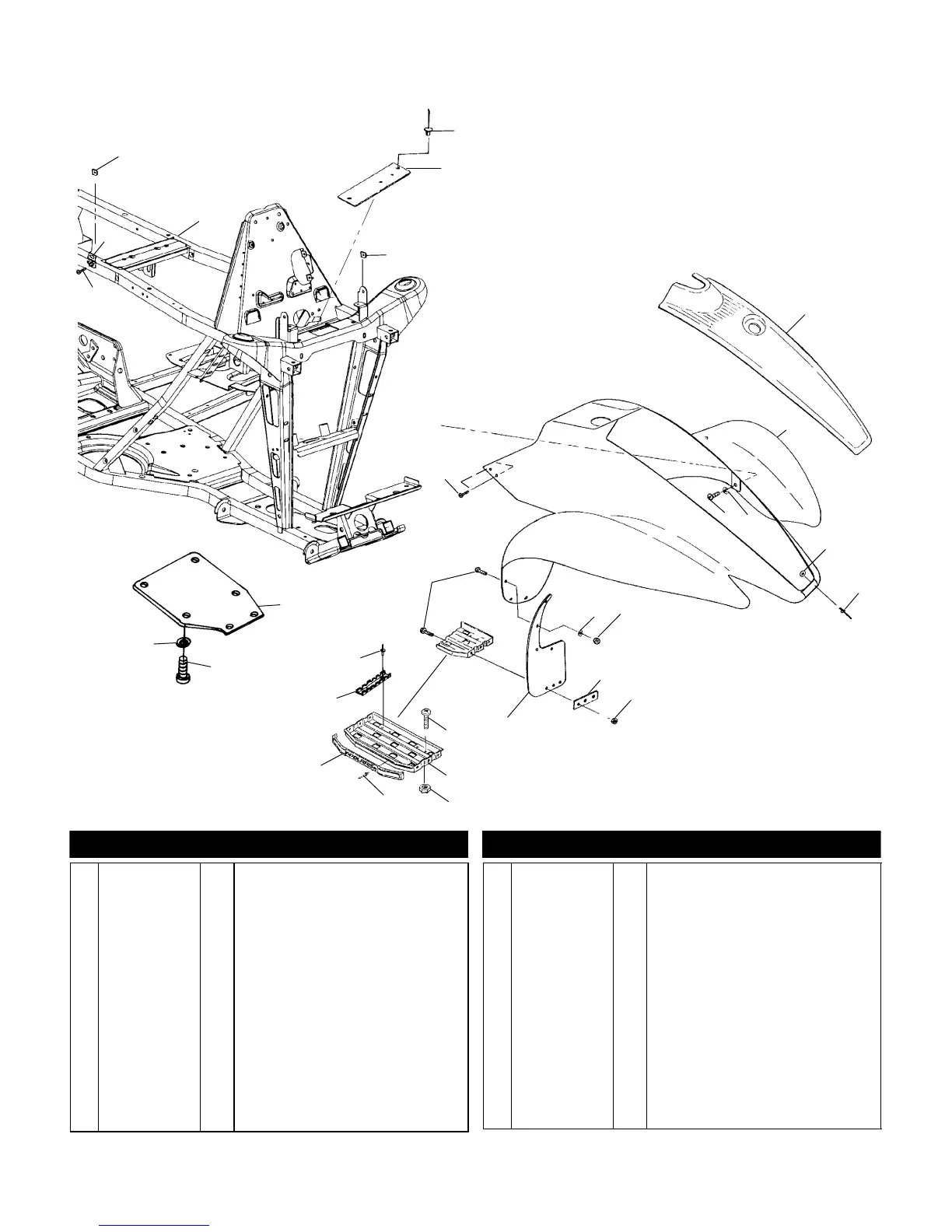

FRONT CAB
Scrambler 500 A00BG50AA
8
9
14
15
7
7
14
16
17
22
23
4
18
19
20
12
13
1
1
11
21
10
14
7
2
3
15
6
5
13
E 2000 Polaris Sales Inc.
Ref. Part No. Qty. Description Ref. Part No. Qty. Description
1 7670060 4 Nut, Speed, U-Clip
2 5224718-067 2 Bracket, Cab Mount
3 7517386 2 Screw
4 1013037-067 1 Frame
5 7621432 2 Rivet, Pop
6 5211547-067 1 Strap, Fuel Pump Mounting
7 7512282 24 Bolt
8 5432553-288 1 Cover, Front, Blazing Red
9 2631988-288 1 Cab, Front, Blazing Red
(w/Warning Decals)
10 7522026 2 Screw
11 7558301 2 Washer, Flat
12 7558201 2 Washer, Flat
13 7621472 8 Rivet
14 7542122 24 Nut, Nylok
15 7555859 16 W asher, Flat
16 5211131-067 2 Bracket, Mudflap
17 5811831
5850150
1
1
Mudflap, Front, LH
Mudflap, Front, RH
18 1013083-067
1040691-067
1013249-067
1
1
2
Footpad, RH (If built before 11/22/99)
Footpad, LH (If built before 11/22/99)
Footpad (If built after 11/22/99)
19 7661825 8 Rivet
20 5431484 2 Trim, Footrest
21 5242525-067 2 Bracket, Heel Cleat
22 5432763 1 Guard, Rock
23 7515179 6 Screw
3/00
