B9

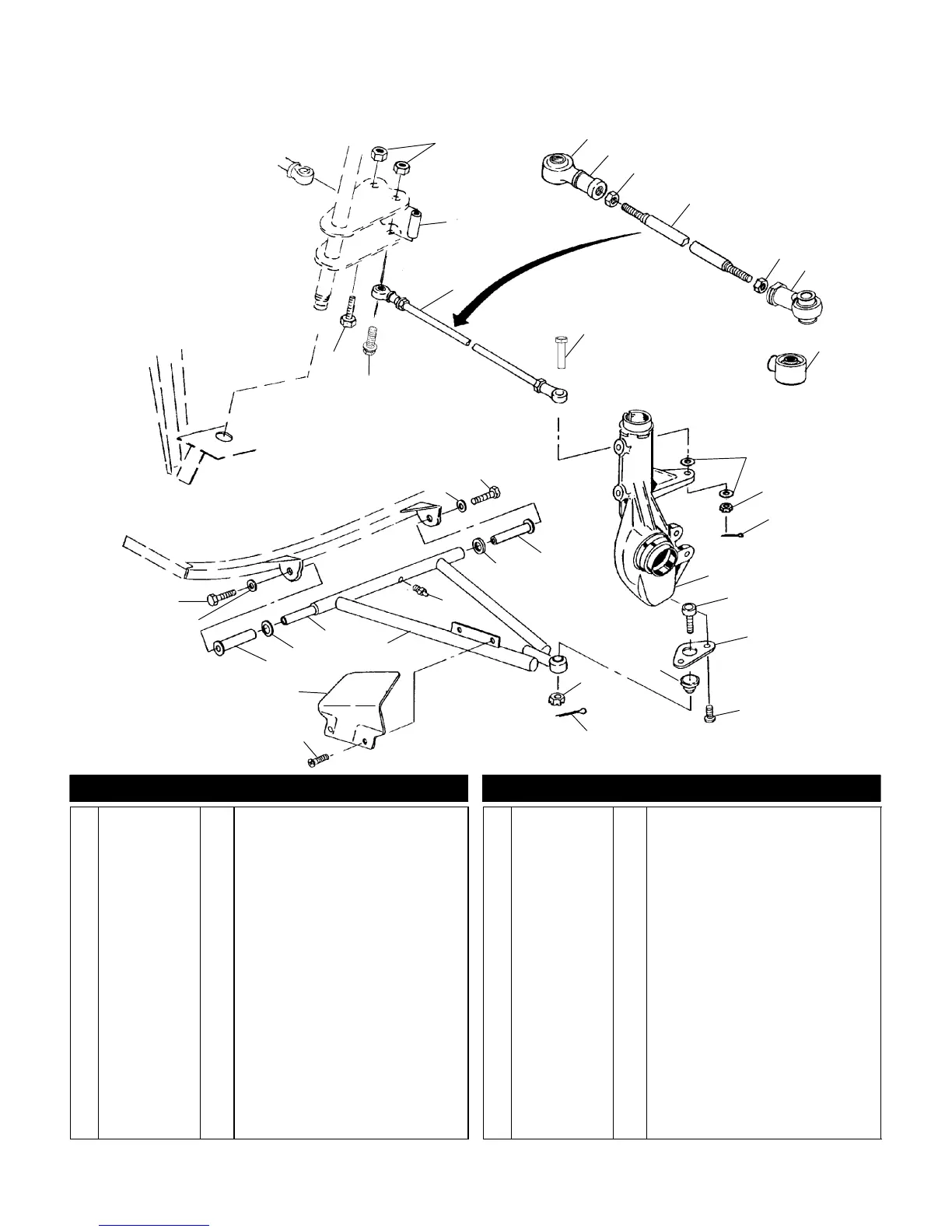

A- ARM/STRUT MOUNTING
Scrambler 500 A00BG50AA
30
1
4
5
6
7
8
9
3
13
14
15
16
17
19
18
20
21
26
27
25
24
23
29
28
28
29
24
23
22
31
2
14
12
11
10
Ref. Part No . Qty. Description Ref. Part No. Qty. Description
1 7542403 2 Nut, FLEXLOC
2 5333367 1 Bushing
3 1820805 2 Asm., Tie Rod (Incl. 4-9)
4 5411291 2 Boot, Seal, Rod End
5 7061034 2 Rod End, RH
6 7542711 2 Nut
7 5020926 2 Tie Rod
8 7547028 2 Nut, LH
9 7061054 2 Rod End, LH
10 5411920 1 Boot, Seal, Rod End
11 7517674 2 Bolt
12 7556099 4 Washer, Flat
13 7546904 2 Nut
14 7661203 4 Pin, Cotter
15 -- -- -- -- -- -- -- 1 Asm., Hubstrut
(See Front Strut Pg. B6, Ref. 16)
16 7080927 2 Joint, Ball
17 5211121 2 Br acket, Ball Joint
18 7512284 4 Screw
19 5410548 2 Boot, Rubber
20 7542438 2 Nut, Castle
21 7512084 4 Screw
22 5431150
5431149
1
1
Shield, CV Joint, LH
Shield, CV Joint, RH
23 5431596 4 Bushing, A-Arm, Long
24 5020677 4 Bushing
25 5020681 2 Shaft, A-Arm
26 2201157
2201158
1
1
Kit - A-Frame, LH
Kit - A-Frame, RH
27 7080433 2 Fitting, Lubrication
28 7552603 4 Washer, Spring Lock
29 7512492 4 Screw
30 7517527 1 Bolt
31 7515415 1 Screw
10/00
