C7

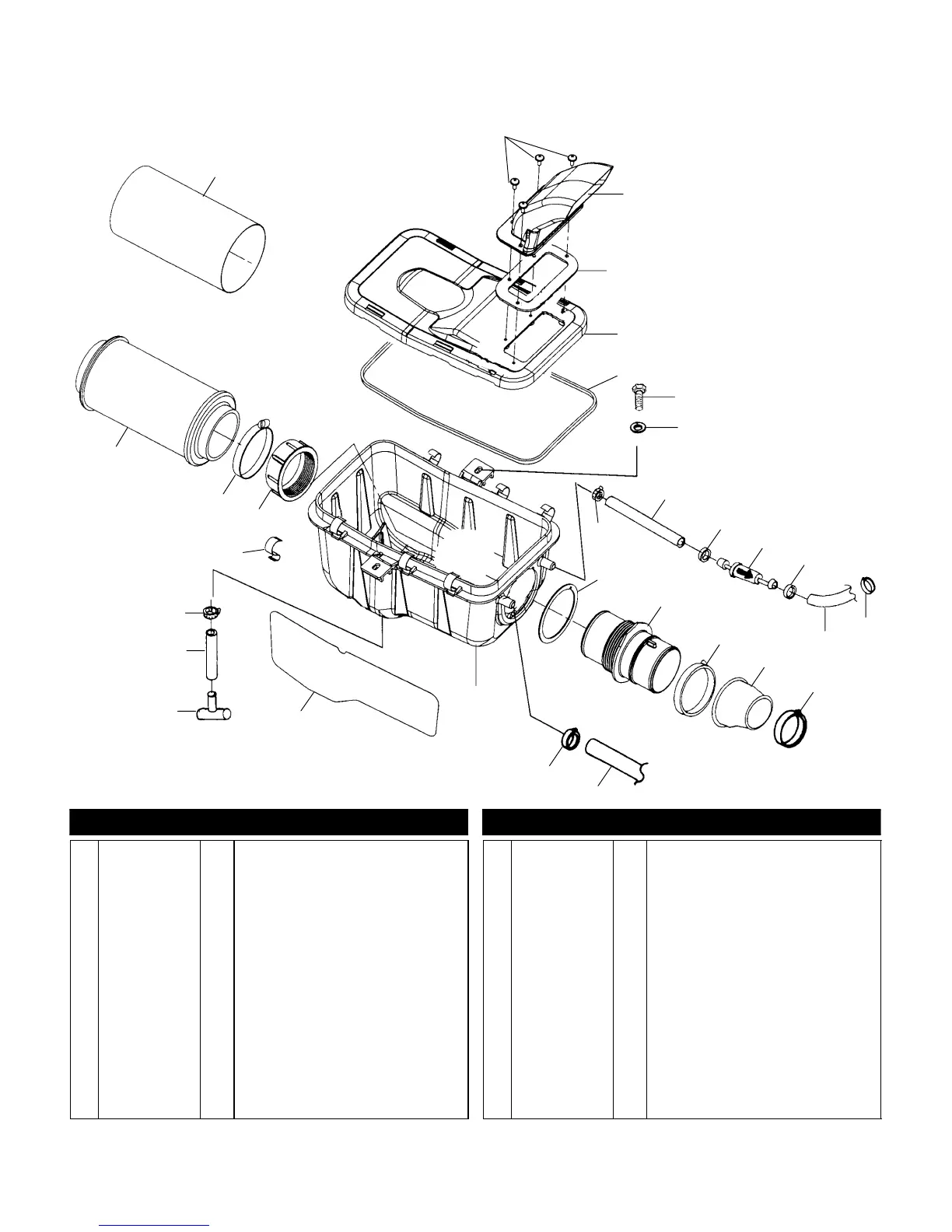

AIR BOX
Scrambler 500 A00BG50AA
22
16
26
17
14
9
6
2
19
5
27
10
24
12
23
4
15
18
13
11
7
9
15
18
8
28
21
3
1
20
25
Ref. Part No . Qty. Description Ref. Part No. Qty. Description
1 7517541 4 Screw
2 5432859 1 Duct, Inlet
3 5411422 1 Gasket, Intake
4 5432868 1 Cover, Air Box
5 5811482 1 Seal, Cover
6 7515179 2 Screw
7 7558301 2 Washer, Flat
8 8450073-600 AR Line, Breather
9 7080544 2 Clamp, Hose
10 2530029 1 Filter, Breather
11 7080694 1 Clamp, Hose
12 5411847 1 Hose, Breather
13 7080511 1 Clamp, Band
14 5411414 1 Boot, Carb
15 7080413 2 Clamp
16 5432473 1 Duct, Carb, Inlet
17 5830128 1 Gasket, Duct
18 7080699 2 Clamp, Hose
19 5432774 1 Box, Air
20 5411873 1 Hose, Breather, Oil Tank
21 5811650 1 Foil, Air Box
22 5432377 1 Plug, Trap
23 8450059-150 AR Line, Fuel
24 7080650 1 Clamp, Hose
25 5242044 6 Clip
26 5432601 1 Collar, Inlet, Carb
27 7080595 1 Filter, Air
28 5811633 1 Filter, Sleeve, Precleaner
