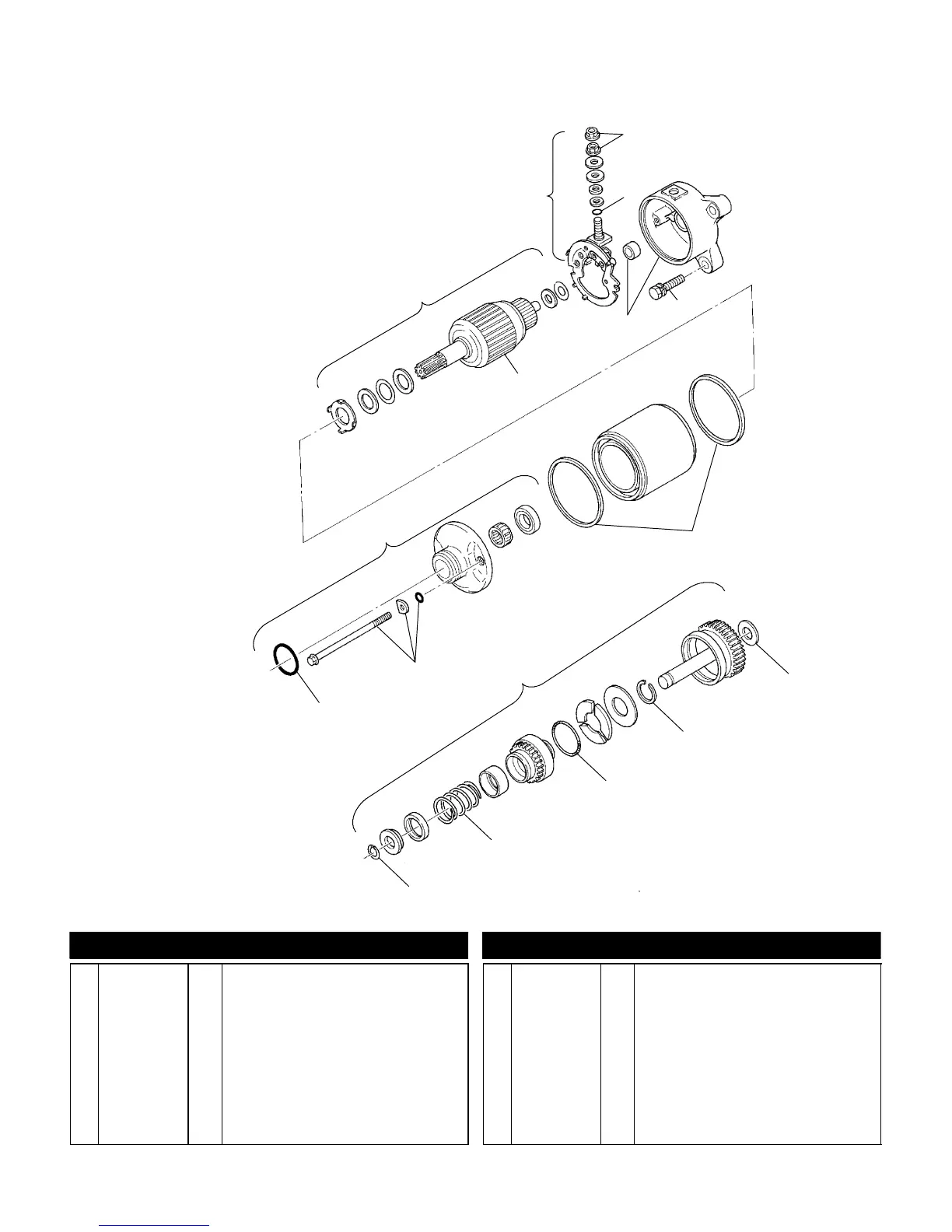

Polaris SCRAMBLER 500 2000 - Starting Motor Assembly

E2
STARTING MOTOR
Scrambler 500 A00BG50AA
9
12
1
4
10
3
2
11
13
17
16
15
14
5
6
8
7
Ref. Part No . Qty. Description Ref. Part No. Qty. Description
3084981 1 Asm., Starting Motor (Incl. 1-4,6-10,12)
1 3084982 1 Washer Set
2 3084406 1 Brush Set, Carbon
3 3083649 2 Nut, Flange
4 3084408 3 O-Ring
5 3082038 2 Bolt and Washer
6 3085034 1 Asm., Bracket, Rear
7 3085353 1 Asm., Armature
8 3085033 1 Asm., Bracket, Front
9 3240114 1 O-Ring
10 3084983 2 Asm., Set Bolt (Incl. 4)
11 3085394 1 Asm., Gear Shaft (Incl. 13-17)
12 3084405 2 Ring, Rubber
13 3083737 1 Washer, Gear Shaft
14 3084412 1 Clip
15 3084411 1 Spring, Weight
16 3084410 1 Spring, Return
17 3084409 1 Clip
5/99
