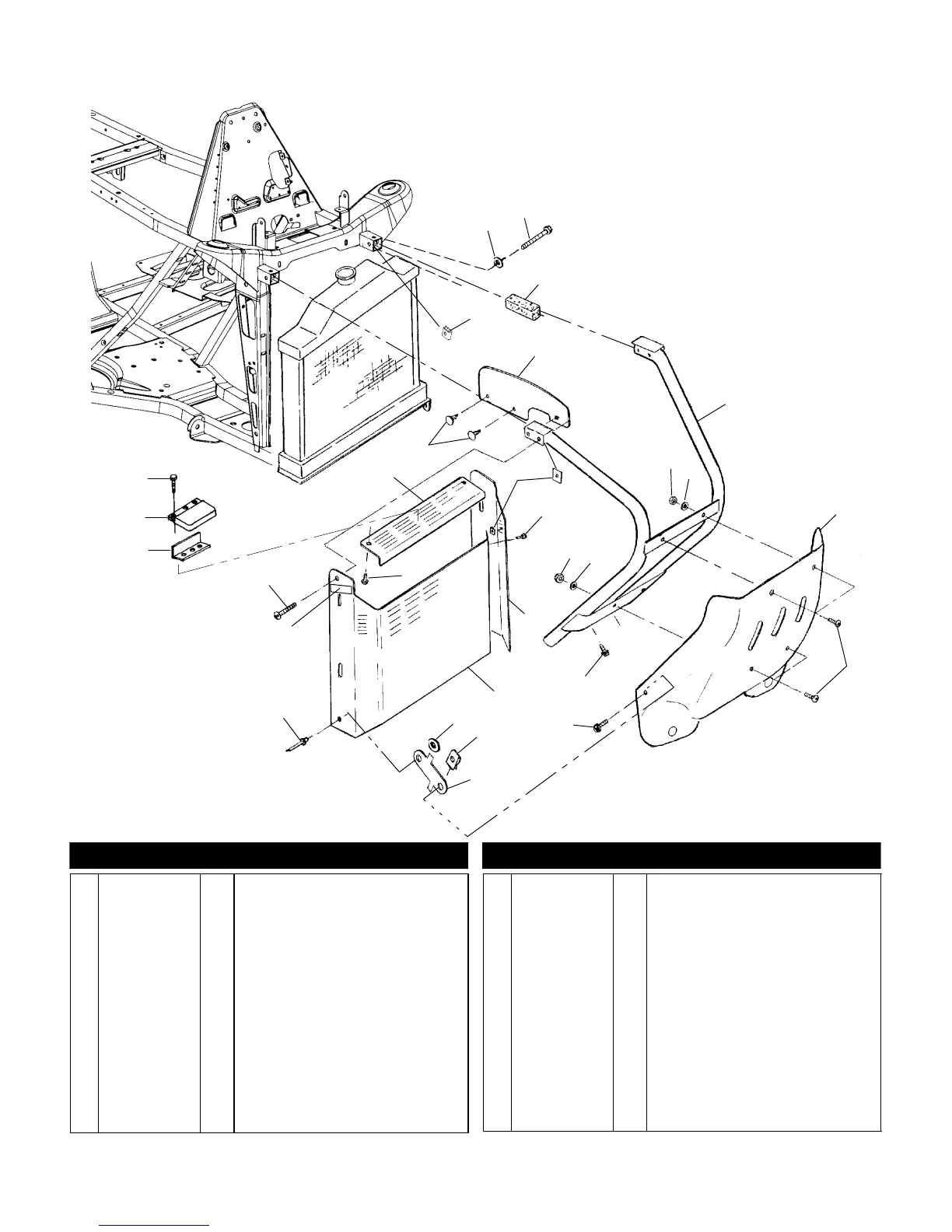

FRONT BUMPER and SHIELDS
Scrambler 500 A00BG50AA
2
1
3
5
7
6
9
17
15
20 13
19
21
8
8
11
7
13
12
4
18
11
11
16
23
24
25
10
14
22
Ref. Part No . Qty. Description Ref. Part No. Qty. Description
1 7558402 2 Washer, Flat
2 7512329 2 Bolt
3 5811675 1 Plug, Frame
4 7547071 2 U-Nut
5 5850141 2 Shield, Deflector
6 1012773-067 1 Bumper, Front
7 7542122 4 Nut, Nylok
8 7555859 4 Washer, Flat
9 5432378-070 1 Plate, Skid, Bumper
10 7517264 4 Screw
11 7517561 7 Screw
12 5242694-067 2 Bracket, Radiator Shield
13 7547085 7 Nut, U-Type
14 7558201 2 Washer, Flat
15 5242997-067 1 Shield, Radiator Side, RH
16 7515399 2 Screw
17 5242996-067 1 Shield, Radiator Side, LH
18 7512252 2 Screw
19 7670088 4 Clip, Dart
20 5242683-067 1 Shield, Upper Radiator
21 2670134 2 Reflector, Amber
22 7621467 2 Rivet
23 5131036 1 Heat Sink
24 4060173 1 Regulator, Rectifier
25 7512018 3 Screw
9/99
