Polaris SCRAMBLER 500 2000 User Manual

B3

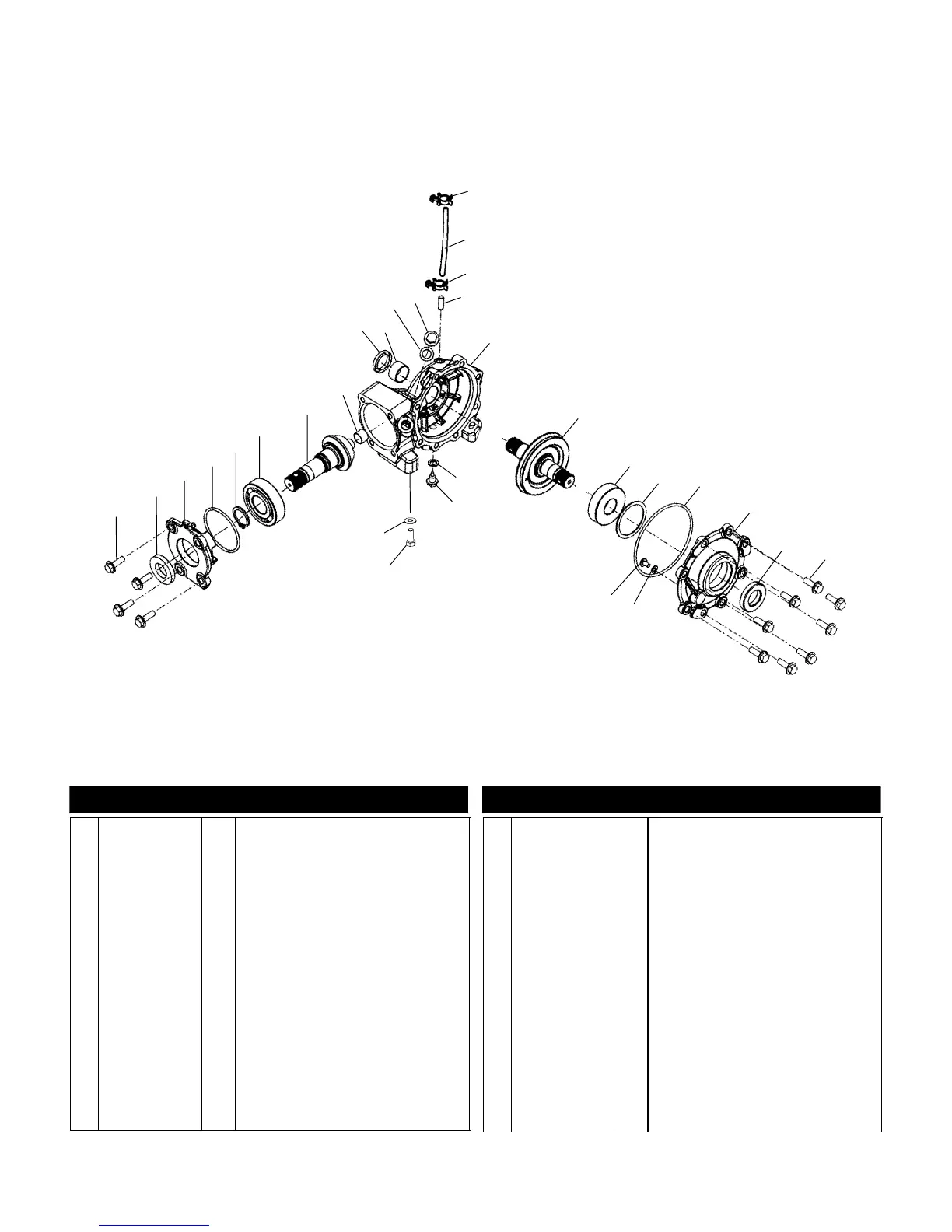

FRONT HOUSING
Scrambler 500 A00BG50AA
1
22
21
20
19
18
17
12
11
9
8
10
7
6
5
4
3
26
25
24
23
1
2
2
16
13
14
15
28
27
Ref. Part No . Qty. Description Ref. Part No. Qty. Description
1341276 1 Asm., Front Gearcase (Incl.
1-12,16-25)(If built before 7/01/99)
1 3233252 12 Screw
2 3233248 2 Seal
3 3233701 1 Cover, Input, Front Housing
4 3233700 1 O-Ring
5 3233699 1 Ring, Retaining
6 3233589 1 Bearing, Ball
7 3233698 1 Pinion, Input
8 3233541 1 Bushing
9 3233319 1 Seal
10 3233697 1 Bushing
11 3233324 1 Washer
12 3233711 1 Plug, Oil Fill
13 7080409 1 Clamp, Wire Routing
14 8450003-1525 AR Line, Fuel
15 7080307 1 Clamp, Hose
16 3233524 1 Tube, Vent
17 3233696 1 Gearcase
18 3233710
3233694
3233695
1
1
1
SubAsm., Output Shaft, Front Housing
Shaft, Output
Gear, 29T
19 3233020 1 Bearing
20 3233554 AR Shim
21 3233693 1 O-Ring
22 3233692 1 Cover, Output, Front Housing
23 3233583 AR Shim
24 3233702 1 Button, Thrust
25 3233254 1 Washer, Plug
26 3233253 1 Plug, Drain
27 7512492 4 Screw
28 7552603 4 Washer, Spring Lock
9/99
