Polaris SCRAMBLER 500 2000 User Manual

B4

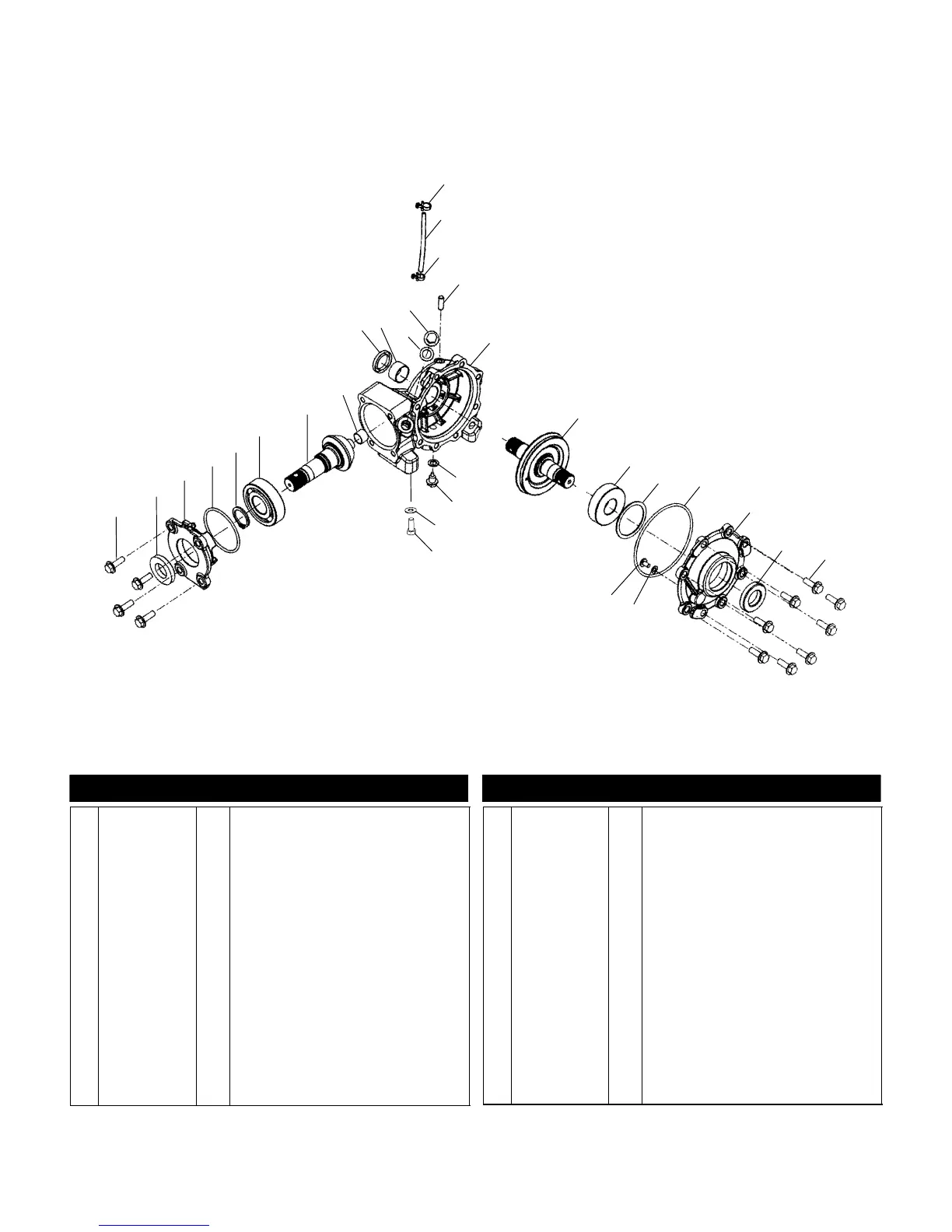

FRONT HOUSING
Scrambler 500 A00BG50A A
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
2
1
Ref. Part No . Qty. Description Ref. Part No. Qty. Description
1341323 1 Asm., Front Gearcase (Incl. 1-12,16-26)
(Units built after 7/0199)
1 3233252 12 Screw
2 3233248 2 Seal
3 3233701 1 Cover, Input, Front Housing
4 3233700 1 O-Ring
5 3233699 1 Ring, Retaining
6 3233589 1 Bearing
7 3233726 1 Pinion, Input, 14T
8 3233541 1 Bushing
9 3233319 1 Seal, Oil
10 3233697 1 Bushing
11 3233324 1 Washer
12 3233711 1 Plug
13 7080409 1 Clamp
14 8450003-1525 AR Fuel Line
15 7080307 1 Clamp, Hose
16 3233524 1 Tube, Vent
17 3233696 1 Gearcase, Front Housing
18 3233725 1 Shaft, Output, 29T
19 3233020 1 Bearing, Ball
20 3233554 AR Shim
21 3233693 1 O-Ring
22 3233724 1 Cover, Output, Front Housing
23 3233583 AR Shim
24 3233582 1 Button, Thrust
25 3233254 1 Washer
26 3233253 1 Plug, Drain
27 7552603 4 Washer, Lock
28 7512492 4 Screw
5/99
