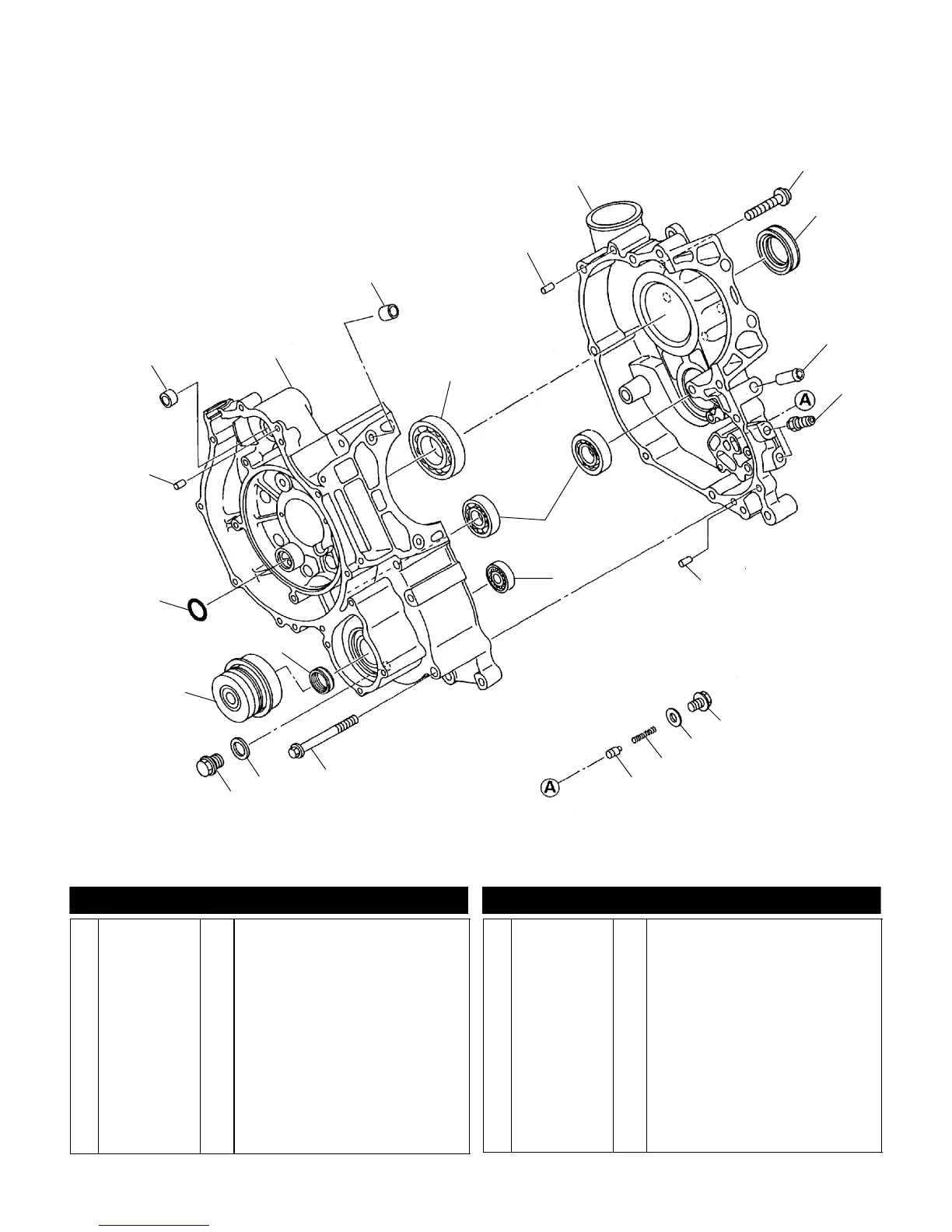

D4
CRANKCASE
Scrambler 500 A00BG50AA
2
4
10
11
2
19
20
1
22
7
5
16
3
18
17
9
15
14
12
13
21
6
5
8
Ref. Part No . Qty. Description Ref. Part No. Qty. Description
1 3083669 1 Bushing, Starter
2 3085808 1 Asm., Crankcase
(Incl. 1,4,5,7,8,10,11,16,19,20,22)
3 3084838 2 Pin, Straight
4 3080676 1 Bearing, Ball
5 3084840 2 Pin, Dowel
6 3084205 3 Screw and Washer
7 3084839 1 Seal, Oil
8 3085525 1 Pipe, Air Breather
9 3084842 2 Union
10 3084834 2 Bearing, Ball
11 3084835 1 Bearing, Ball
12 3084845 1 Plug
13 3084846 1 Gasket, Aluminum
14 3084844 1 Spring, Valve, One Way
15 3086810 1 Valve, One Way
16 3084841 10 Bolt, Flange
17 3082956 1 Gasket
18 3083453 1 Plug
19 3084837 1 Seal, Mechanical
20 3084836 1 Seal, Oil
21 3084847 1 O-Ring
22 3080103 2 Pin, Dowel
5/99
