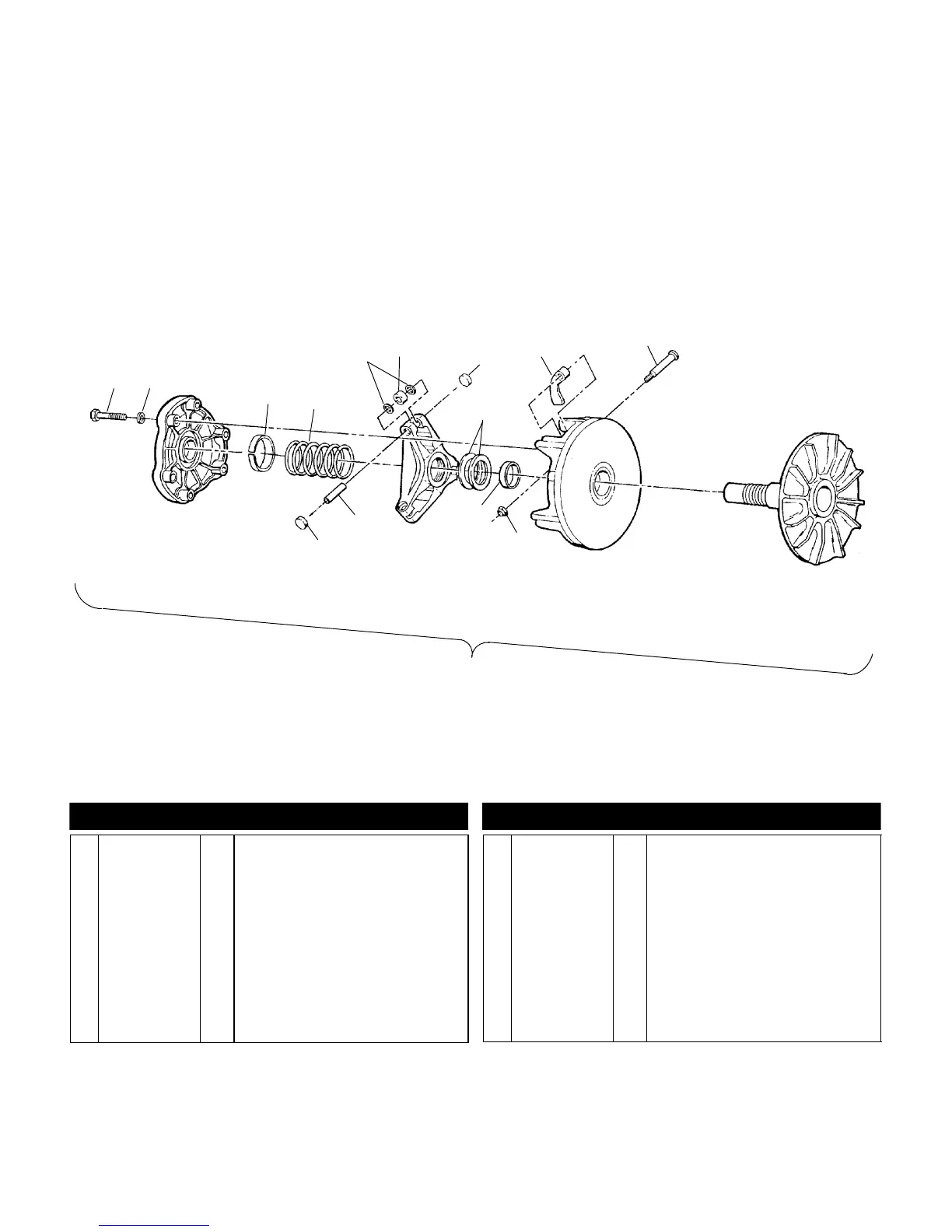

B14
DRIVE CLUTCH
Scrambler 500 A00BG50AA
14
1
2
3
4
7
13
5
6
7
8
12
11
9
10
Ref. Part No . Qty. Description Ref. Part No. Qty. Description
1 7512176 6 Bolt
2 7552801 6 Washer, Spring Lock
3 3576510 1 Cover, Bearing
4 7041157 1 Clutch, Spring
5 5430945 6 Washer, Multilube
6 1321457 3 Roller and Bushing
7 5431936 6 Button, Clutch, Stemless
8 5210752
5242981
5210753
5210754
AR
AR
AR
AR
Spacer (.020)
Spacer (.025)
Spacer (.032)
Spacer (.050)
9 5630710 3 Weight, Shift (10-WH)
10 7512266 3 Bolt, Shoulder
11 7541906 3 Nut, FLEXLOC
12 3576504 1 Bearing, Moveable, 1/2”
13 5020422 3 Pin, Roller
14 1321632 1 Asm., Drive Clutch, ATV-06
(Incl. All Less 4,9)
5/99
