Polaris SCRAMBLER 500 2000 User Manual

C1

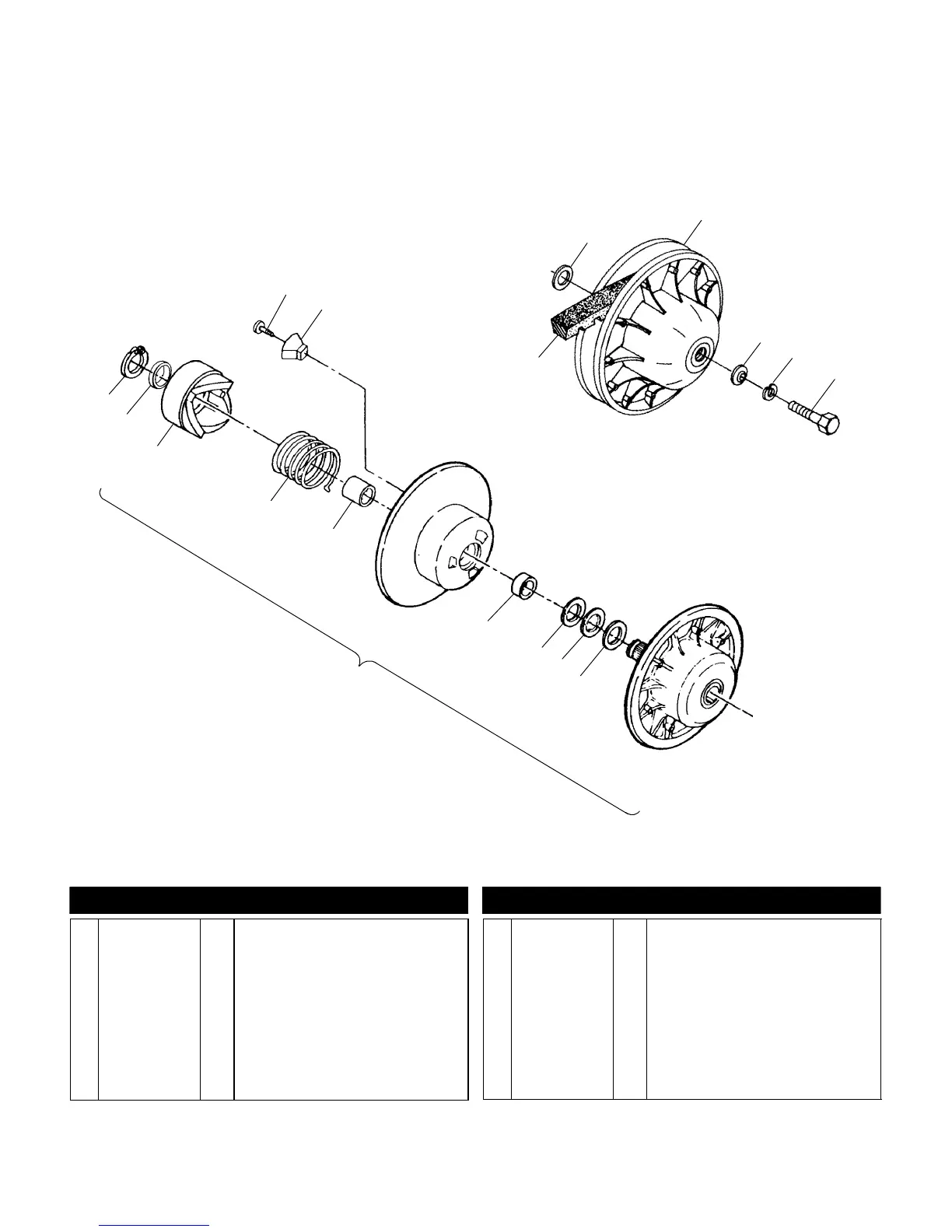

DRIVEN CLUTCH
Scrambler 500 A00BG50AA
6
2
3
4
5
7
10
11
12
13
15
16
17
2
1
9
14
8
Ref. Part No . Qty. Description Ref. Part No. Qty. Description
1 7556120 AR Bushing
2 1321798 1 Asm., Driven Clutch (Incl. 7-17)
3 5220646 1 Washer, Domed
4 7552901 1 Washer, Spring Lock
5 7515384 1 Bolt
6 3211077 1 Belt, Drive
7 7555898 AR W asher (.020)
8 7556076 AR W asher (.025)
9 7556804 AR W asher
10 3576504 1 Bearing, Moveable, 1/2”
11 3576511 1 Bearing, Moveable, 1”
12 7041499 1 Spring, Clutch
13 5131446 1 Ramp, Stationary
14 5210752 1 Spacer
15 7710448 1 Ring, Retaining
16 7511854 3 Bolt
17 5430766 3 Button, Ramp
5/99
