D7

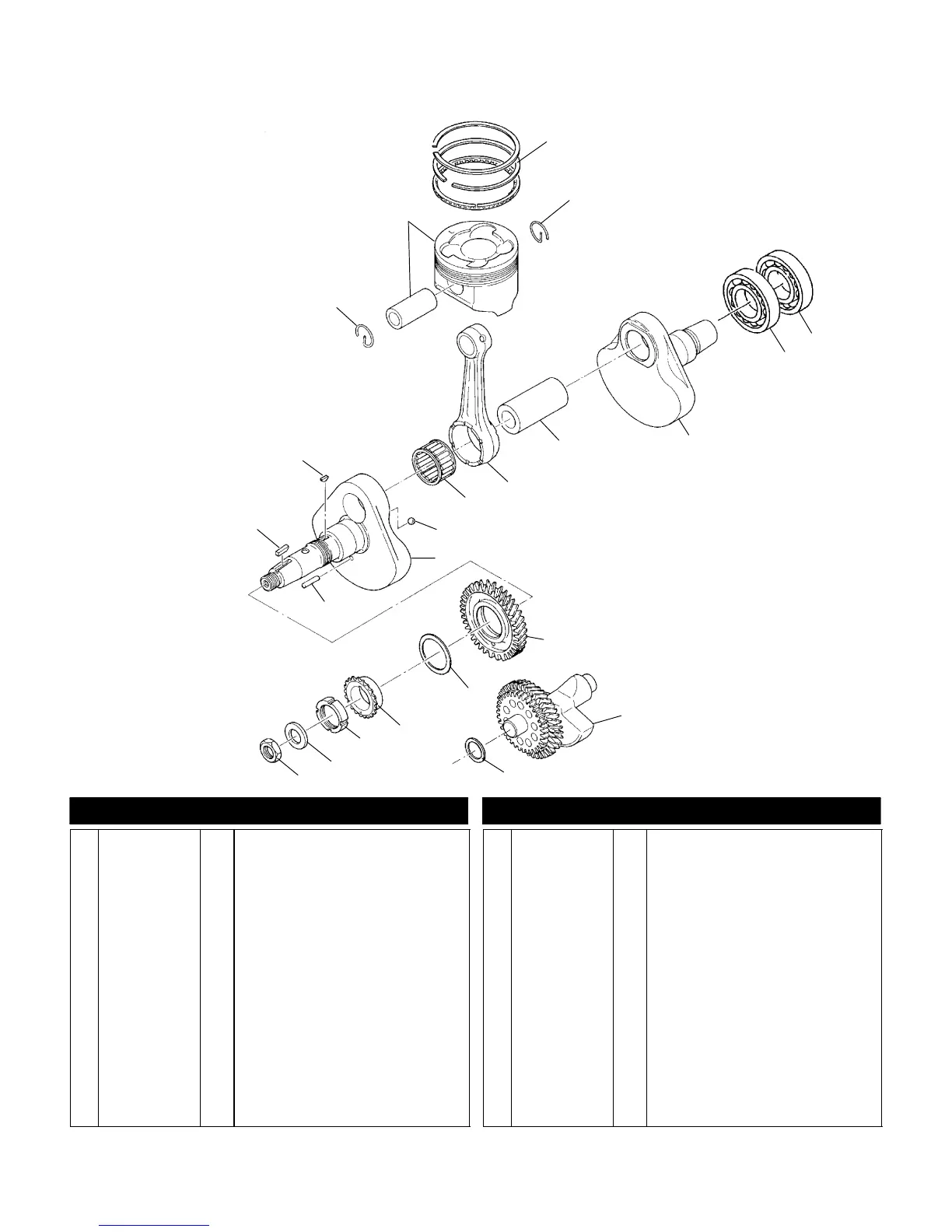

CRANKSHAFT and PISTON
Scrambler 500 A00BG50AA
20
21
7
11
15
13
6
9
19
14
10
18
8
4
12
1
16
22
17
2
3
1
5
Ref. Part No . Qty. Description Ref. Part No. Qty. Description
1 3085534 2 Clip
2 3085866
3085867
3085868
1
1
1
Asm., Piston Set (Std) (Incl. 1)
Asm., Piston Set (0.25 O/S) (Incl. 1)
Asm., Piston Set (0.50 O/S) (Incl. 1)
3 3085379
3085380
3085381
1
1
1
Piston Ring Set (Std)
Piston Ring Set (0.25 O/S)
Piston Ring Set (0.50 O/S)
4 3080676 1 Bearing
5 3085815 1 Bearing, Ball
6 3085812 1 Crankshaft 2
7 3085341 1 Pin, Crank
8 3085813 1 Rod, Connecting
9 3085400 1 Bearing, End, Large
10 3085024 1 Ball, Steel
11 3085861
3085945
1
1
Asm., Crankshaft (Incl. 4,5-12,20)
Crankshaft 1
12 3085852 1 Gear 1, Balancer
13 3086837 1 Shaft, Balancer
14 3084895
3084896
3084897
1
1
1
Spacer (0.8)
Spacer (1.0)
Spacer (1.2)
15 3240088
3084892
3084893
3084894
1
1
1
1
Spacer (0.6)
Spacer (0.8)
Spacer (1.0)
Spacer (1.2)
16 3084882 1 Sprocket 1
17 3085528 1 Nut, Slit
18 3083904 1 Washer
19 3083905 1 Nut, Lock
20 3085346 1 Pin, Dowel
21 3081447 1 Key
22 3240168 1 Key, Woodruff
5/99
