Polaris SCRAMBLER 500 2000 User Manual

A8

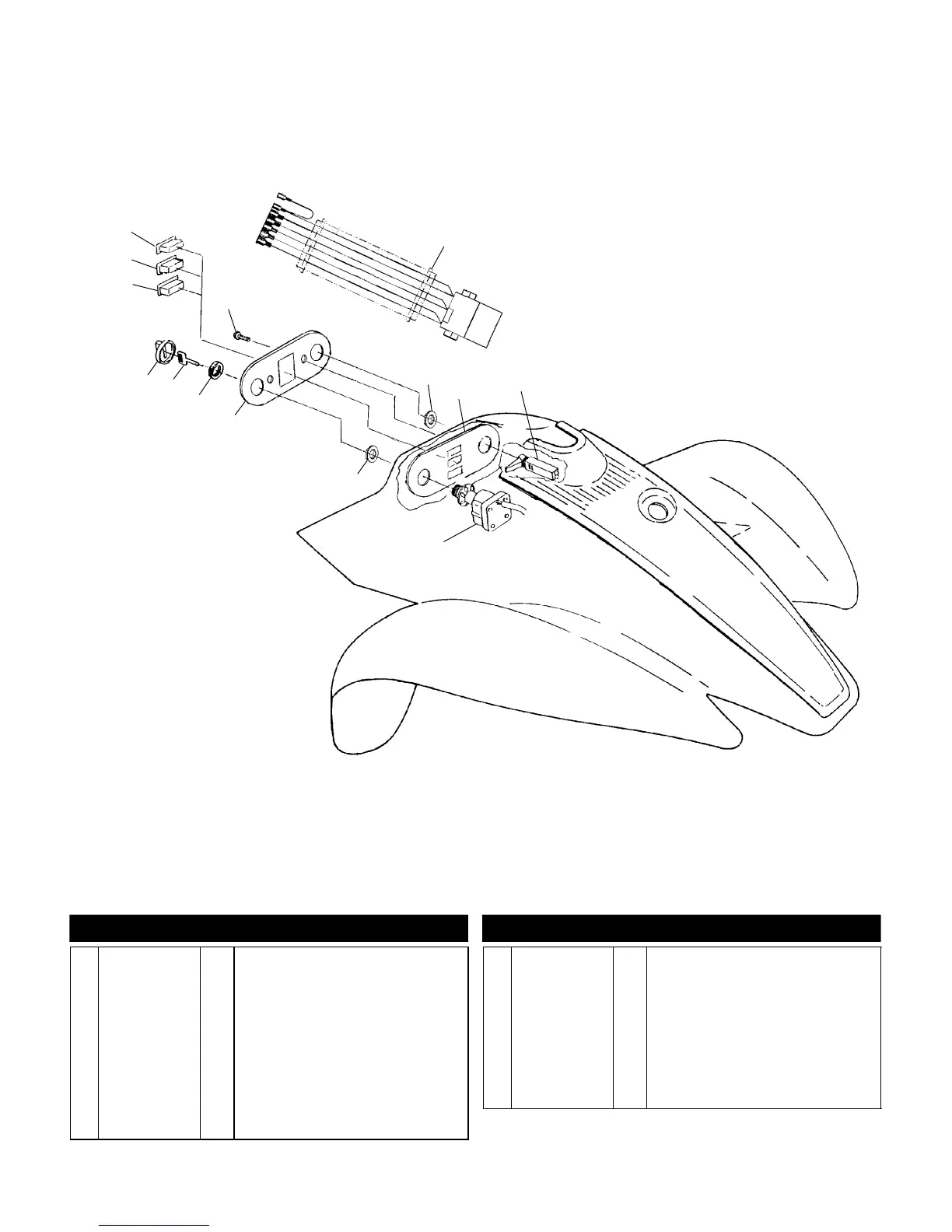

CONTROL PANEL
Scrambler 500 A00BG50AA
1
2
3
5
7
9
13
12
5
10
4
8
11
6
Ref. Part No . Qty. Description Ref. Part No. Qty. Description
1 5430967 1 Plug
2 4040054 1 Indicator, Neutral/Reverse
3 4040053 1 Indicator, Hot Temperature
4 5433534 1 Cover, Key
5 4110264
4010278
4010321
1
1
1
Switch, Ignition (Incl. Key)
Key, Blank, Series 2000, 6700, 6800.
NOTE: Spare key must be cut from
existing key.
Key, Blank, Series 2200, 2300, 2700,
2800. NOTE: Spare key must be cut
from existing key.
6 5433733 1 Nut, Ignition
7 5431976 1 Panel, Control, Outer
8 5432090 1 Nut, Ignition Switch
9 7512026 2 Screw
10 2460723 1 Harness, Indicator
11 7080229 1 Nut, Choke Slide
12 5431975 1 Panel, Control, Inner
13 7080746 1 Cable, Choke
10/00
