B13

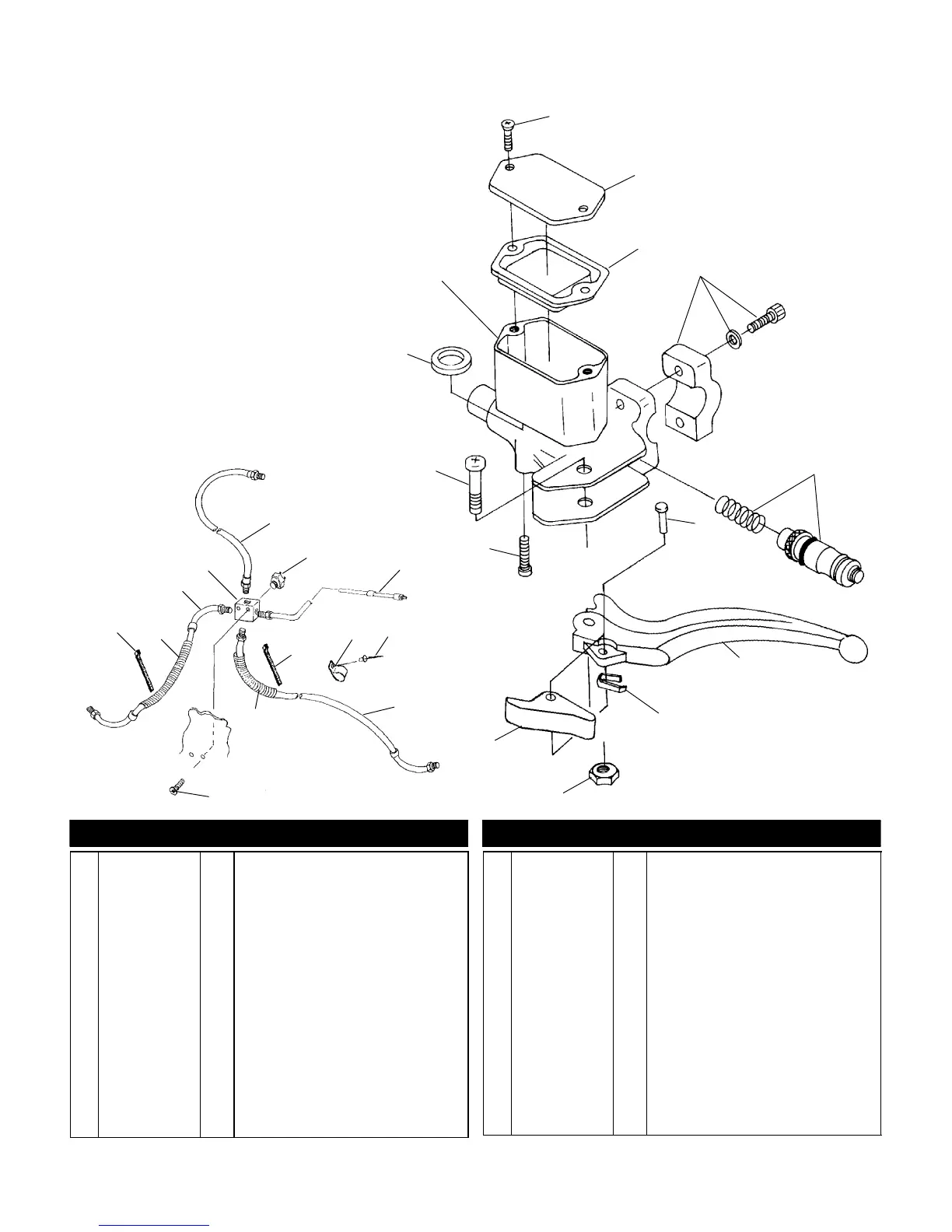

CONTROLS - MASTER CYLINDER/BRAKE LINE
Scrambler 500 A00BG50AA
3
4
6
10
7
5
15
17
21
25
26
16
23
20
13
2
19
12
14
1
8
9
11
18
24
22
18
Ref. Part No . Qty. Description Ref. Part No. Qty. Description
1 2200809
2050073
1
1
Kit - Master Cylinder Reservoir
(Incl. 2,3,4,14)
Asm., Master Cylinder (Incl. 1-14)
2 1930797 2 Screw, Cap
3 1930796 1 Cap, Reservoir
4 1930795 1 Diaphragm
5 2200808 1 Kit - Clamp
6 1930799 1 Asm., Master Cylinder Piston
7 1930804 1 Rivet
8 2201034 1 Kit - Brake Lever w/Parking Brake
Latch (Incl. 7, 9,11)
9 -- -- -- -- -- -- -- 1 Spring, Flat
10 1930806 1 Nut
11 2201090 1 Kit - Park Brake Lever (Incl. 7,9)
12 1930792 2 Screw
13 1930805 1 Screw
14 -- -- -- -- -- -- -- 1 Ring, Square
15 1930762 1 Line, Brake, Upper w/Fittings
16 4110164 1 Switch
17 1930873 1 Line, Brake, Hand, Rear
18 7080138 8 Cable Tie
19 7080539 1 Clamp
20 7621462 1 Rivet, Pop
21 1930809 1 Line, Brake, Left Front w/Fittings
22 8360031-30 1 Conduit
23 7512024 2 Screw
24 8360011-38 1 Tubing, Convoluted
25 1930812 1 Line, Brake, Right Front w/Fittings
26 7052237 1 Fitting, Cross
5/99
To Next Page
