E1

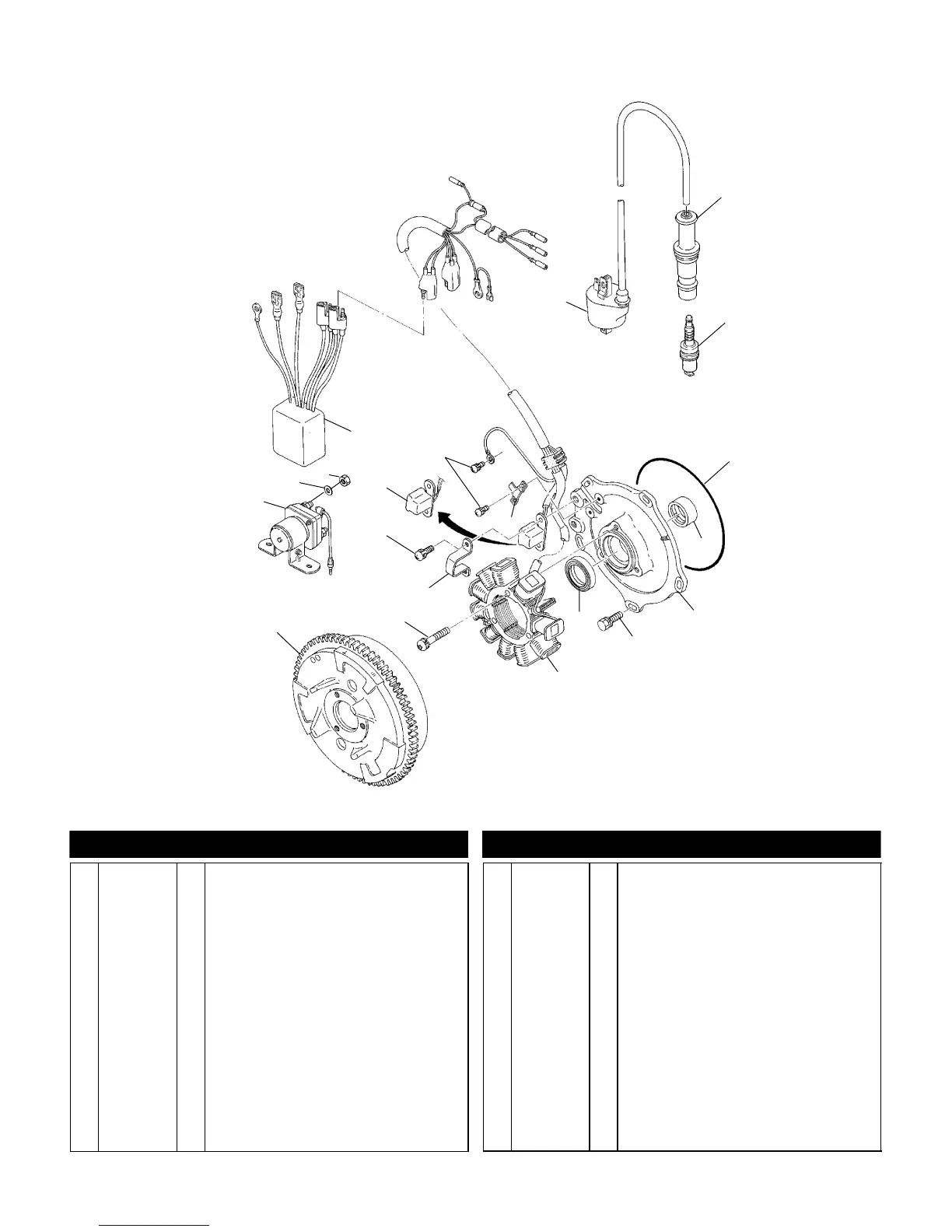

MAGNETO
Scrambler 500 A00BG50AA
20
6
5
8
9
10
11
12
13
14
4
7
1
2
16
19
3
15
17
18
Ref. Part No . Qty. Description Ref. Part No. Qty. Description
1 3084690
3084979
1
1
Asm., Ignition Coil (Incl. 1,2)
Coil, Ignition
2 3084980 1 Cap, Spark Plug
3 3084997 1 Plug, Spark
4 3084978 1 O-Ring
5 3084972 1 Metal, Bearing
6 3086820
3085560
3086980
3086981
1
1
1
1
Asm., Plate (Incl. 5,6,8-12,14,15)
(Up to S#00-04730)
Plate (Up to S#00-04730)
Asm., Plate (Incl. 5,6,8-12,14,15)
(S#00-04730 & after)
Plate (S#00-04730 & after)
7 3081657 5 Bolt and Washer
8 3084973 1 Seal, Oil
9 3086821
3086984
1
1
Stator (Incl. 13)(Up to S#00-04730)
Stator (Incl. 13)(S#00-04730 & after)
10 3085563
3086985
3
3
Screw and Washer (Up to S#00-04730)
Screw and Washer (S#00-04730 & after)
11 3085554 1 Band, Pulse
12 3084976 2 Screw and Washer
13 3085360 1 Coil, Pulser
14 3084977 1 Clamp
15 3081256 3 Screw and Washer
16 3085639
3086982
1
1
CDI System (Up to S#00-04730)
CDI System (S#00-04730 & after)
17 3083073 2 Nut
18 3080077 2 Washer, Spring
19 3085521 1 Switch, Magnetic
20 3086819
3086983
1
1
Flywheel w/Ring Gear (Up to S#00-04730)
Flywheel w/Ring Gear (S#00-04730 & after)
12/99
