Polaris SCRAMBLER 500 2000 User Manual

A13

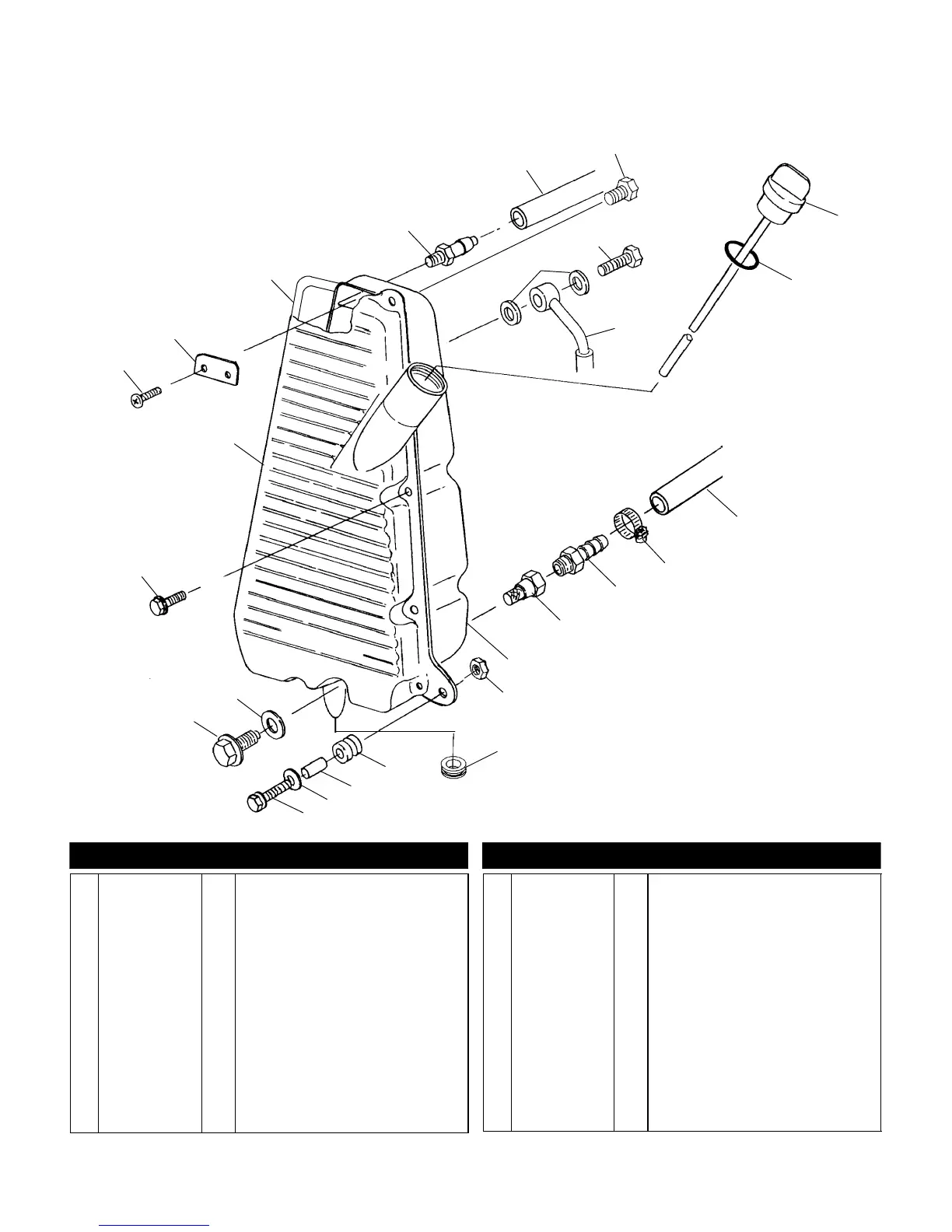

OIL TANK
Scrambler 500 A00BG50AA
25
1
2
8
7
9
10
11
12
13
14
15
16
20
22
23
24
21
5
3
18
4
6
19
6
17
Ref. Part No . Qty. Description Ref. Part No. Qty. Description
1 7511848 2 Screw
2 5211523 1 Plate, Vent, Oil Tank
3 5830053 1 Gasket, Oil Reservoir
4 7052163 1 Fitting
5 5411873 1 Hose, Breather
6 7051524 1 Plug
7 7517102 1 Bolt, Banjo
8 7555896 2 Washer, Copper
9 7052213 1 Tube, Banjo Return
10 5432289 1 Dipstick
11 5410889 1 O-Ring
12 5411036 AR Hose, Formed
13 7080474 1 Clamp, Hose
14 7052106 1 Fitting, 1/4” to 3/8”
15 2530014 1 Screen, Oil Filter
16 5131785 1 Tank, Oil, LH
17 7542122 1 Nut, Nylok
18 5411042 1 Grommet
19 5410828 2 Grommet, Mounting, Reservoir
20 5333204 2 Bushing
21 7558301 2 Washer, Flat
22 7512130 2 Screw
23 5850135 1 Washer
24 7515158 9 Screw
25 5131255 1 Tank, Oil, RH
11/02
