B6

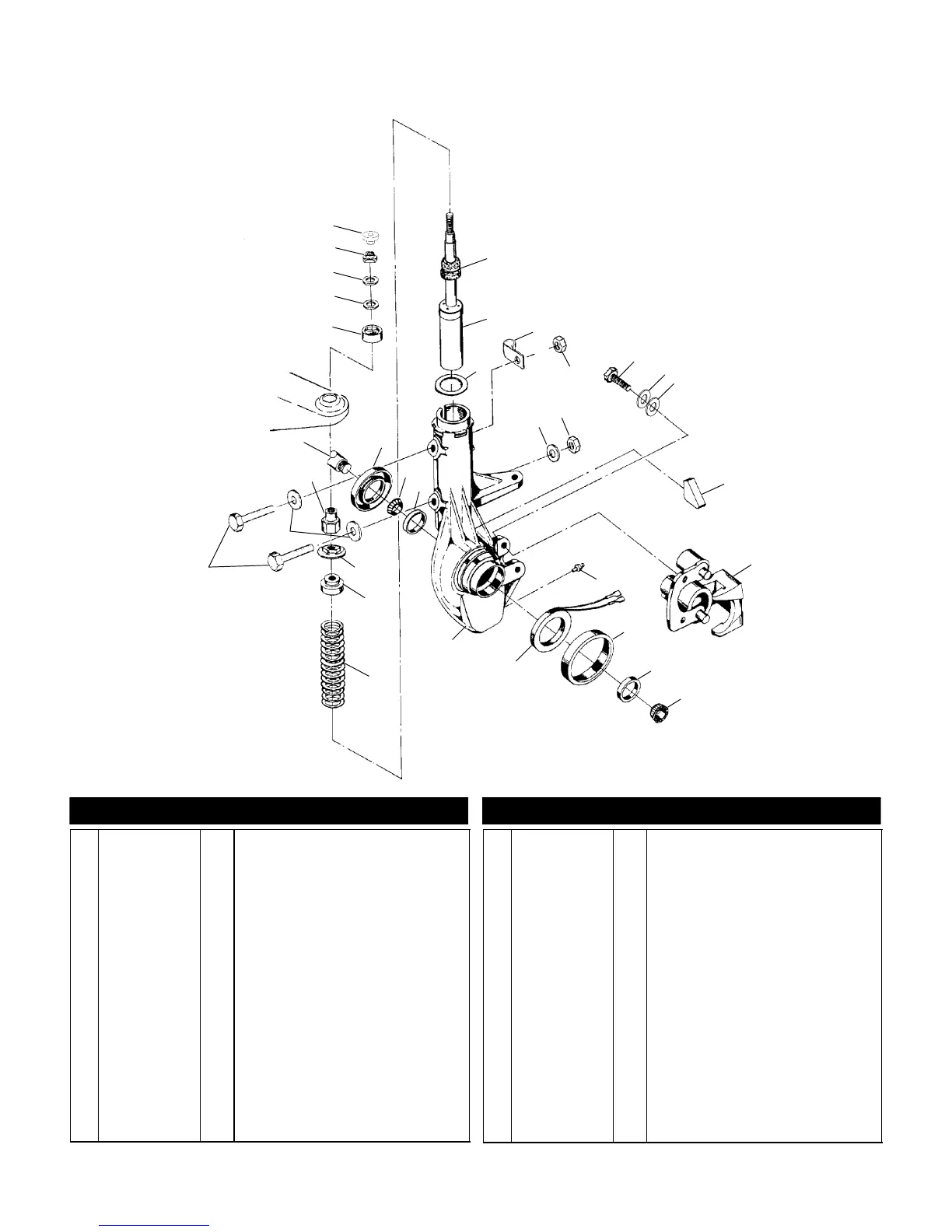

FRONT STRUT
Scrambler 500 A00BG50AA
1
2
3
4
8
5
6
9
11
12
13
15
16
14
17
18
19
21
8
20
23
24
25
26
27
11
12
22
10
8
5
7
28
Ref. Part No . Qty. Description Ref. Part No. Qty. Description
1 5411608 2 Bumper
2 7041762 2 Strut, Front
3 5211115 2 Washer
4 7080573 2 Clamp, Rubber Coated
5 7542303 4 Nut, FLEXLOC
6 7512365 4 Screw
7 7552901 4 Washer, Spring Lock
8 7558402 10 Washer, Flat
9 5810439 2 Retainer, Strut Casting Wire
10 -- -- -- -- -- -- -- 1 Asm., Front Brake Caliper, RH
(See Front Brake Pg. B8 for Details)
11 3554509 4 Bearing, Tapered Roller
12 3554507 4 Bearing, Taper ed Roller Cup
13 5222193 2 Sleeve, Hubstrut Seal
14 7080306 2 Fitting, Lubrication
15 2410133 2 Coil, Magnetic
16 2201311
2201312
1
1
Asm., Hubstrut, LH (Incl. 9,13-16)
Asm., Hubstrut, RH (Incl. 9,13-16)
17 7041603-067 2 Spring, Coil, Strut
18 5243364 2 Retainer , Spring
19 5432871 2 Ball, Pivot, Bottom
20 7515339 4 Bolt
21 5132062 2 Spacer
22 -- -- -- -- -- -- -- 1 Kit - Drive Shaft w/Sleeve (See CV
Joint - Neapco Pg. B5, Ref.12)
23 3610028 2 Seal, Hubstrut
24 5432872 2 Ball, Pivot, Top
25 5810291 2 Spacer, Rubber
26 7555749 2 Washer
27 7547104 2 Nut, Nylok
28 7052028 2 Grommet
3/00
