C4

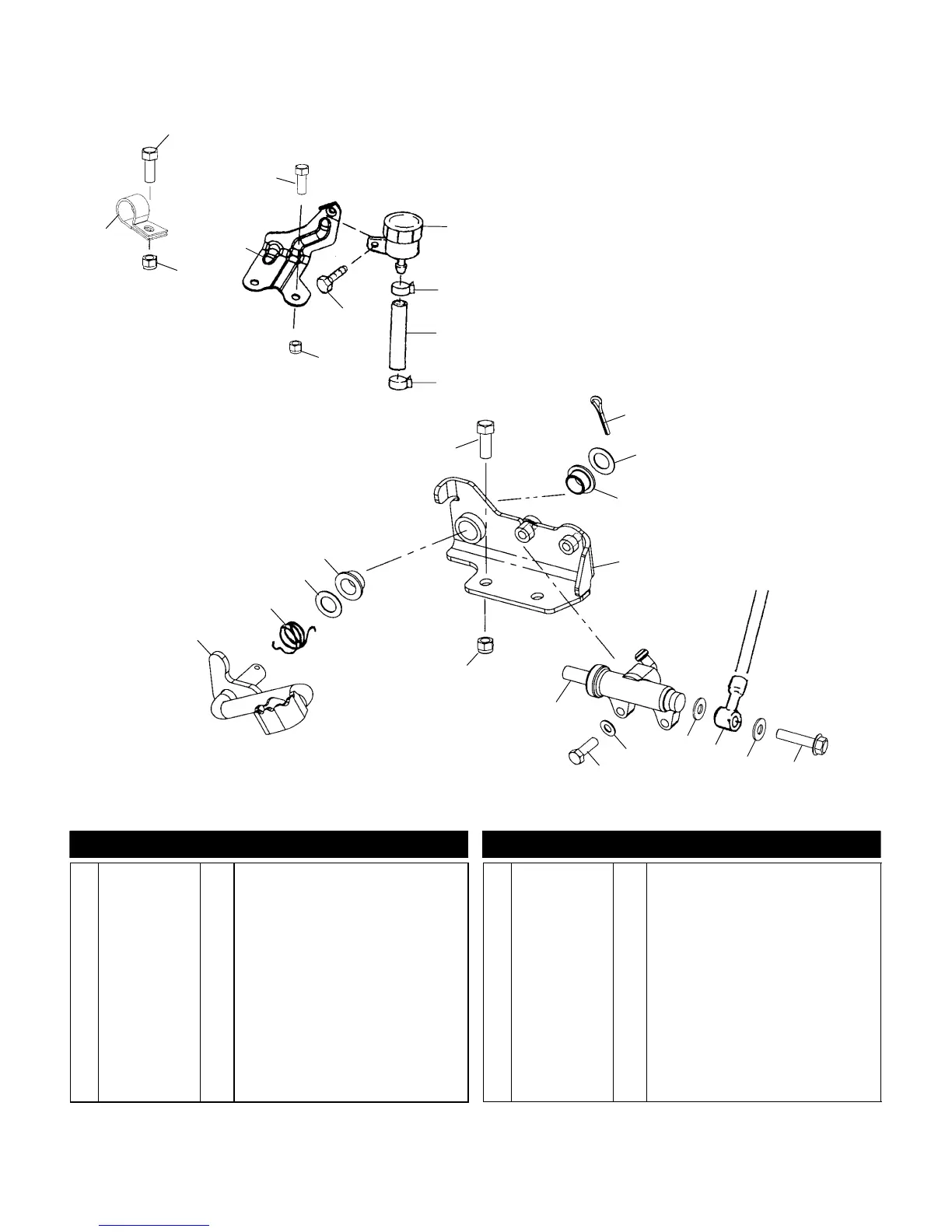

REAR BRAKE MASTER CYLINDER
Scrambler 500 A00BG50AA
6
18
20
15
2
13
10
12
11
1
7
8
5
3
22
19
17
4
14
21
6
11
12
15
9
16
2
4
Ref. Part No. Qty. Description Ref. Part No. Qty. Description
1 7080880 1 Clamp, Hose
2 7512113 3 Bolt
3 5244091-067 1 Bracket, Reservoir Mount
4 7542122 3 Nut, Nylok
5 7512208 1 Screw
6 7080003 2 Clamp, Red
7 1910404 1 Hose, Reservoir
8 1930854 1 Reservoir
9 7558301 4 Washer, Flat
10 7661401 1 Pin, Cotter
11 7555919 2 Washer
12 5431107 2 Bushing
13 1910375-067 1 Mount, Brake
14 1930674 1 Bolt, Banjo
15 5410988 2 Seal
16 -- -- -- -- -- -- -- 1 Line, Foot Brake, Rear (See Rear Cal-
iper Mounting Pg. C3, Ref. 6)
17 7512278 2 Screw
18 1910311 1 Asm., Foot Brake Master Cylinder
19 7542324 2 Nut, Nylok
20 1910377-067 1 Rod, Brake
21 7041750 1 Spring, Torsion
22 7512383 2 Screw
5/99
