Polaris SCRAMBLER 500 2000 User Manual

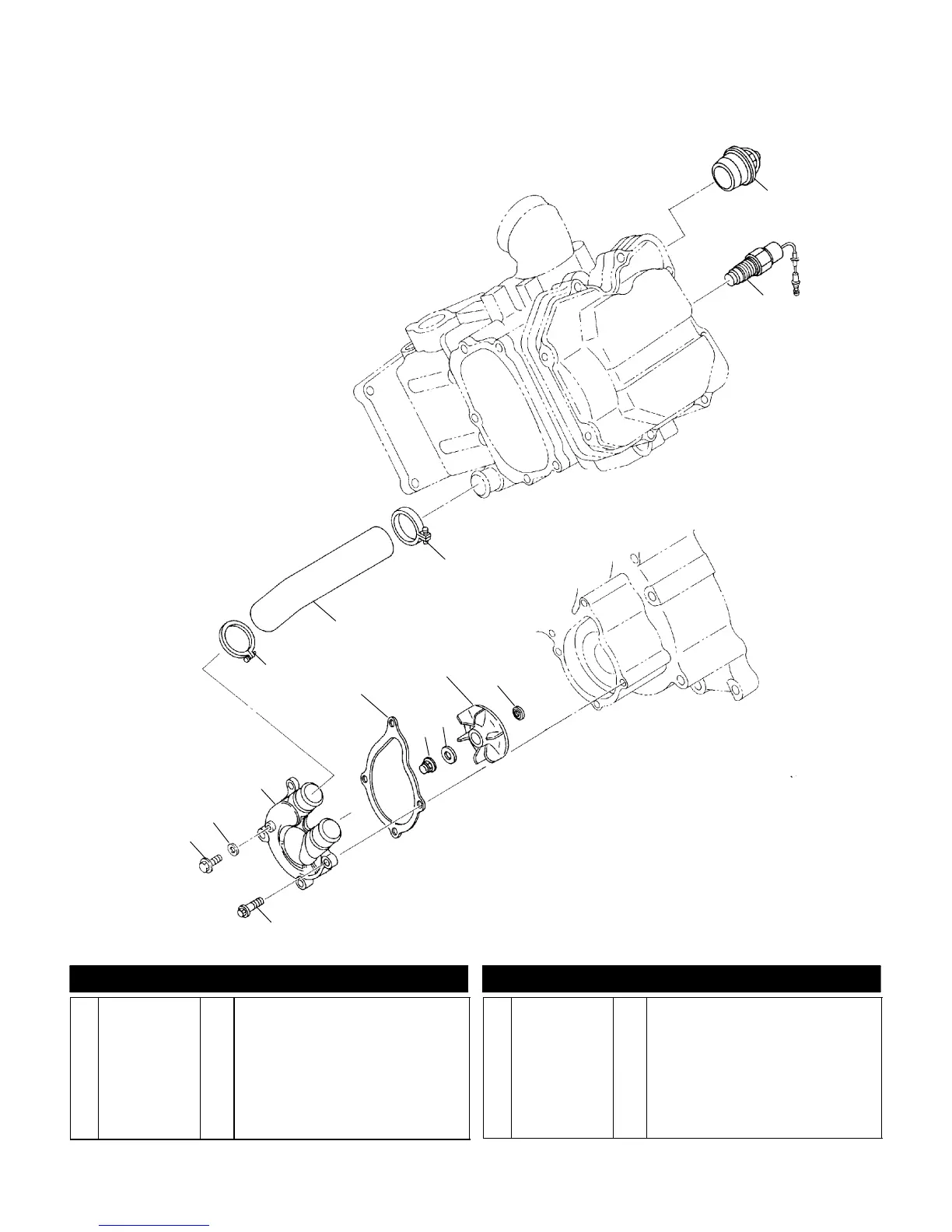

D12
WATER PUMP
Scrambler 500 A00BG50AA
11
7
8
3
3
2
1
9
12
13
4
10
6
5
Ref. Part No . Qty. Description Ref. Part No. Qty. Description
1 3084940 1 Thermostat
2 3085352 1 Switch, Thermostat
3 3084191 2 Clamp, Hose
4 3085857 1 Hose, Main
5 3085359 1 Bolt, Flange
6 3082758 1 Gasket, Aluminum
7 3085351 1 Cover, Water Pump
8 3086840 1 Gasket, Water Pump
9 3085077 1 Nut, Self Lock
10 3083138 1 Gasket, Aluminum
11 3084935 1 Impeller
12 3084942 1 Washer, Seal
13 3084877 4 Bolt, Flange
6/98
