Polaris SCRAMBLER 500 2000 - Front Brake Caliper

B8

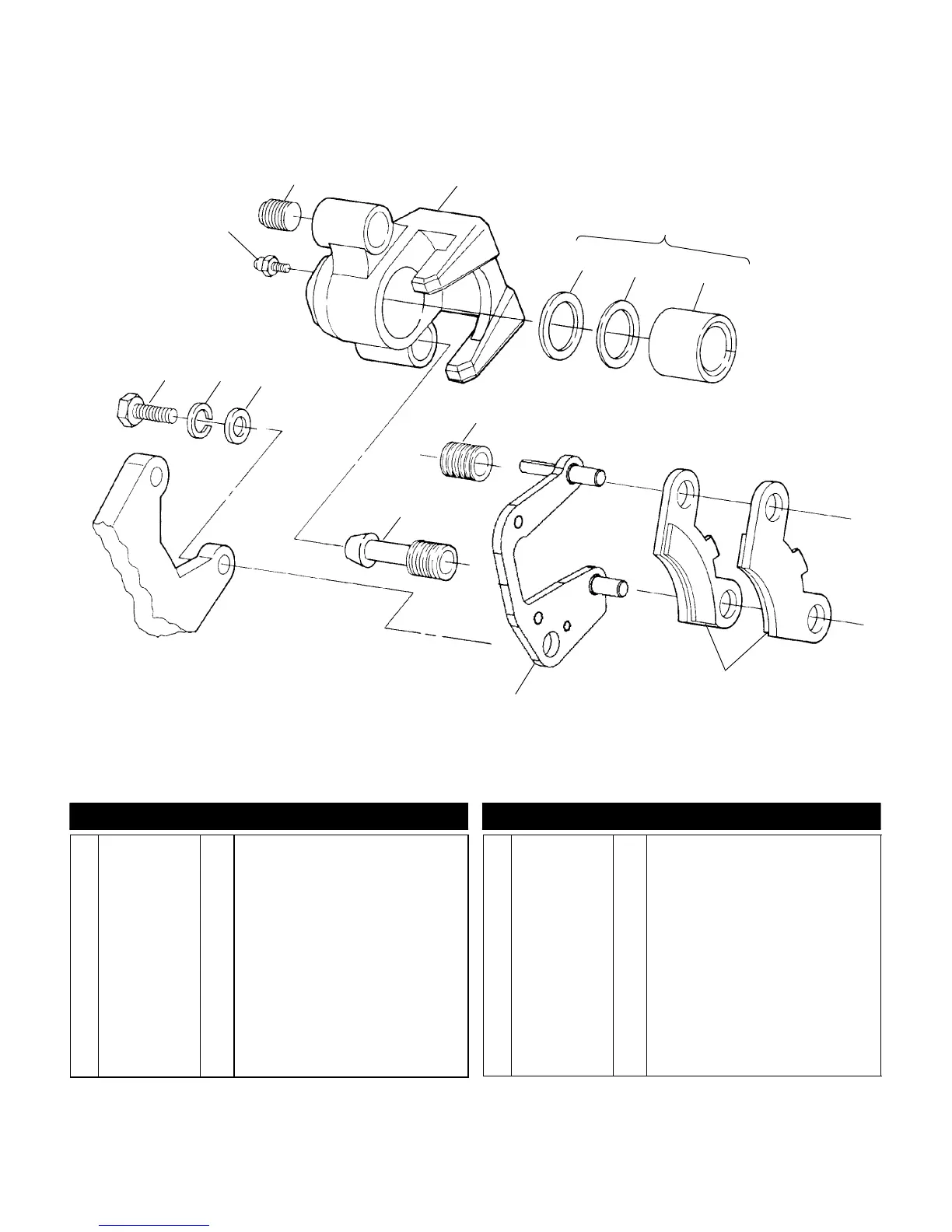

FRONT BRAKE
Scrambler 500 A00BG50AA
1
23
14
13
8
12
11
4
5
6
7
10
9
Ref. Part No . Qty. Description Ref. Part No. Qty. Description
1910271
1910264
1
1
Asm., Front Brake Caliper, LH
(Incl. 1-7)
Asm., Front Brake Caliper, RH
(Incl. 1-7)
1930642 1 Kit - Front Brake Boot (Incl. 8,12)
1 7080352 2 Screw, Bleeder
2 7515489 2 Screw, Socket Set
3 5131261
5131262
1
1
Caliper,Brake,LH
Caliper,Brake,RH
4 1930665 1 Kit - Piston and Seals (Incl. 5-7)
5 5410779 1 Ring, Square, Molded (.094)
6 5410780 1 Ring, Square, Molded (.103 x .134)
7 5132294 1 Piston, Brake, Long
8 5410494 1 Boot, Pin Seal
9 -- -- -- -- -- -- -- 4 Washer, Flat
(See Front Strut Pg. B6 Ref. 8)
10 -- -- -- -- -- -- -- 4 W asher, Lock
(See Front Strut Pg. B6 Ref. 7)
11 -- -- -- -- -- -- -- 4 Screw
(See Front Strut Pg. B6, Ref. 6)
12 5410495 1 Boot, Bushing
13 1910412 2 Mount, Caliper
14 2200901
2201149
2200465
1
1
1
Kit - Severe Duty Brake Pad, Front
(Complete set of 2 pads)
Kit - Brake Pad, Soft, Front
Kit - Brake Pad, General, Front
