Polaris SCRAMBLER 500 2000 - Recoil Starter

D11

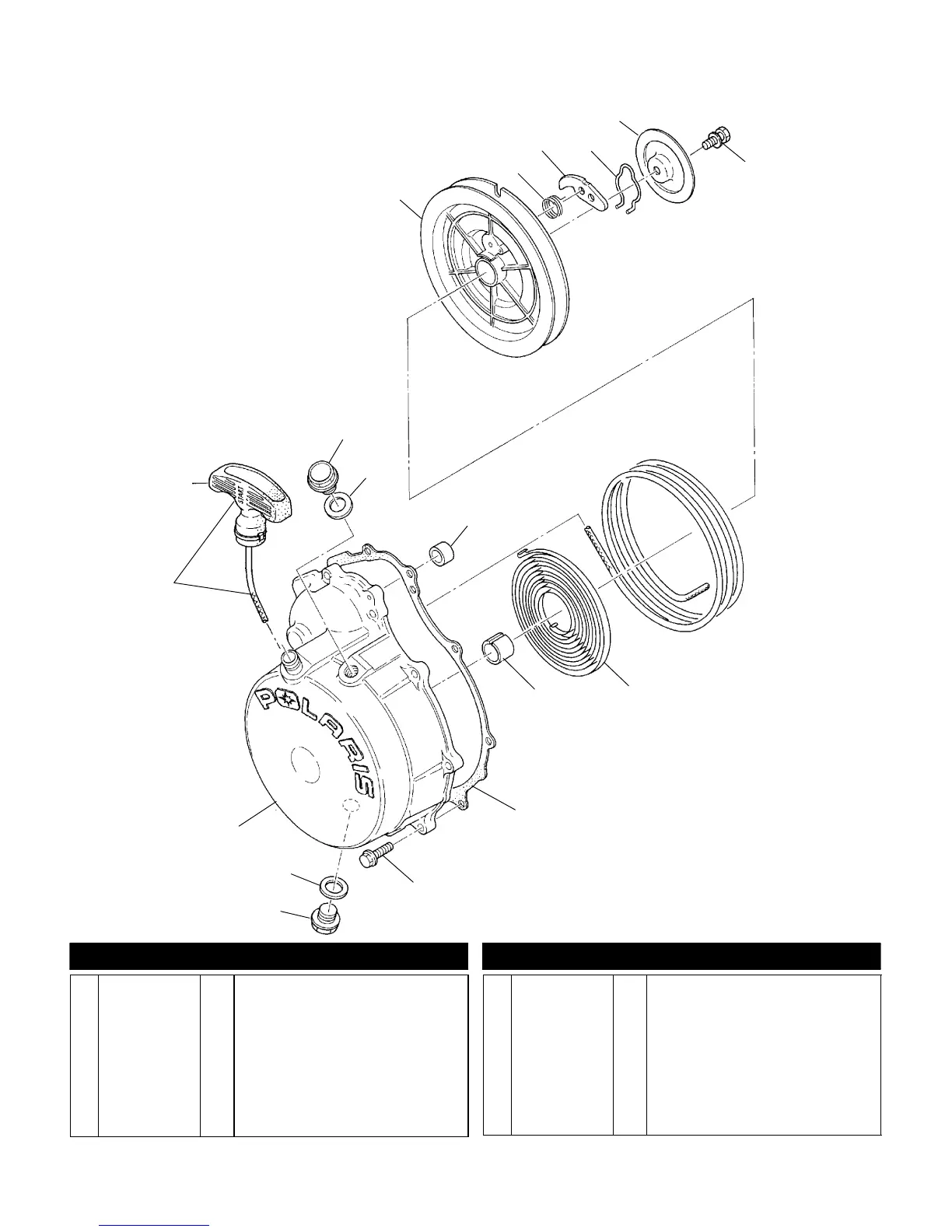

RECOIL STARTER
Scrambler 500 A00BG50AA
14
1
3
10
4
2
5
6
15
9
11
7
8
12
13
7
8
Ref. Part No . Qty. Description Ref. Part No. Qty. Description
1 3084822 1 Reel
2 3083463 1 Spring, Return
3 3083378 1 Ratchet
4 3083379 1 Spring, Friction
5 3084744 1 Plate, Friction
6 3085266 1 Bolt and Washer
7 3083453 2 Plug
8 3082956 2 Gasket
9 3083669 1 Bushing, Starter
10 3083185 1 Spring, Spiral
11 3084750 1 Bushing
12 3084933 1 Gasket, Recoil
13 3084877 9 Bolt, Flange
14 3085856
3085943
1
1
Asm., Recoil (Incl.1-6,9-11,14,15)
Starter Case (Incl. 11)
15 3085083 1 Asm., Rope
5/99
