Lift rangefinder assembly from the camera body as shown in Figure 4-13.

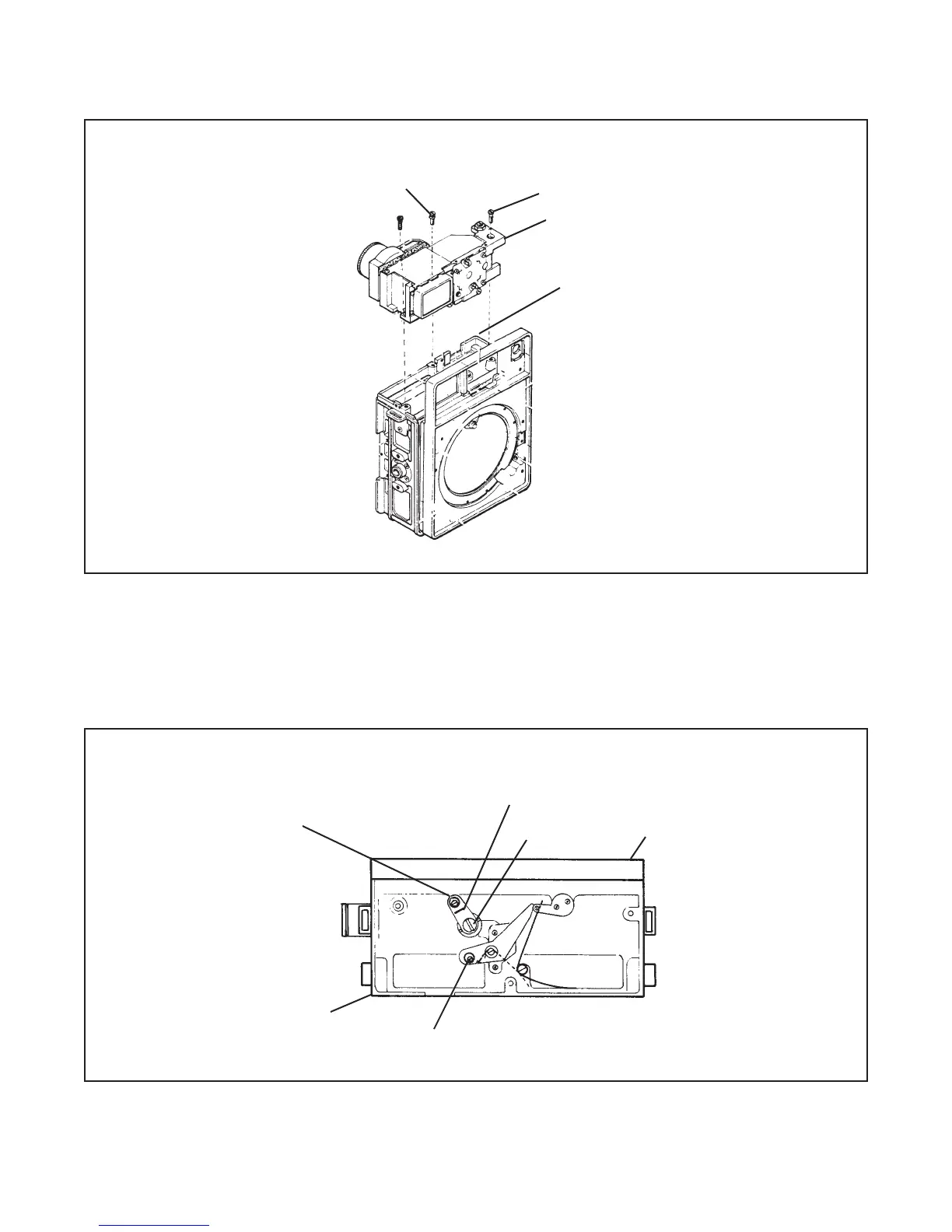

Figure 4-13. Removing rangefinder assembly from camera body
Note: Do not loosen the eccentric screws or the parallax relay lever screw, without
referring to instructions covering parallax adjustment in Section 5 (Figure 4-14).
Figure 4-14. Location of parallax eccentric adjustment screw
Anchor Screws
Screws (2)
Rangefinder Assembly
Camera Body
Camera Body
Range Eccentric Screw
Screw
Parallax Relay Lever
Camera Front Panel
Parallax Eccentric Screw
