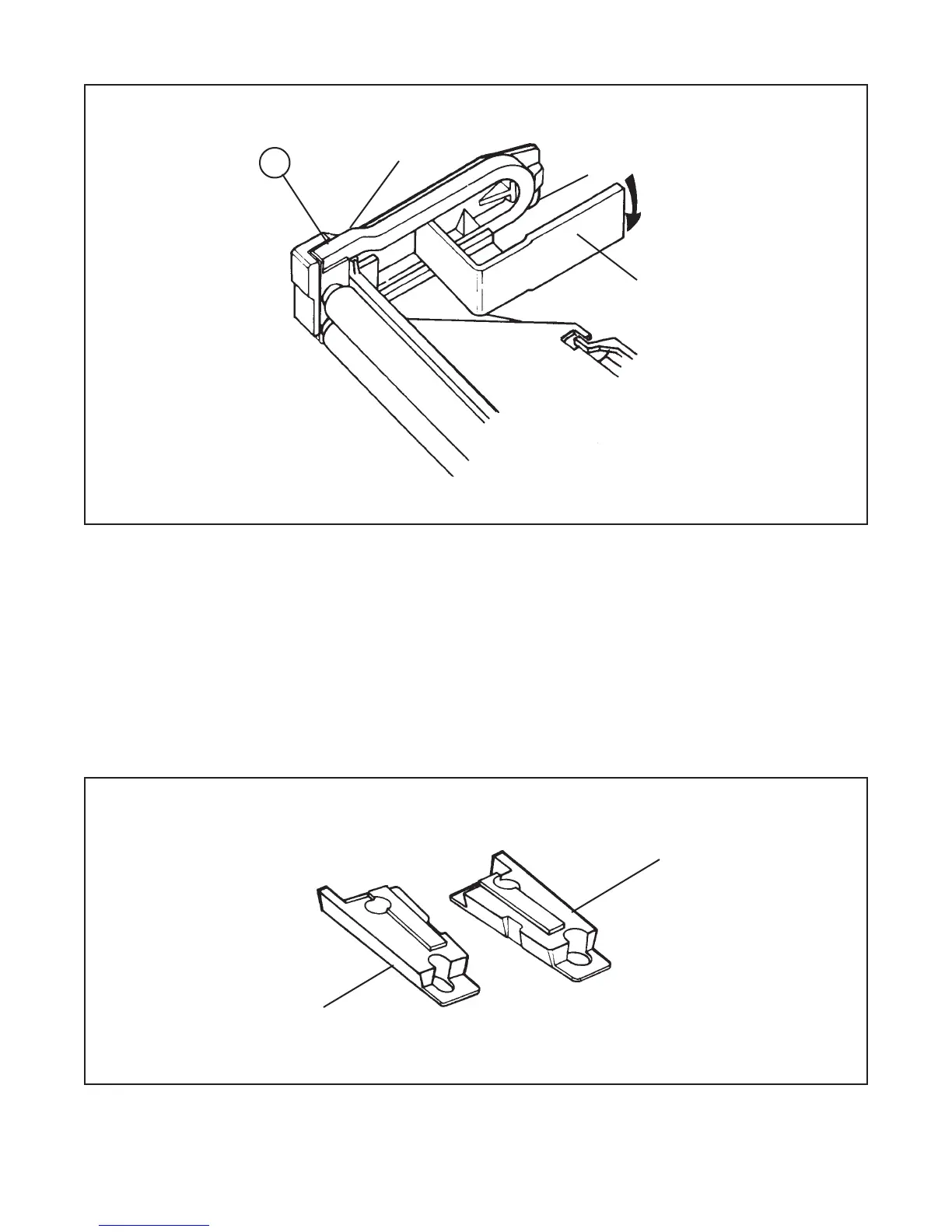

Figure 4-63. Removing spread system springs
5. Repeat the procedure for the other spring.
Note: Before withdrawing the rollers, note that the plastic bearing blocks that
support the ends of the rollers are dissimilar in both color and configuration.
Observe and note where each is located. Reassemble in same
position (Figure 4-64).
Figure 4-64. Roller Bearing Blocks
6. The rollers are supported by plastic bearing blocks which slide in dovetails in the
B
Spread
Pull
Rotate
Tool No. 11606
Left Side (White)
Right Side (Yellow)
