d. Pull a sample film.
e. If any light leak is found, locate its source and repair the film holder as necessary.
C. Bail Latch - Disassembly/Reassembly
1. The bail latch may be removed by gently spreading it at the door busings and pulling it free.
2. Replace the bail latch by inserting one end in the door busings and "popping" the other
end in the opposite bushing.
D. Film Holder Door - Disassembly/Reassembly (Figure 4-66)
1. Remove the mini-rollers and adapter frame as instructed.
2. Spread the pivot end of the door to free it from the film pack holder, and remove the door.
3. Install the door by spreading the pivot end and carefully slipping it onto the pivots.
The door will snap into place.
4. Replace the adapter frame and A-11 mini-rollers as instructed.
5. Test for light leaks as previously instructed.

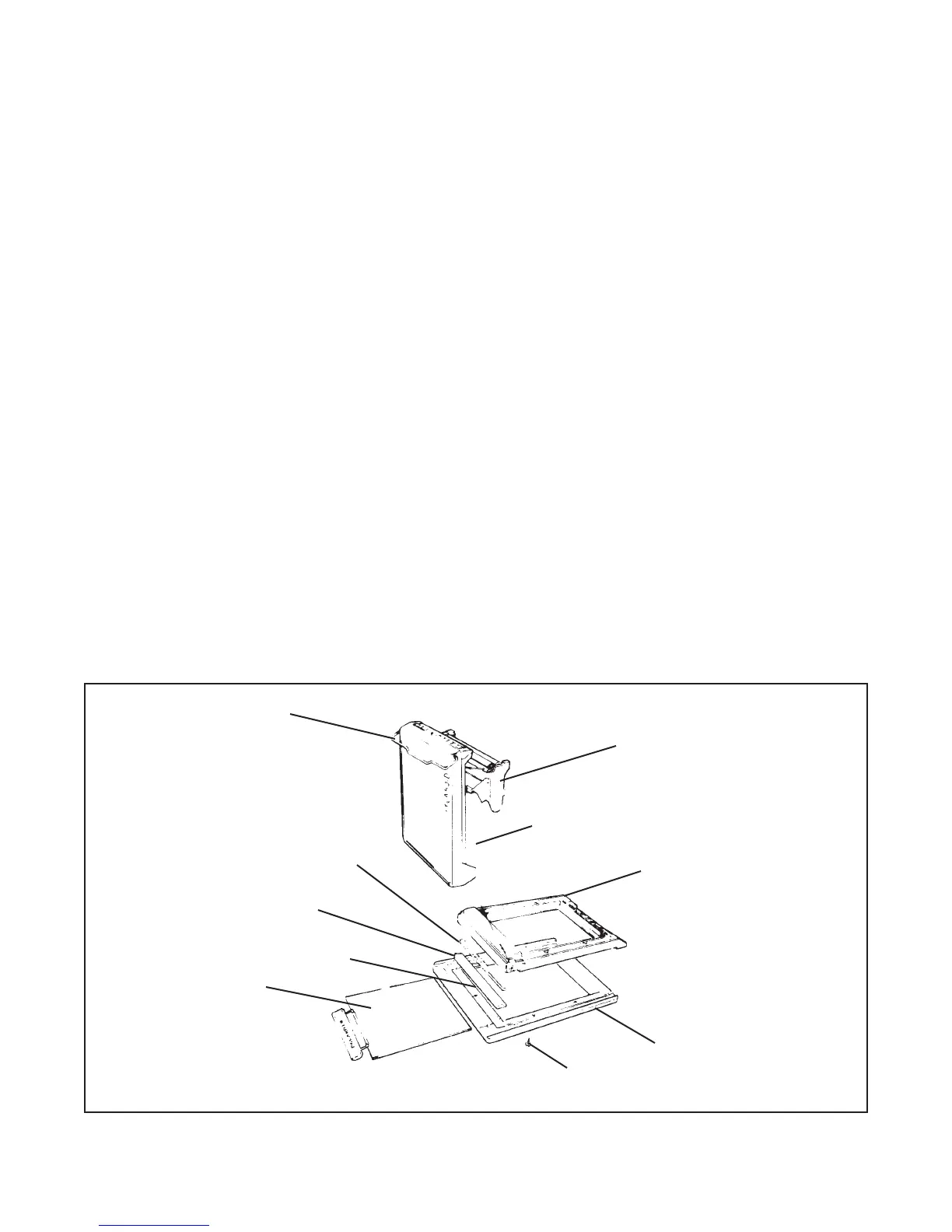

Figure 4-66. Film holder parts
Bail Latch
A-11 Mini-Roller
Spread System
(1)
Camera Door
Film Pack
Holder
(4)
Light Seal, Felt
(6)
Light Seal
Dark Slide
Assembly
(3)
Screw
(2)
Adapter Frame
(5)
Spring
