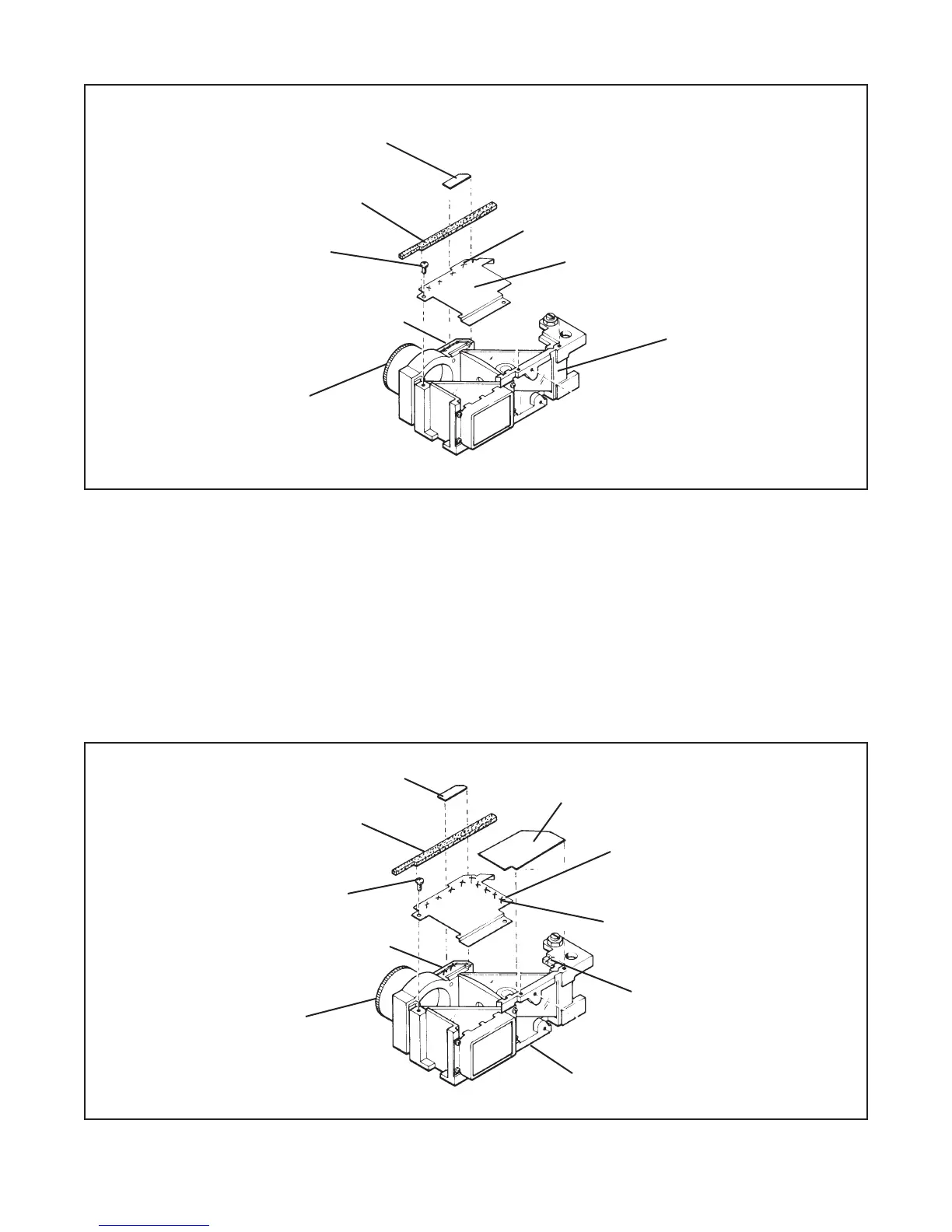

Figure 4-18. Removing cover from rangefinder assembly (model 600SE)
Removing Covers from Rangefinder Assembly (Model 600 Only)
Pry plate from eyepiece assembly area. Remove single screw, shown in Figure 4-19. Use
tweezers to gently loosen sponge filler from eyepiece assembly area. Use tweezers to gently lift
paper cover from rangefinder casting. Lift cover assembly (paper and metal covers) from
rangefinder assembly. If necessary, peel paper cover from metal cover.
Figure 4-19. Removing cover from rangefinder assembly (model 600 only)
Plate
Sponge
Filler
Screw
Eyepiece Assembly
Rangefinder
Assembly
Adhesive
for Plate
Adhesive
for Sponge
Eyepiece
Assembly
Plate
Cover
Sponge
Filler
Screw
Adhesive
for Plate
Adhesive
on Metal Cover
Rangefinder
Assembly
Paper
Cover
Metal
Cover
Adhesive
on Rangefinder
Casting for
Paper Cover
