Polaroid 600SE

46
Removing Mirror Assembly from Rangefinder Assembly (Figure 4-28)
Note: Removal of this assembly will require readjustment of the rangefinder (See Section 5).
The leaf spring position and the upper pivot position are fixed by shellac or other adhesive.
Remove excess adhesive after removing parts. Cement these parts into a fixed position after the
rangefinder has been adjusted.
Remove nut. Hold mirror mount assembly and remove upper pivot. Jockey mirror mount
assembly off the rangefinder assembly. Remove the three screws holding the mirror lever. Do not
disassemble the rangefinder assembly beyond the disassembly level shown in Figure 4-28.

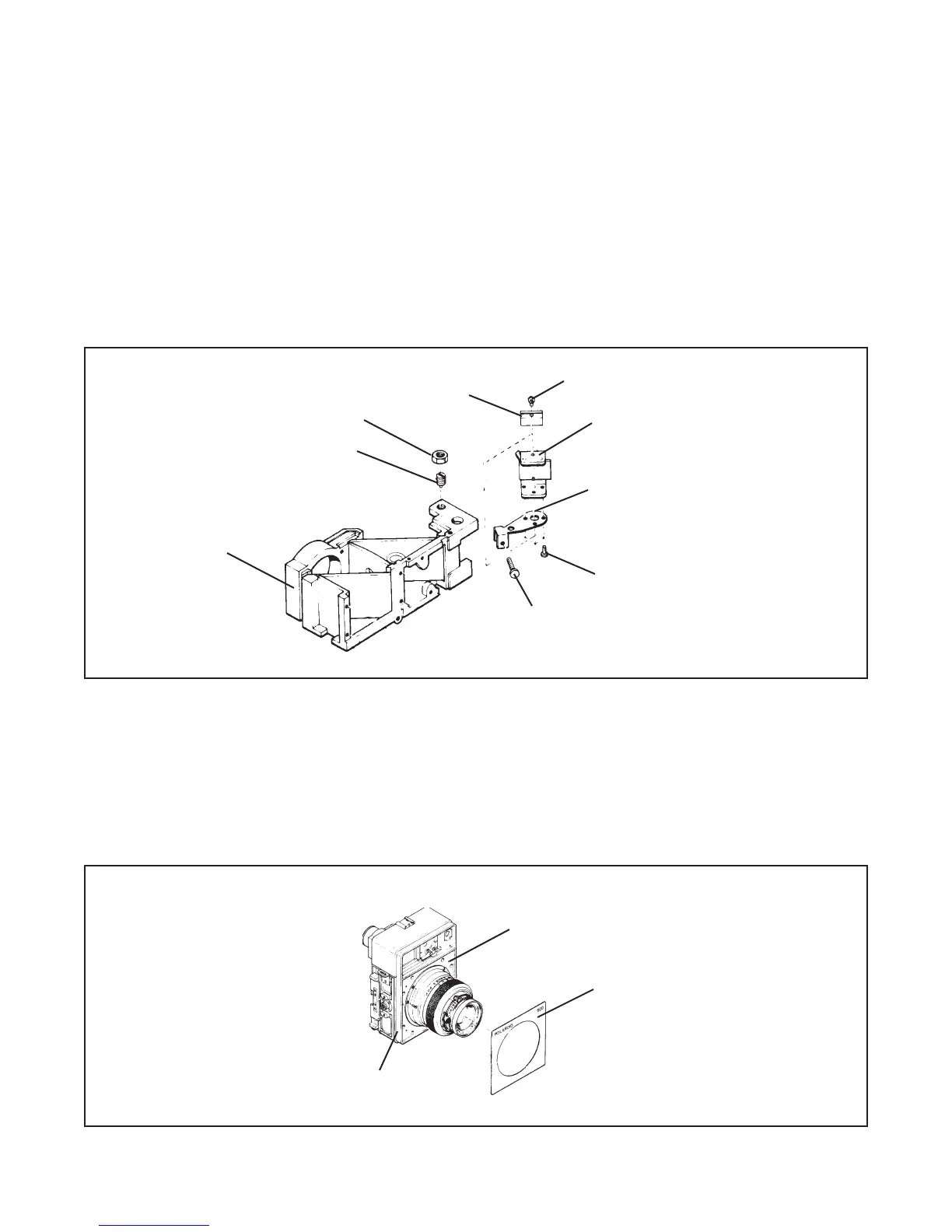

Figure 4-28. Removing mirror assembly
Removing Decorative Cover from Front Panel (Figure 4-29)
Use a knife to pry up one corner of the cover. Insert a thin metal blade to separate the adhesive
holding cover to the front panel. The bent cover will need to be replaced. Remove excess
adhesive before reassembly.
Figure 4-29. Removing decorative cover from front panel )model 600)
Screws
Leaf Spring
Mirror Mount Assembly
Nut
Upper Pivot
Mirror Lever
Rangefinder
Assembly
Range Adjusting Screw
(Infinity Setting)
Screw
Front Panel
Camera Body
Decorative Cover
