Polaroid 600SE

63
Disassemble front end as shown in Figures 4-51 through 4-53.
The assembly relationship of the rear of the lens barrel is shown in Figures 4-54 and 4-55. This
disassembly is normally not required.

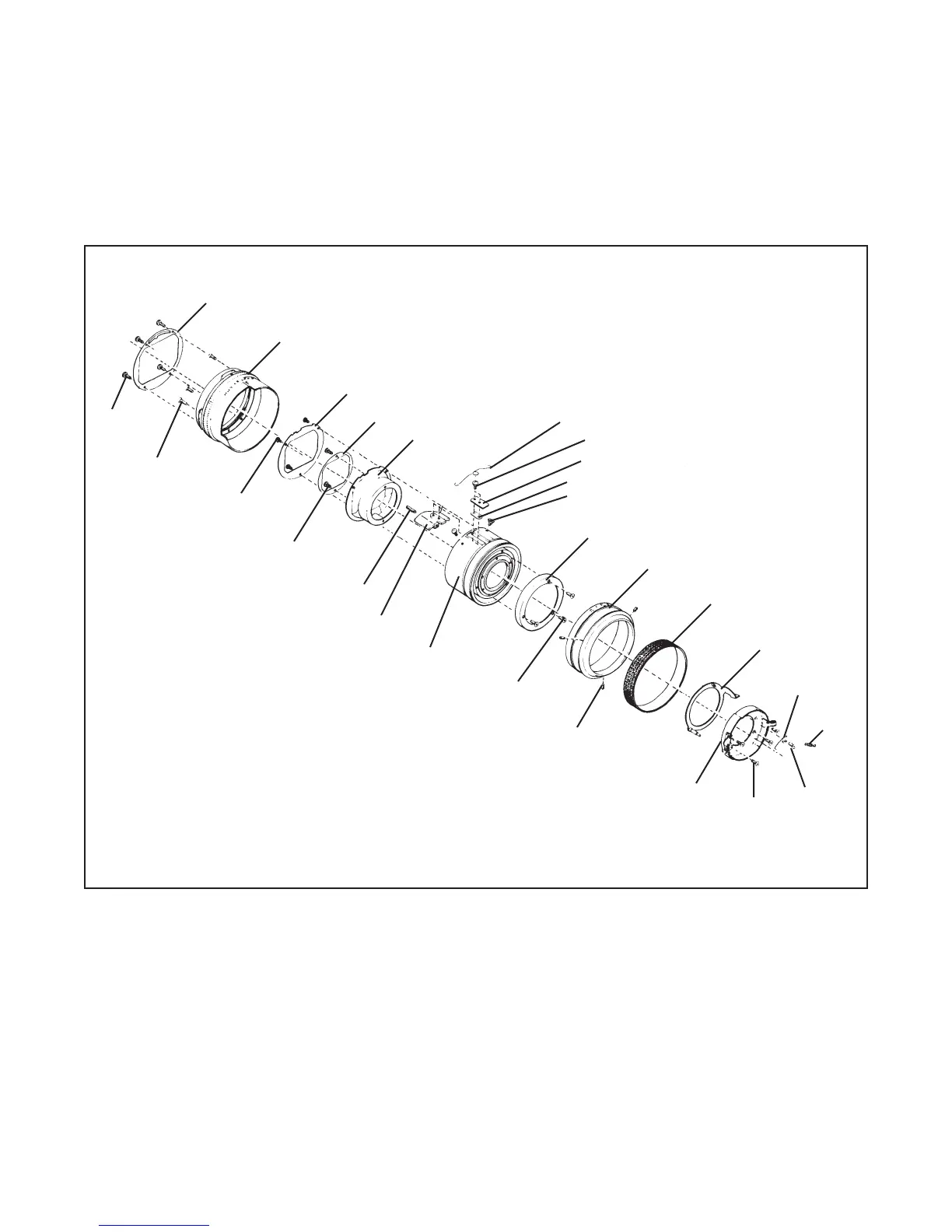

Figure 4-54. Disassembly of rear of Lens barrel, 127MM lens
Screws (4)
Screws (3)
Light Baffle #3
Screws (3)
Screws (2)
Depth Field Scale Ring
(Model 600)
Light Baffle #2
Light Baffle #1
Inner Tube
Coupling Pin
Coupling Key
Helicoid Assembly
Screws (3)
Set Screw (3)
Shutter Cover
Screws (4)
Screw
Spring
Shutter
Release Ring
Rubber Grip
Focusing Ring
Helicoid Cover
Shoulder Screws (2)
Washer
Plate
Screw (Plate)
Spring
Earth Plate
