70

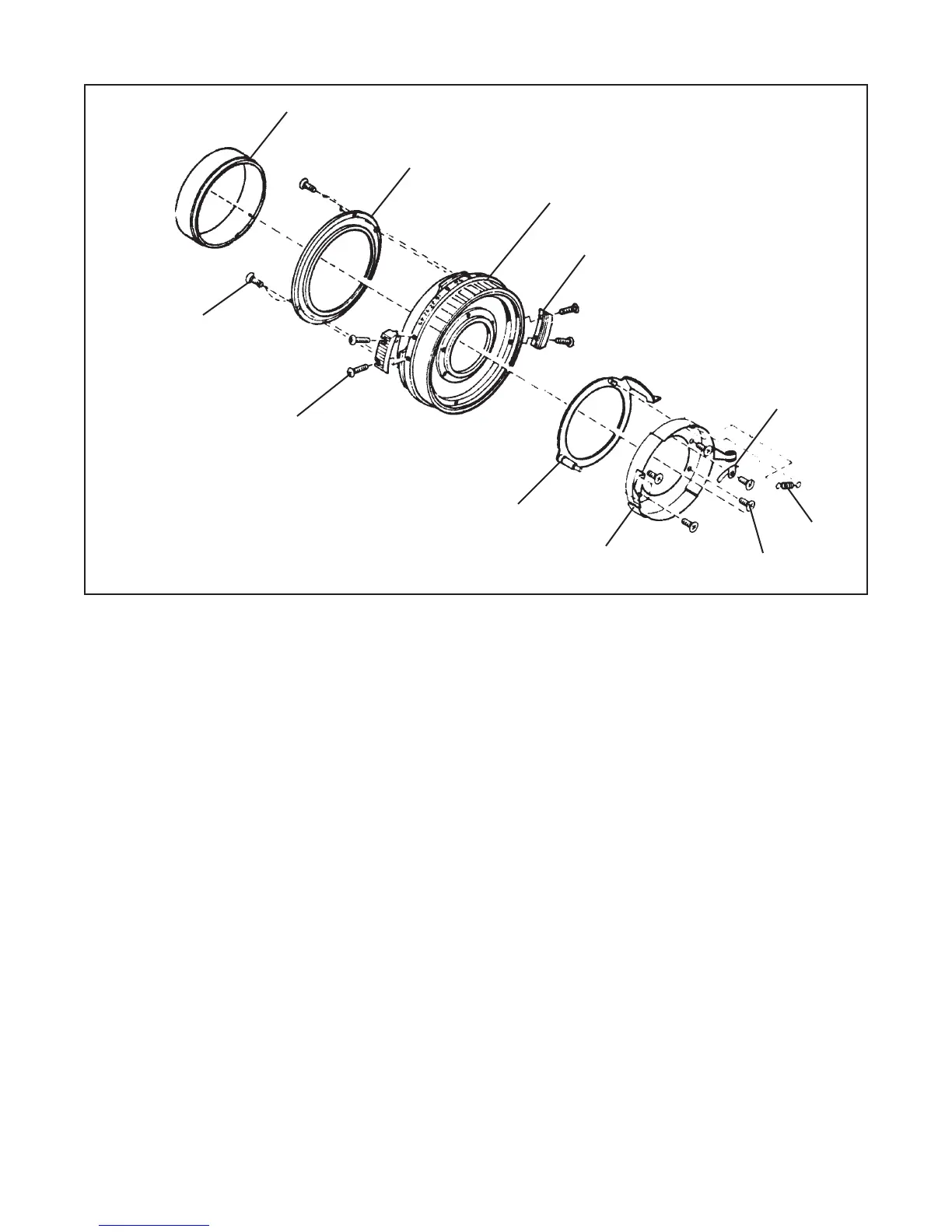

Figure 4-62. Removing 75MM lens, depth of field scale ring
Film Holder
Because of the simplicity of the Model 73 Film Holder, repairs are minimal. Those parts which
may be replaced are: A) Mini-Roller Spread System; B) Adapter Plate; C) Bail Latch; D) Camera
Door Assembly.
A. Mini-Roller Spread System Disassembly/Reassembly
1. Following the instructions printed on the inside of the door assembly, lift out the
spread system.
2. Refer to Figure 4-63. Insert special tool No. 11606 between the two sides of either load
spring at the location shown.
3. Rotate the handle of the tool to spread the arms of the spring as far apart as the tool will
allow.
4. Grasping both the spring and the tool, slide the spring out of the plastic frame in the
direction of the arrow (Figure 4-63).
Ring
Ring
Screws (4)
Screws (4)
Shutter Release Ring
Shutter Cover
Depth of Field Scale Ring
Plates (2)
Earth Plate
Screw
Spring
