Powtran PI9000 series User Manual

Chapter 5 Function parameter
136
The inverter's multifunction output DO will output ON signal when the inverter's
operating frequency is in a certain range of target frequency
This parameter is used to set the frequency arrival detection range, the parameter is the
percentage of maximum frequency. The above figure is the schematic diagram of frequency
arrival.
F7.26
Frequency detection value
(FDT2)
0.00Hz to F0.19
(maximum frequency)
50 . 00Hz
☆
F7.27
Frequency detection
hysteresis value (FDT2)
0.0% to 100.0% (FDT2
level)
5 . 0%
☆
The frequency detection function is same as FDT1 exactly, please refer to the
instructions of FDT1 or function codes F7.23, F7.24.
F7.28
Random arrivals frequency
detection value 1
0.00Hz to F0.19
(maximum frequency)
50.00Hz
☆
F7.29
Random arrivals frequency
detection width 1
0.00% to 100.0%
(maximum frequency)
0.0%
☆
F7.30
Random arrivals frequency
detection value 2
0.00Hz to F0.19
(maximum frequency)
50.00Hz
☆
F7.31
Random arrivals frequency
detection width
2
0.00% to 100.0%
(maximum frequency)
0.0%
☆
输出频率
Hz
time
t
频率到达
检测信号
time
t
频率到达检出幅值示意图
设定频率
检出幅值
ON
ON
Output
Frequency
Output
Frequency
Set frequency
Detection amplitude
Frequency
reaches detection
signal

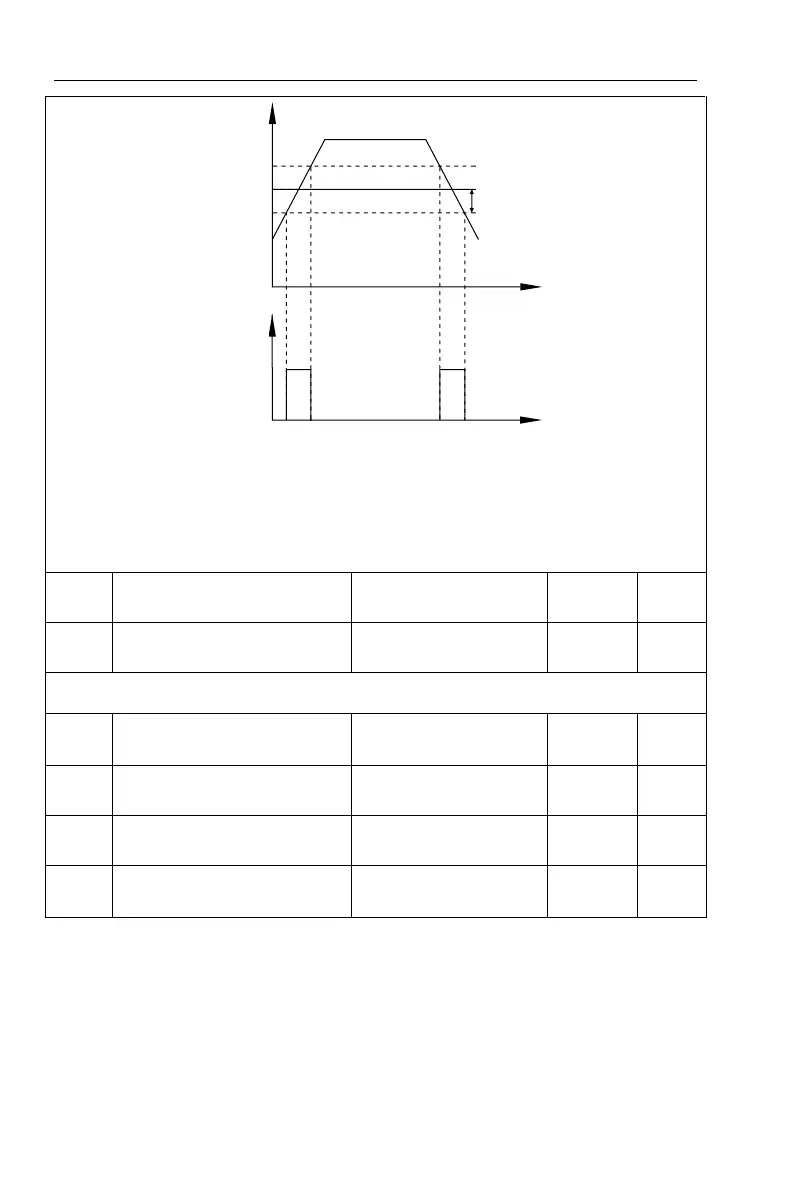

Schematic diagram of frequency arrival detection amplitude
