Ramp Cover Replacement
Ramp Cover Replacement
Removal Instructions

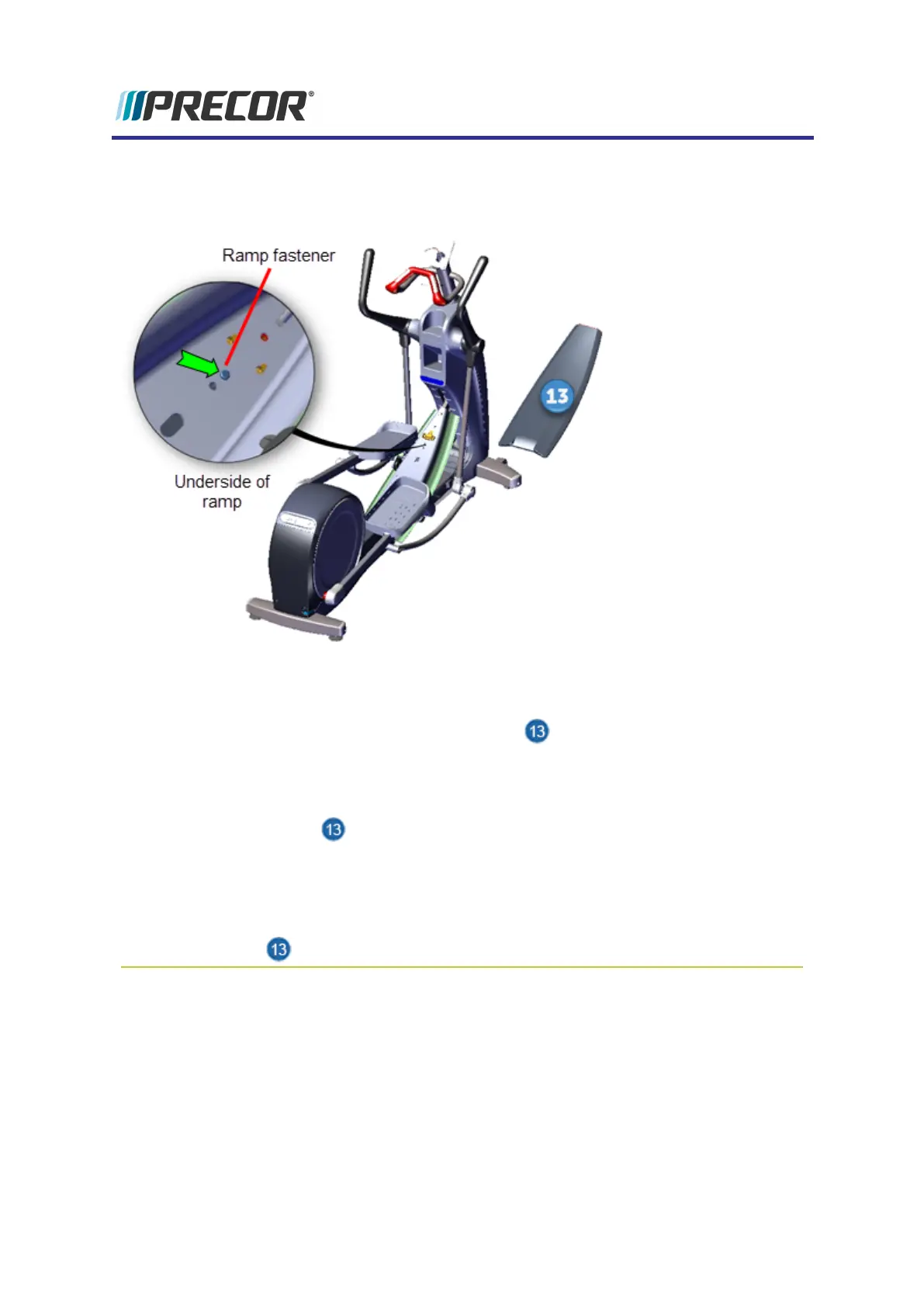

1. Use a short stub #3 screwdriver to remove the fastener located on the underside front of
the ramp platform. Lift the front of the ramp cover and slide forward to remove from
retaining clips. Retain fastener hardware for installation.
Installation Instructions
1.
Reinstall ramp cover by inserting the rear tabs into the rear ramp platform mounting
clips and then pressing down (and/or using the palm of your hand to lightly strike the top
of the ramp) on the top front of the ramp to snap into the front bracket clip. Verify that the
ramp clips are correctly engaged by grabbing the ramp sides and gently attempting to
move and lift the ramp off the platform.
2.
Secure ramp by reinstalling the #3 Phillips screw fastener and fully tighten.
Experience Series 800 Line EFX
55
5 Replacement Procedures
