Precor Experience Series 800 line EFX User Manual

Generator and Eddy Brake Assembly Replacement
About

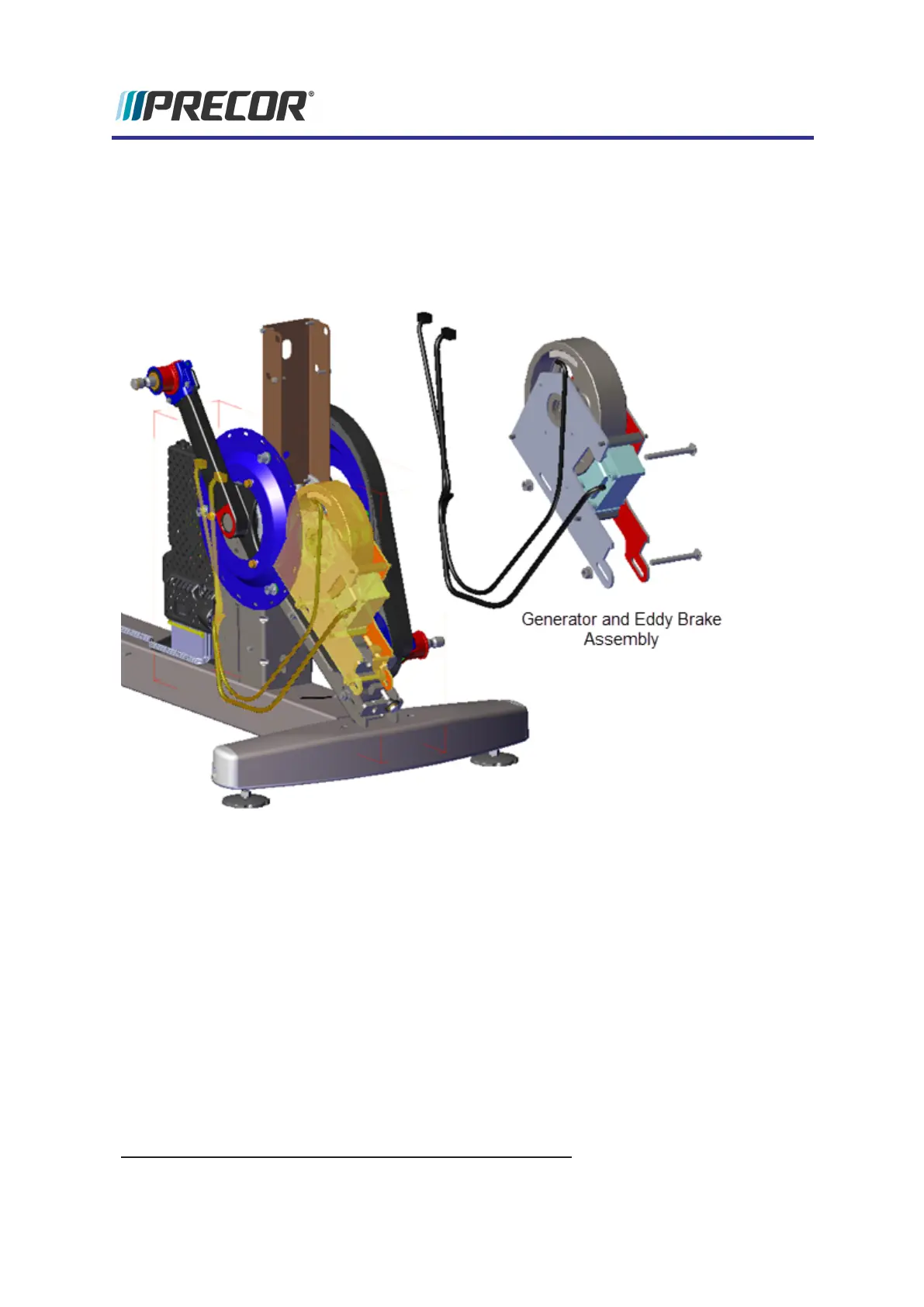

This procedure provides instruction to remove and install the Generator and Eddy Brake
assembly.
Procedure
Review entire procedure before starting.
Removal Instructions
1. Remove the Drive Access cover, see "Drive Access Cover Replacement" on page56.
2. Remove the left and right Drive Disk covers, see "Drive Disk Covers Replacement" on
page57.
3. Remove the one #2 Phillips screw fastener and LPCA
1
/Battery module cover. Dis-
connect the Generator input cable (J1) and Eddy/Brake load cable (J7) from the LPCA
board. Retain fastener hardware for installation.
1
Lower PCA board
Experience Series 800 Line EFX
77
5 Replacement Procedures
Generator and Eddy Brake Assembly Replacement
