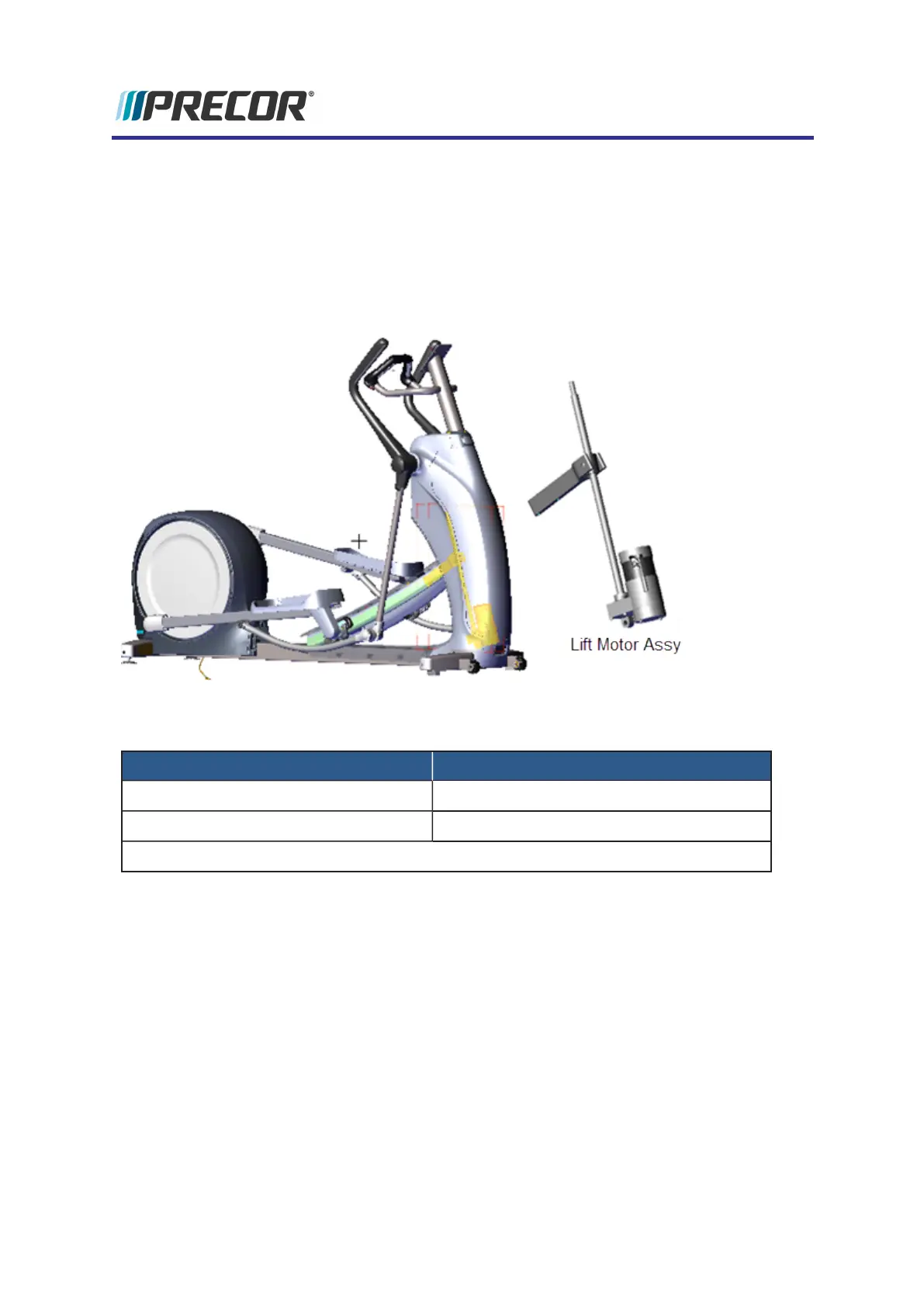

Lift Motor Calibration
About
This procedure provides instruction to verify and calibrate the Lift Motor and Incline system.
The Lift Motor calibration should be verified anytime the Lift Motor fuse fails or is replaced or
any incline system component is replaced.
Specifications
System Component Specification
Lift Motor Calibration Distance* 9 in
Yoke/Ramp Fasteners 320 in-lbs (236.2 Nm)
Note: * Calibration distance is set at incline level 10.
Procedure
Review entire procedure before starting.
1. Remove the Front Lift cover, Lift Interface Plate cover, and Ramp cover, see "Front Lift
Cover Replacement" on page49, ."Lift Interface Plate Cover Replacement" on
page51, and "Ramp Cover Replacement" on page55.
2. .Access the diagnostic CROSSRAMP TEST (select Pause key > type 51765761 >
select MACHINE TEST > CROSSRAMP TEST) . Set the ramp level to 10 and dis-
connect the Lift Motor Assembly input power/control cable.
Experience Series 800 Line EFX
40
4 Adjustment Procedures
Lift Motor Calibration
