Drive Components Assembly Replacement
About
This procedure provides instruction to remove and install the Drive Components Assembly.

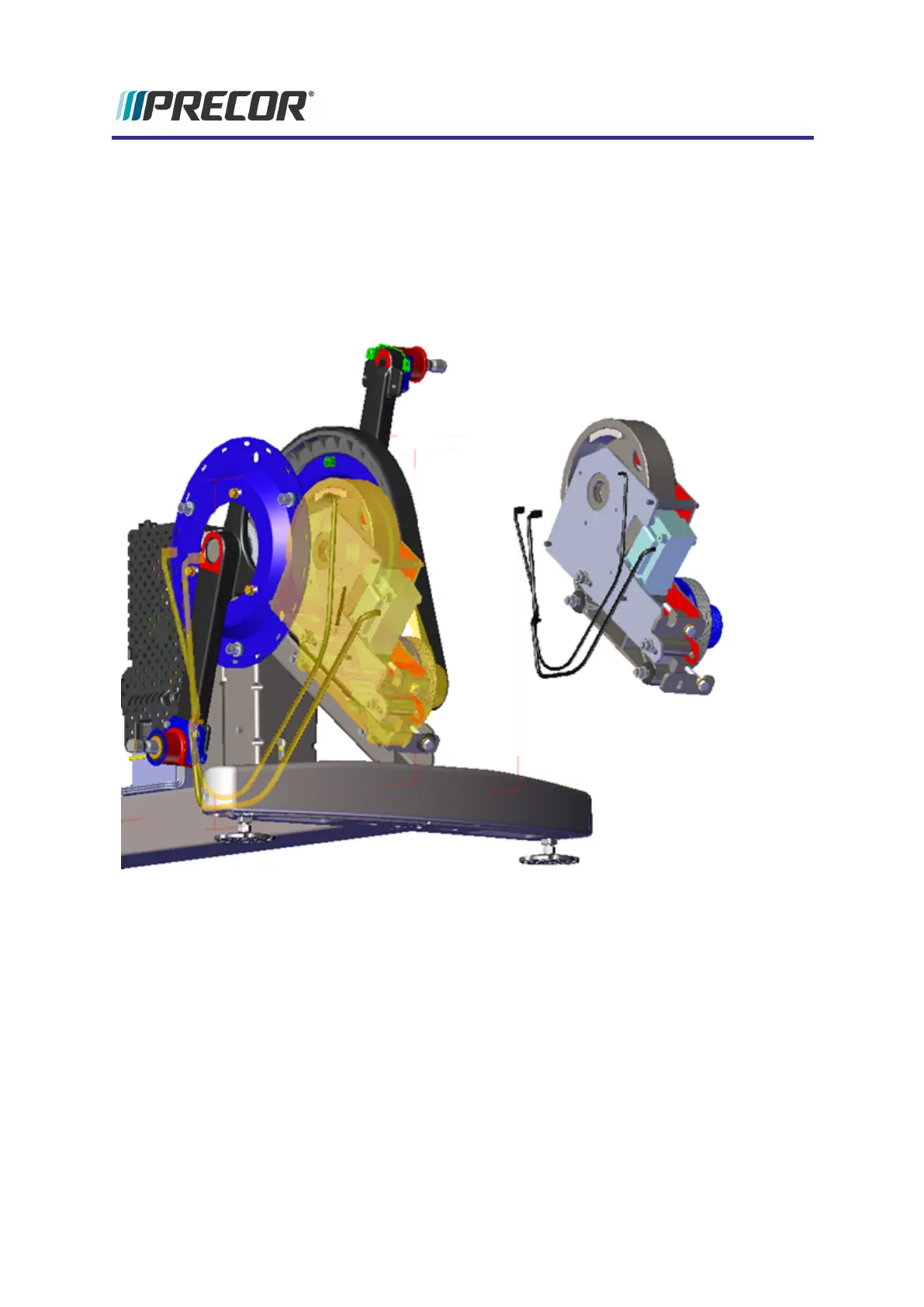

The Drive Components assembly consists of the Step-upPulley and Tensioner assembly and
Generator and Eddy Brake assembly.
Procedure
Review entire procedure before starting.
Removal Instructions
1. Remove the Drive Access cover, see "Drive Access Cover Replacement" on page56.
2. Remove the left and right Drive Disk covers, see "Drive Disk Covers Replacement" on
page57.
3. Remove the Stairarms and Drive Housing covers, see "Drive Housing Covers Replace-
ment" on page59.
Experience Series 800 Line EFX
86
5 Replacement Procedures
Drive Components Assembly Replacement
