Procedure
Review entire procedure before starting.
1. Remove the Drive Access Cover, see "Drive Access Cover Replacement" on page56.
2. Remove the left drive disk cover, see "Drive Disk Covers Replacement" on page57.

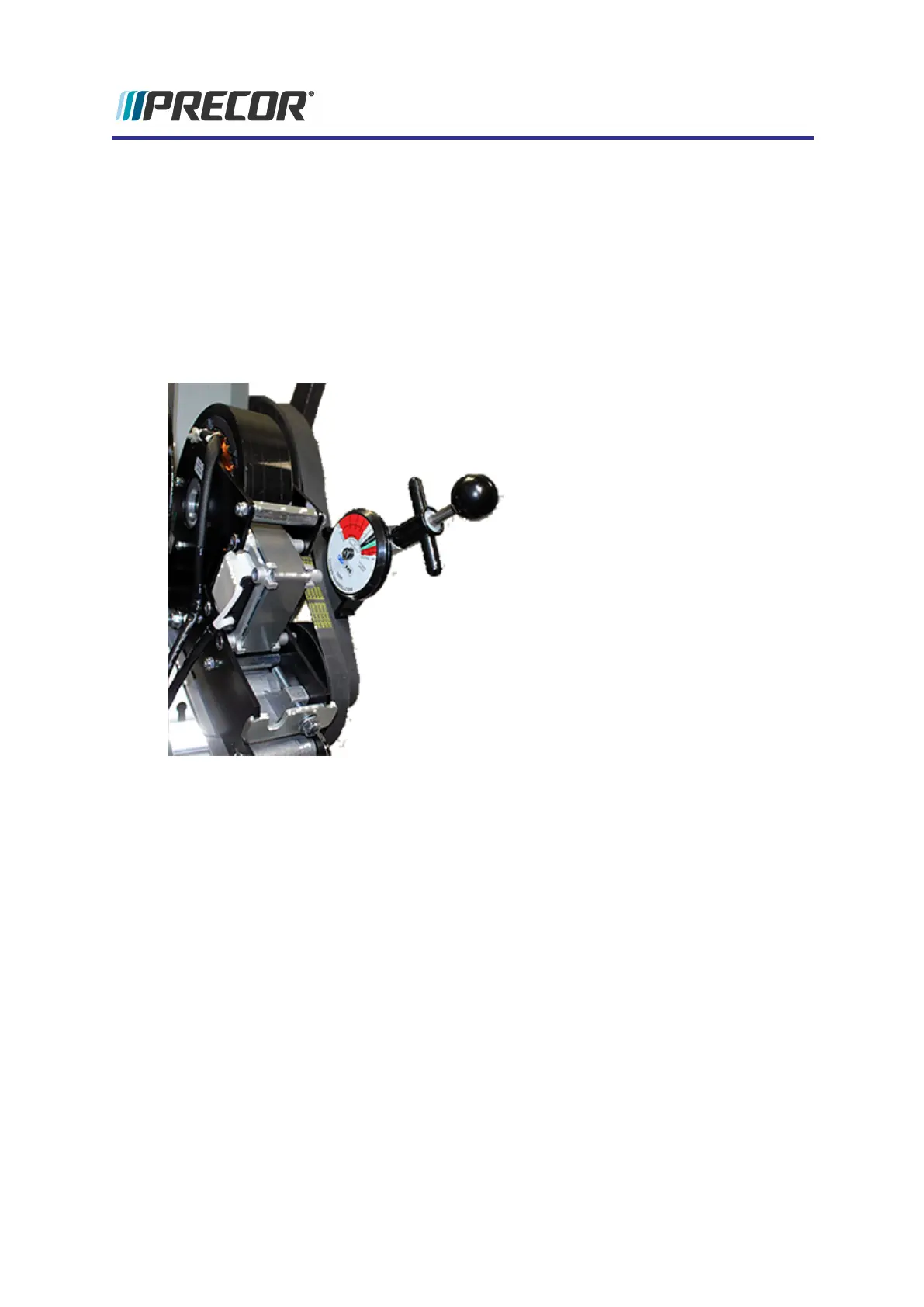

3. Place the belt tension gauge onto the First Stage Drive Belt midway between the two
pulleys and measure the tension. If the tension is within specification, belt tension adjust-
ment is not required. If the tension is not within [[[Undefined variable EFX800-
16Base.spec-BeltTensionFirstStage-12]]] continue with the belt tension adjustment.
4. Use a 1/2" socket to loosen the two Drive Components Assembly fastener nuts (left
Experience Series 800 Line EFX
33
4 Adjustment Procedures
First Stage Drive Belt Tension Adjustment
