side) enough to allow assembly movement. Do not remove the fastener nuts.

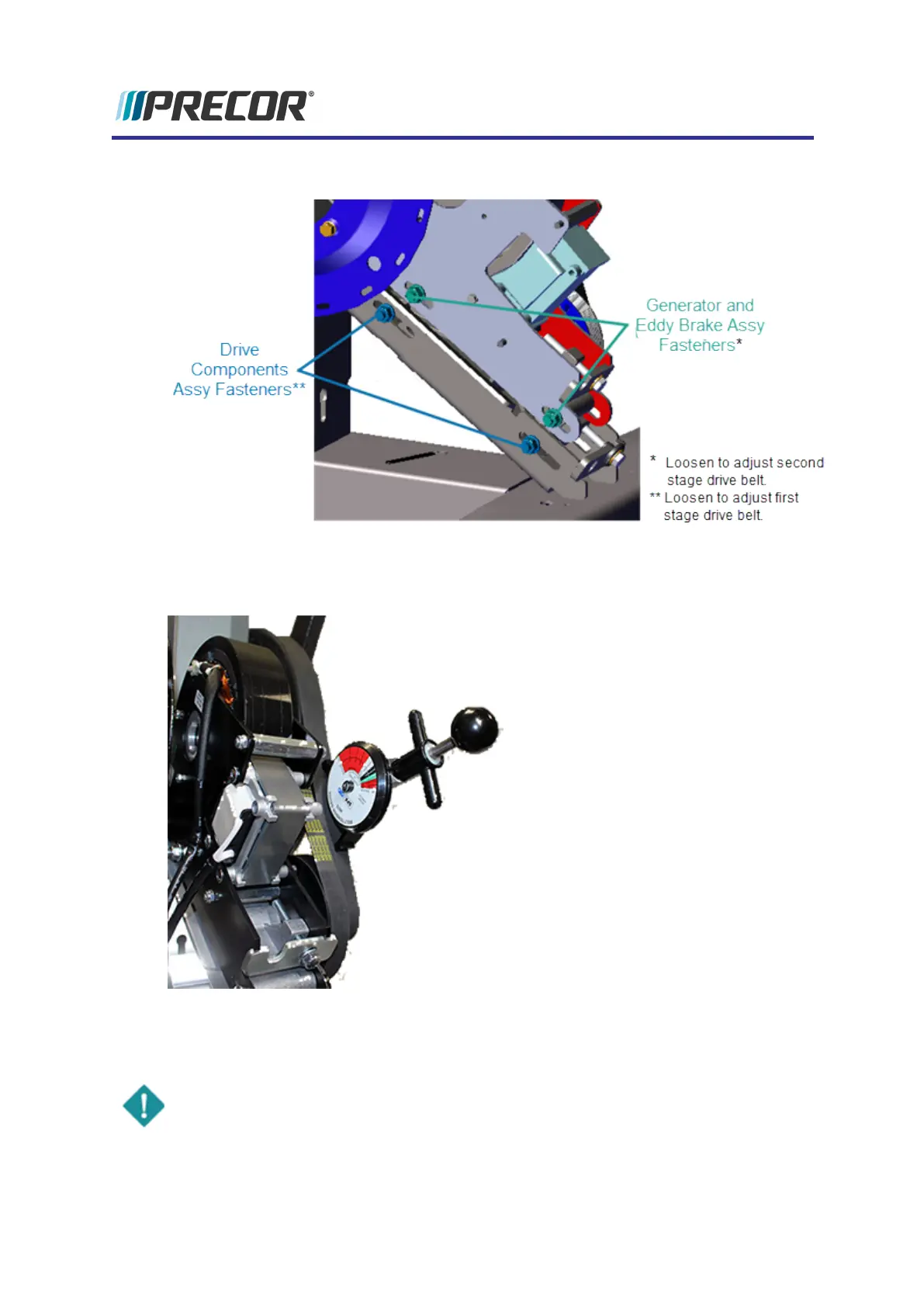

5. Place the belt tension gauge onto the first stage drive belt midway between the two pul-
leys and measure the tension.
6. Remove the belt tension gauge. Use a 1/2" socket to decrease or increase the belt ten-
sion using the First Stage Belt Tensioner. Only make small incremental tension changes
per adjustment.
IMPORTANT: The belt tension gauge must be removed while making tension adjust-
ments or the measurement will be invalid.
Experience Series 800 Line EFX
34
4 Adjustment Procedures
First Stage Drive Belt Tension Adjustment
