Precor Experience Series 800 line EFX - Procedure

Procedure
Review entire procedure before starting.
Removal Instructions
1. Remove the drive access cover, see "Drive Access Cover Replacement" on page56.
2. Remove the right and left drive disk covers, see "Drive Disk Covers Replacement" on
page57.
3. Remove the right Stairarm, see "Stairarm Replacement" on page117.

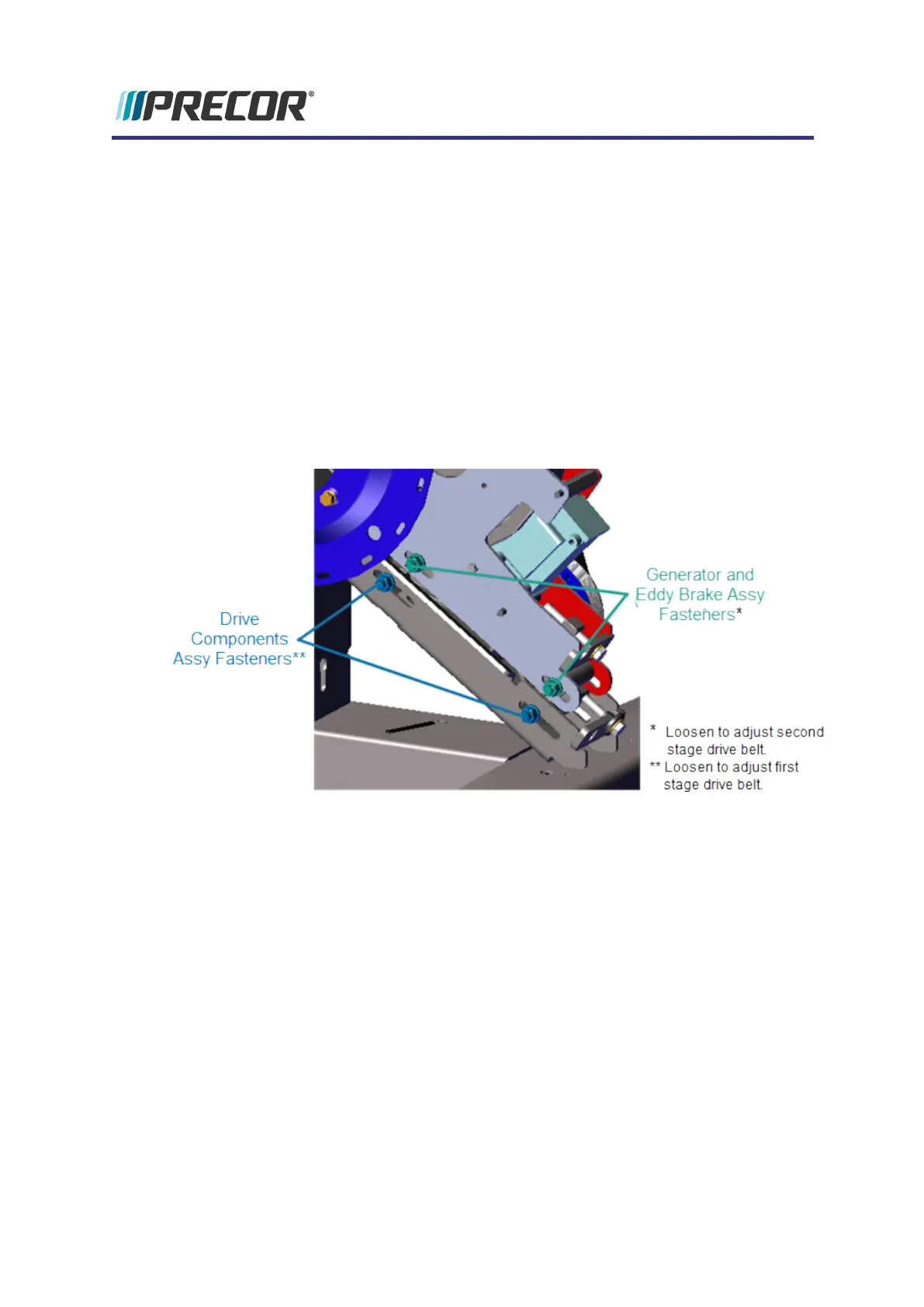

4. Use a 1/2" socket to loosen the two Generator and Eddy Brake Assembly and the two
Drive Components Assembly fastener nuts (left side). Loosen nuts enough to allow
movement but keep the carriage bolt heads inserted into the adjustment slots. Do not
remove the fastener nuts.
5. Use a 1/2" socket to loosen first stage belt tension and walk the first stage drive belt off
the pulleys. Remove the first stage drive belt.
Experience Series 800 Line EFX
73
5 Replacement Procedures
Second Stage Drive Belt Replacement
