Procedure
Review entire procedure before starting.
Removal Instructions
1. Remove the Left Drive Disk Cover, see "Drive Disk Covers Replacement" on page57.
2. Remove the one #2 Phillips screw fastener and remove the LPCA/Battery Module
cover. Retain fastener hardware for installation.
Experience Series 800 Line EFX
108
5 Replacement Procedures

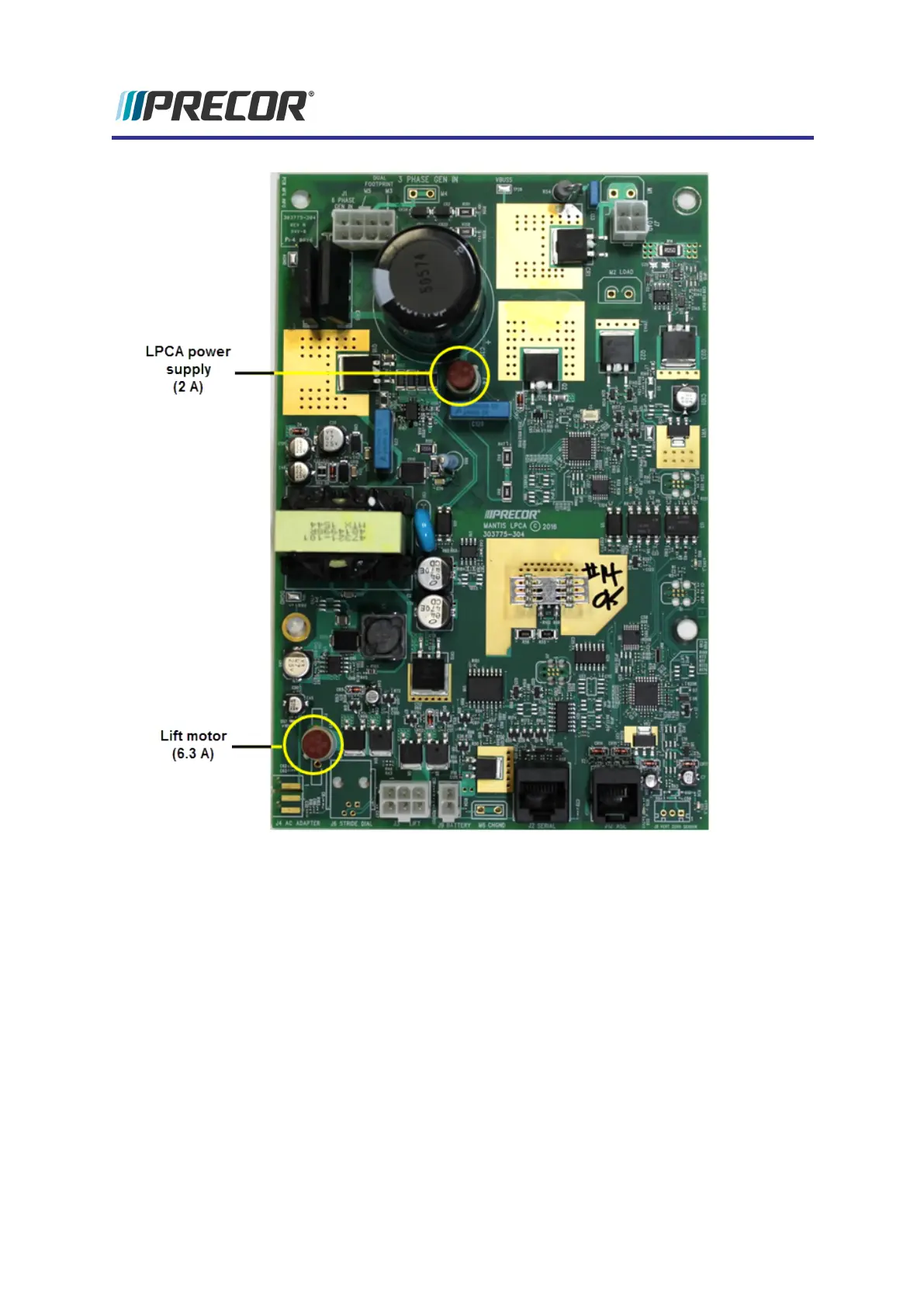

LPCA (Lower PCA) Board Replacement
