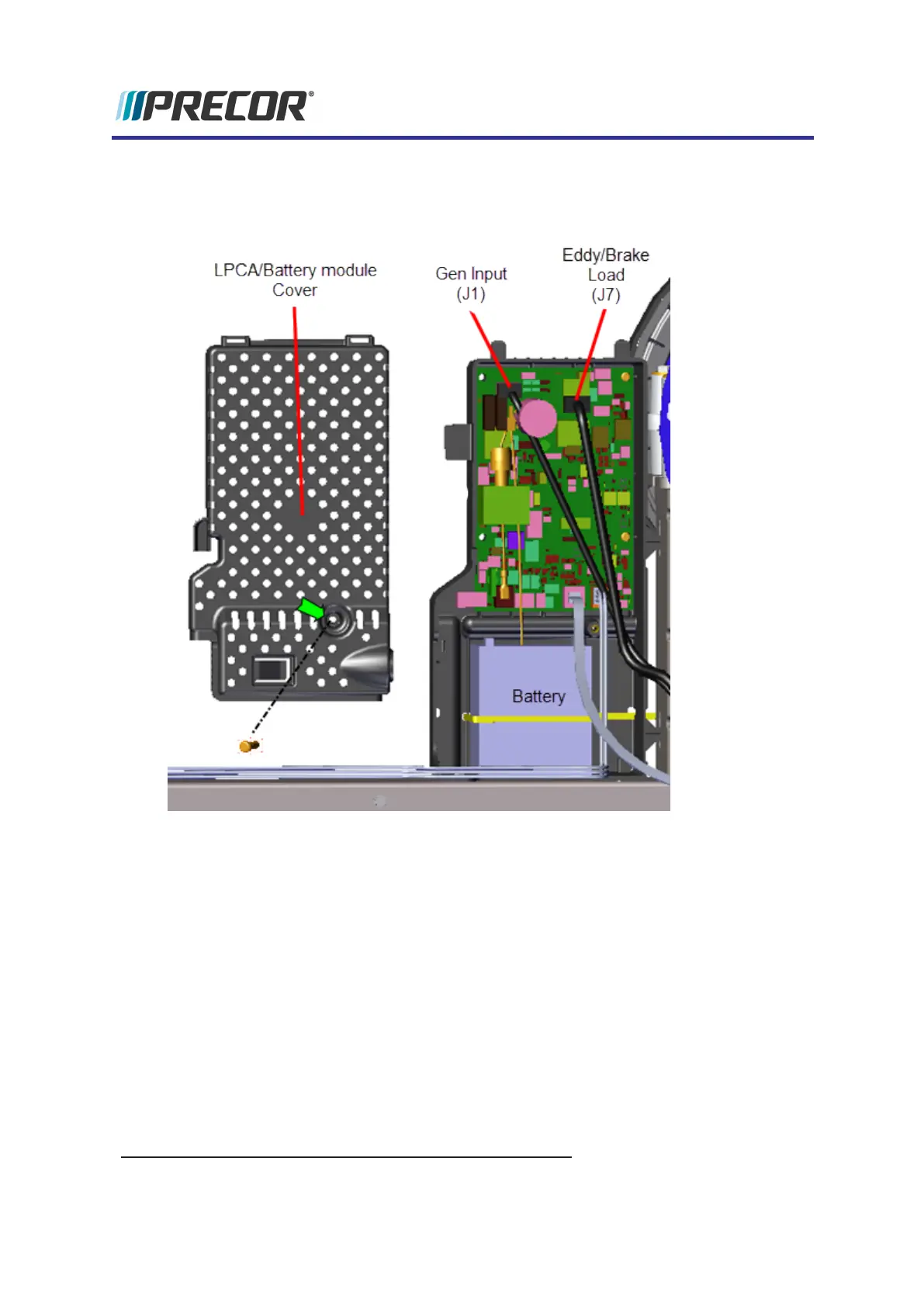

4. Remove the one #2 Phillips screw fastener and LPCA
1
/Battery module cover. Dis-
connect the Generator input cable (J1) and Eddy/Brake load cable (J7) from the LPCA
board. Retain fastener hardware for installation.
5. Use a 1/2" socket to loosen the two Generator and Eddy Brake Assembly and the two
Drive Components Assembly fastener nuts (left side). Do not remove the fastener nuts.
1
Lower PCA board
Experience Series 800 Line EFX
87
5 Replacement Procedures
Drive Components Assembly Replacement
