WARNING:Make sure to disconnect the Lift Motor input power/control cable or it is
possible for the crossramp to automatically lower to level 1 if either the pedals or
arms are moved. This unexpected action could cause personal injury.

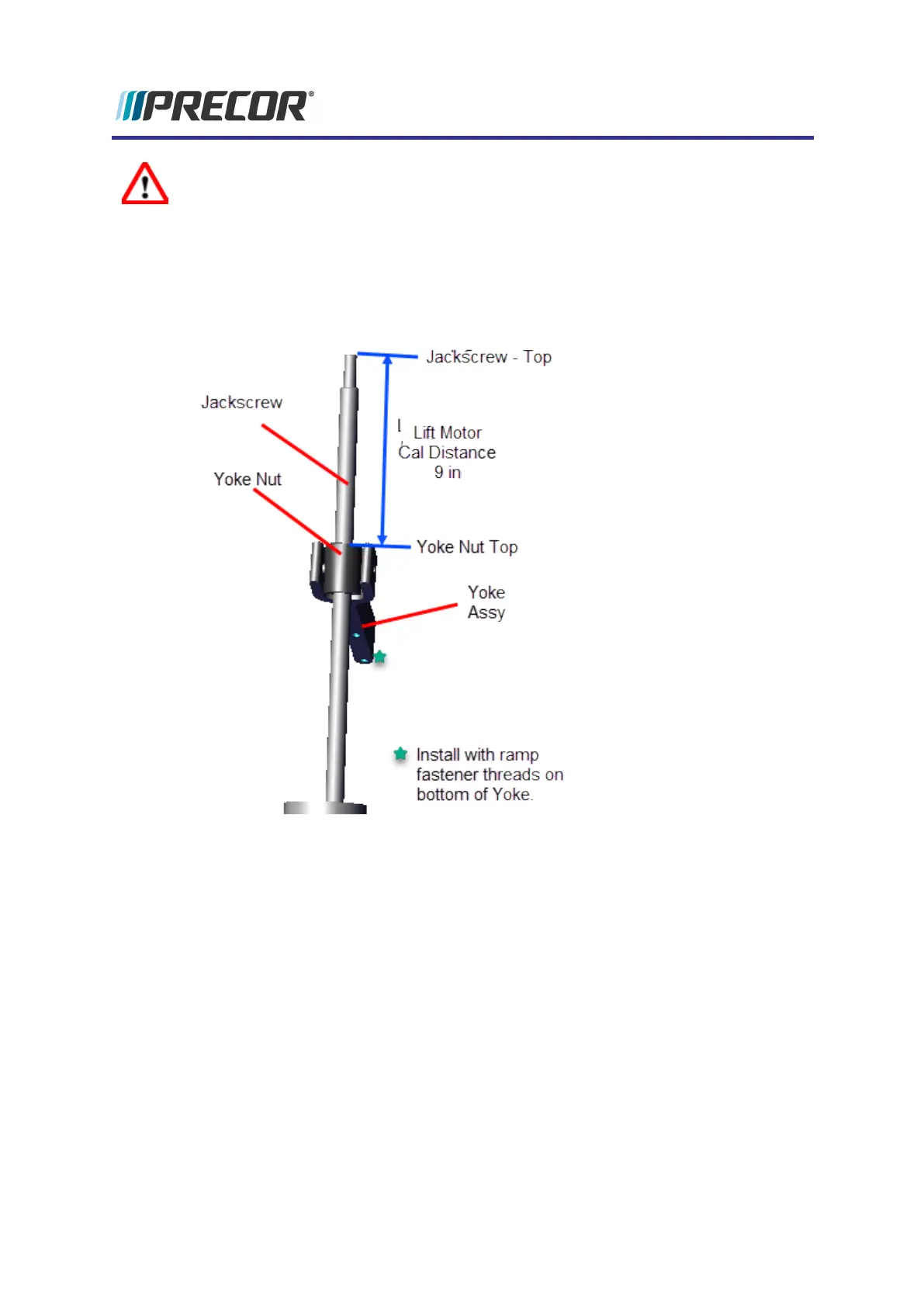

1. Measure and verify that the distance from the top of the jackscrew to the top of the yoke
nut is [[[Undefined variable EFX800-16Base.spec-LiftMotorCal]]].
2. If the calibration distance is not to specification (lift motor calibration distance:
[[[Undefined variable EFX800-16Base.spec-LiftMotorCal]]]), continue procedure to
adjust the Lift Motor calibration distance to specification
3. Place a pad over the top of the Front Frame cover to protect the surface during the
adjustment procedure. Place blocking material (hard foam or similar material) between
the underside of the ramp and frame to support and keep the ramp in the raised pos-
ition.
Experience Series 800 Line EFX
41
4 Adjustment Procedures
Lift Motor Calibration
