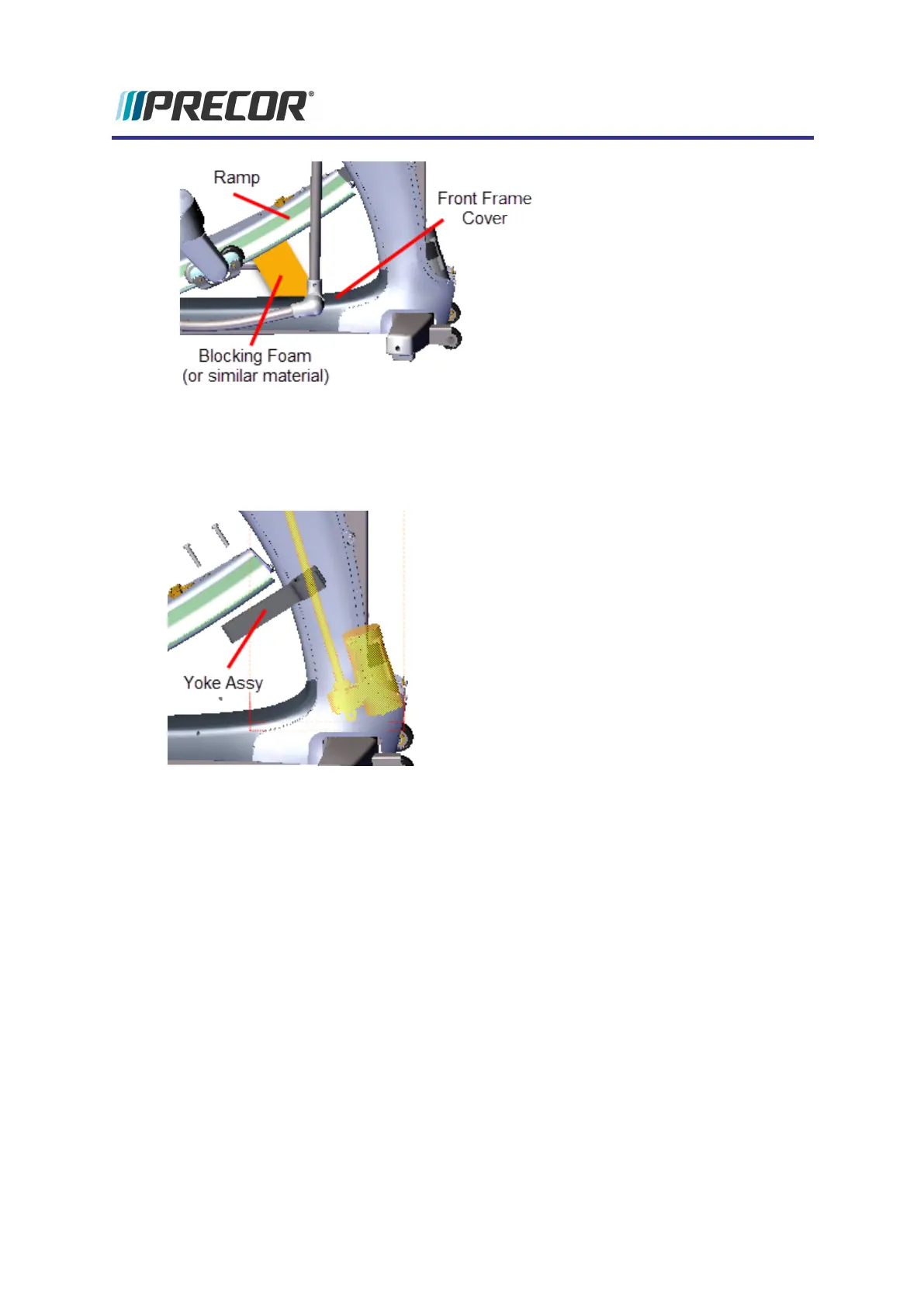

4. Use a 9/16" socket to remove the two ramp - ramp fasteners and remove the yoke from
the ramp. Take Note that the ramp will fall when the fasteners are removed. Make sure
the ramp is supported before removing the fasteners. Retain fastener hardware for
installation.
5. Use your hands to rotate the jackscrew to move the Yoke up or down as needed to
adjust the calibration distance. The Yoke installation position may not allow the cal-
ibration distance to be exact. So rotate the jackscrew so that the Yoke Nut provides the
closest plus or minus distance to 9 in.
6. Reattach the Yoke to the Ramp using the two fasteners, torque to 320 in-lbs (236.2
Nm).
7. Remove any blocking materials and pad.
8. Reconnect the input power/control cable.
9. Verify the elliptical incline operation through the full range of motion, levels 1 though 20.
Do the CROSSRAMP TEST diagnostic test.
10. Reinstall the Front Lift, Lift Interface Plate, and Ramp covers, see "Front Lift Cover
Replacement" on page49, ."Lift Interface Plate Cover Replacement" on page51 and
"Ramp Cover Replacement" on page55.
11. Verify elliptical operation and return to service.
Experience Series 800 Line EFX
42
4 Adjustment Procedures
Lift Motor Calibration
