2. Use a 1/2" socket to loosen the second stage belt tension and walk the second stage

drive belt off the pulleys. Remove the second stage drive belt.

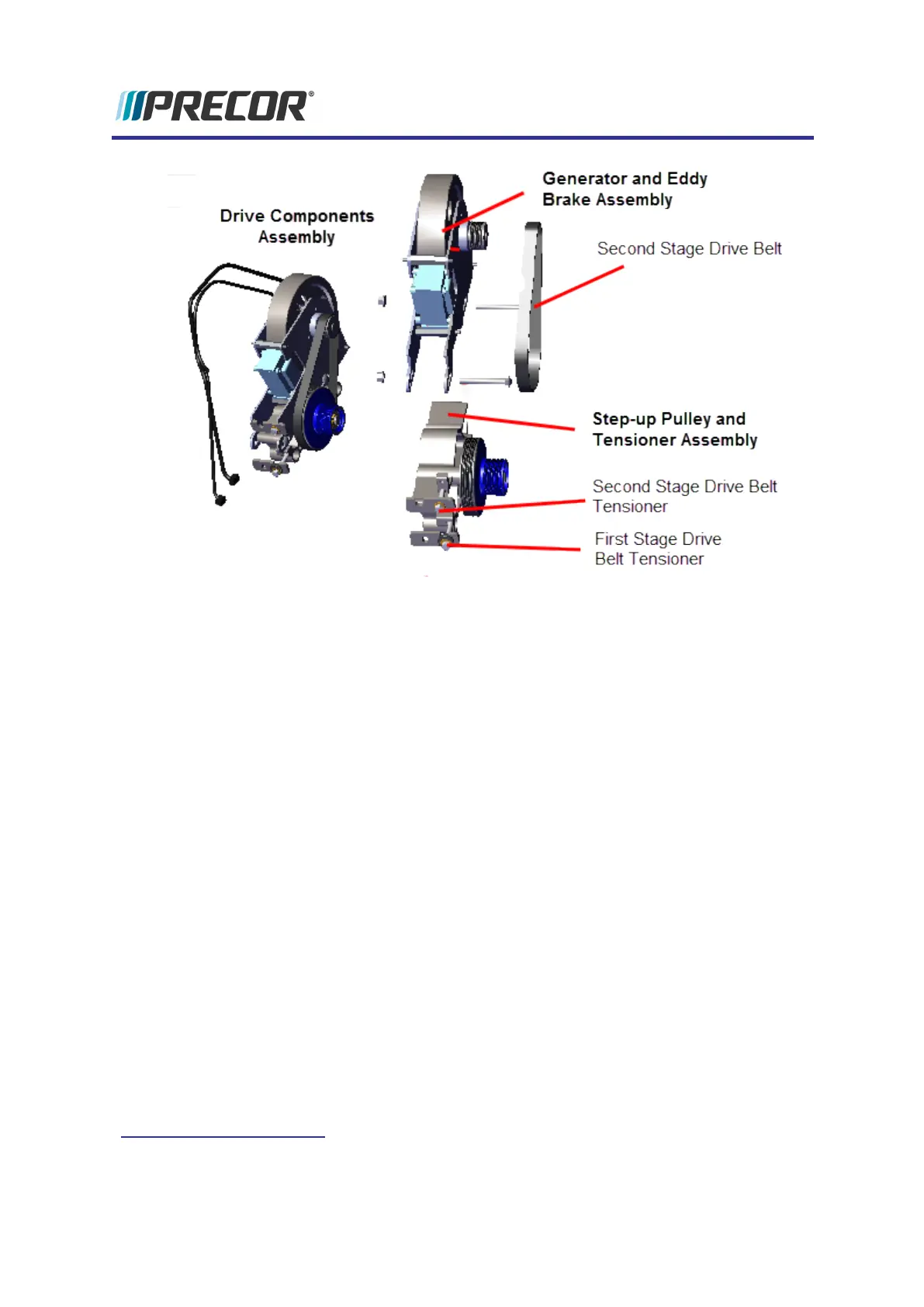

3. Use a 1/2" socket to remove the two carriage bolt fasteners to separate the Generator

and Eddy Brake Assembly from the Step-up Pulley and Tensioner Assembly.

Installation Instructions

1. Reassemble the Drive Components Assemblyy. Place the Generator and Eddy Brake

Assembly onto the Step-up Pulley and Tensioner Assembl mounting bracket. Install the

two carriage bolt fasteners. Tighten the bolts enough to keep the carriage bolt heads

inserted into the mounting and belt adjustment slots, but do not fully tighten.

2. Adjust the second stage tensioner to walk the second stage drive belt onto the pulleys.

Tighten the second stage tensioner bolts enough to keep the belt on the pulleys and ten-

sioner hardware in place. Do not over tension the belt.

3. Reinstall the Drive Components Assembly, see "Drive Components Assembly Replace-

ment" on page86.

4. Reinstall the left and right Stairarms and Drive Housing covers, see "Drive Housing

Covers Replacement" on page59.

5. Reinstall the left and right Drive Disk covers, see "Drive Disk Covers Replacement" on

page57.

6. Reinstall the Drive Access cover, see "Drive Access Cover Replacement" on page56.

7. Verify machine operation and return to service, see "Operation Verification" on page11.
