S3.55 Assembly and Maintenance Guide
page 11
1 2 3 4 5 6
4. Install the Upper Frame
Important: Use a step stool or ladder if you are
less than 6 feet (185 cm) tall.
A. Place the Upper Frame hooks inside the top of the
Side Rails.
B. Attach the Upper Frame to the Side Rails by
aligning the mounting holes and using
six 2½-inch bolts
twelve washers
six locknuts
Finger tighten each fastener. Start with tightening
the lowest bolts, then move to the top bolts, and
finish with the middle bolts.
Note: Rest the Center Support Pulley Bracket on
the Main Frame while you install the Front Bracket
fasteners in the Upper Frame.
C. Attach the Center Support to the Upper Frame
using
two 1-inch bolts
four washers
two locknuts
Finger tighten.
D. Attach the Center Support to the Main Frame using
two 3-inch bolts
four washers
two locknuts
Finger tighten.
Note: The remaining items in Box 2 are used later in
the assembly process.

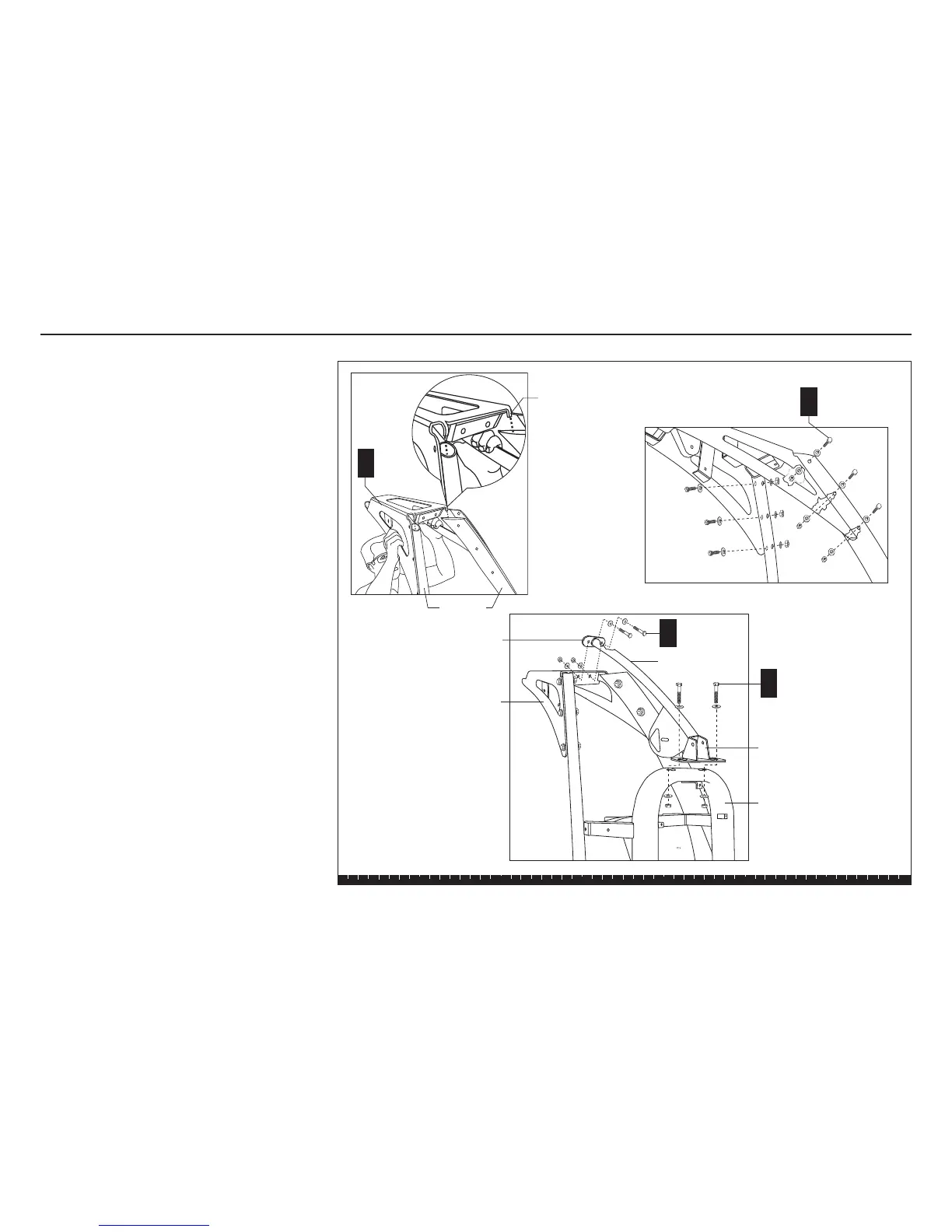

Step 4. Install the Upper Frame
B
C
A
Upper
Frame
D
Side Rails
6 - 2½" bolts
12 - washers
6 - locknuts
2 - 3" bolts
4 - washers
2 - locknuts
2 - 1" bolts
4 - washers
2 - locknuts
Center Support
Main Frame
Upper Frame
Upper Frame
hooks
Center Support Pulley Bracket
Front Bracket

Precor S3.55 Specifications

Weight and Dimensions

length	86 inch (218 cm)
width	68 inch (173 cm)
height	82 inch (203 cm)
shipping weight	812 lb (370 kg)
