Precor S3.55 User Manual

S3.55 Assembly and Maintenance Guide
page 16
1 2 3 4 5 6

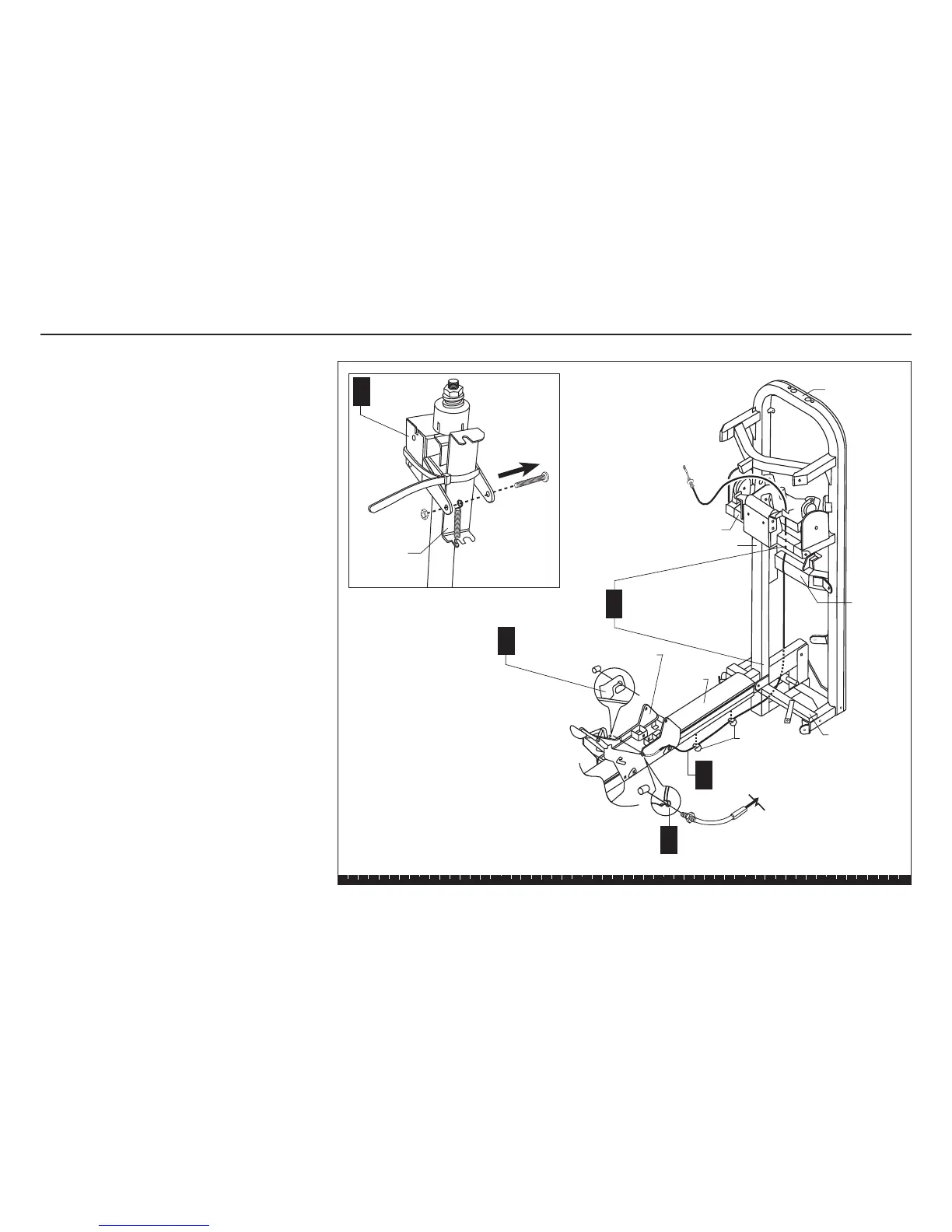

Step 8. Install the Seat Adjustment Cable
A
8. Install the Seat Adjustment
Cable
The Seat Adjustment Cable 46414-101 attaches to the
base of the Seat Carriage and to the Press Arm
Adjuster connected to the Cable Bracket on the Main
Frame.
A. Remove the 2-inch bolt and nut from the Press
Arm Adjuster and set them aside.
B. Feed the Seat Adjustment Cable 46414-101
through the clips on the underside of the Seat Rail.
C. Continue to feed the Cable through the Seat
Carriage Mounting Hole.
D. Attach the end of the Cable to the Release Handle
Bracket on the right side of the Seat Carriage.
E. Feed the Seat Adjustment Cable 46414-101 over
the Base Crossbar and along the seat assembly
side of the Lower Crossbar, but behind the Middle
Cross Brace. Review the illustration. Let the Cable
hang over the Press Arm Adjuster.
CAUTION: Do not cut the tie wrap holding the
Cable Bracket.
Press Arm
Adjuster
Seat Adjustment Cable
46414-101
Seat Carriage
C
Seat Carriage Mounting Hole
D
Release Handle Bracket
B
Middle Cross Brace
Feed cable behind Middle
Cross Brace.
Feed cable between Main
Upright and Main Frame.
Cable
Bracket
Lower
Crossbar
Base
Crossbar
Clips
Note: Pec Fly Drums removed for clarity.
E
Seat Rail
Main Upright
Main Frame

Precor S3.55 Specifications

Weight and Dimensions

length	86 inch (218 cm)
width	68 inch (173 cm)
height	82 inch (203 cm)
shipping weight	812 lb (370 kg)
