27. Re-Install the Pec Fly Drum
Assembly on the Main Upright
Step 27. Re-Install the Pec Fly Drum Assembly on the Main Upright
2 - 4" bolts
4 - washers
2 - locknuts
A
The Pec Fly Assembly consists of three rotating drums.
Two of the drums are on one side of the assembly. As
you stand facing the Main Upright, note that the Pec
Fly Assembly must be mounted so that the two drums
are on the right-hand side.

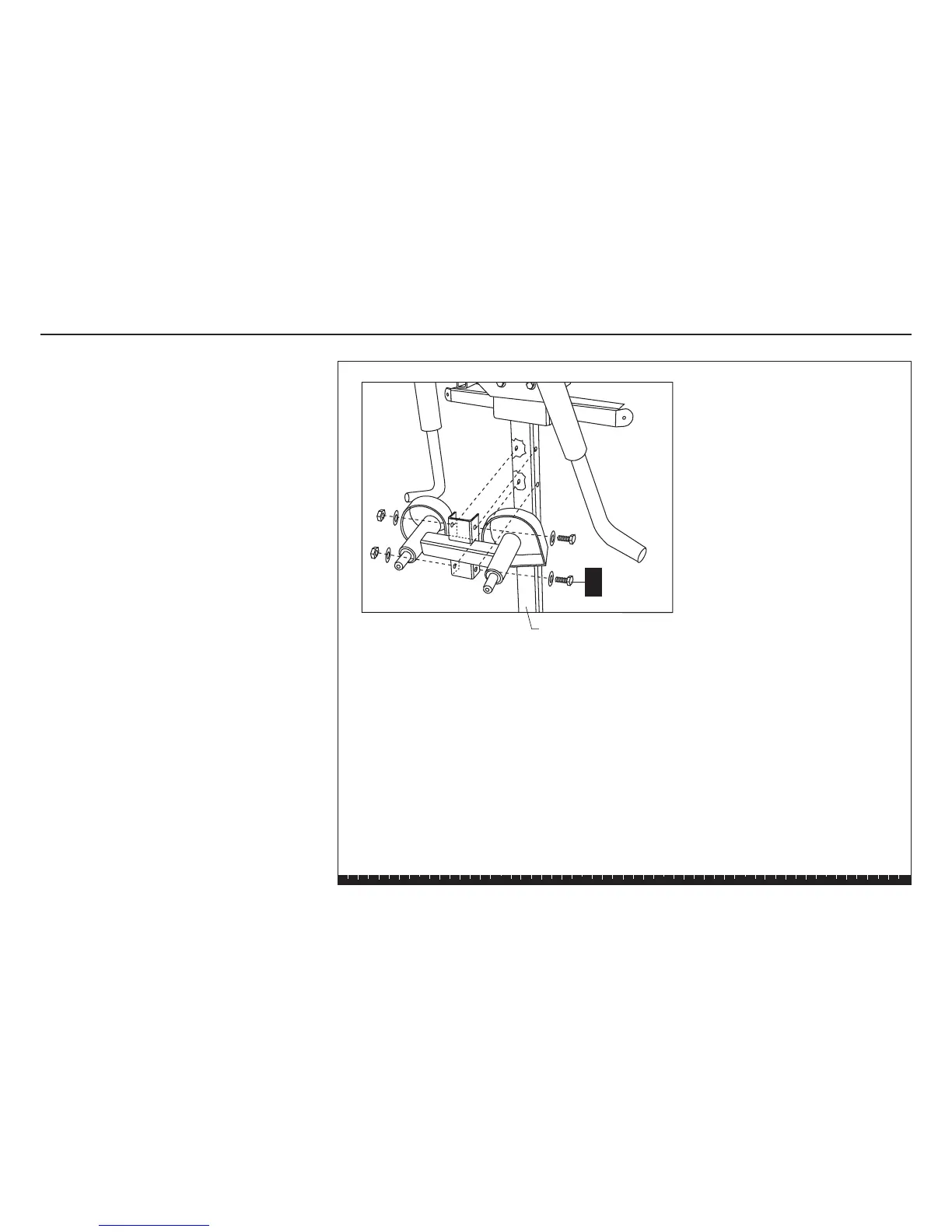

A. Mount the Pec Fly drums on the Main Upright in
the orientation shown using the fasteners removed
previously,
two 4-inch bolts
four washers
two locknuts
Wrench tighten.
Main Upright

Precor S3.55 Specifications

Weight and Dimensions

length	86 inch (218 cm)
width	68 inch (173 cm)
height	82 inch (203 cm)
shipping weight	812 lb (370 kg)
