S3.55 Assembly and Maintenance Guide
page 29
1 2 3 4 5 6
Weight Stack Base
Main Frame

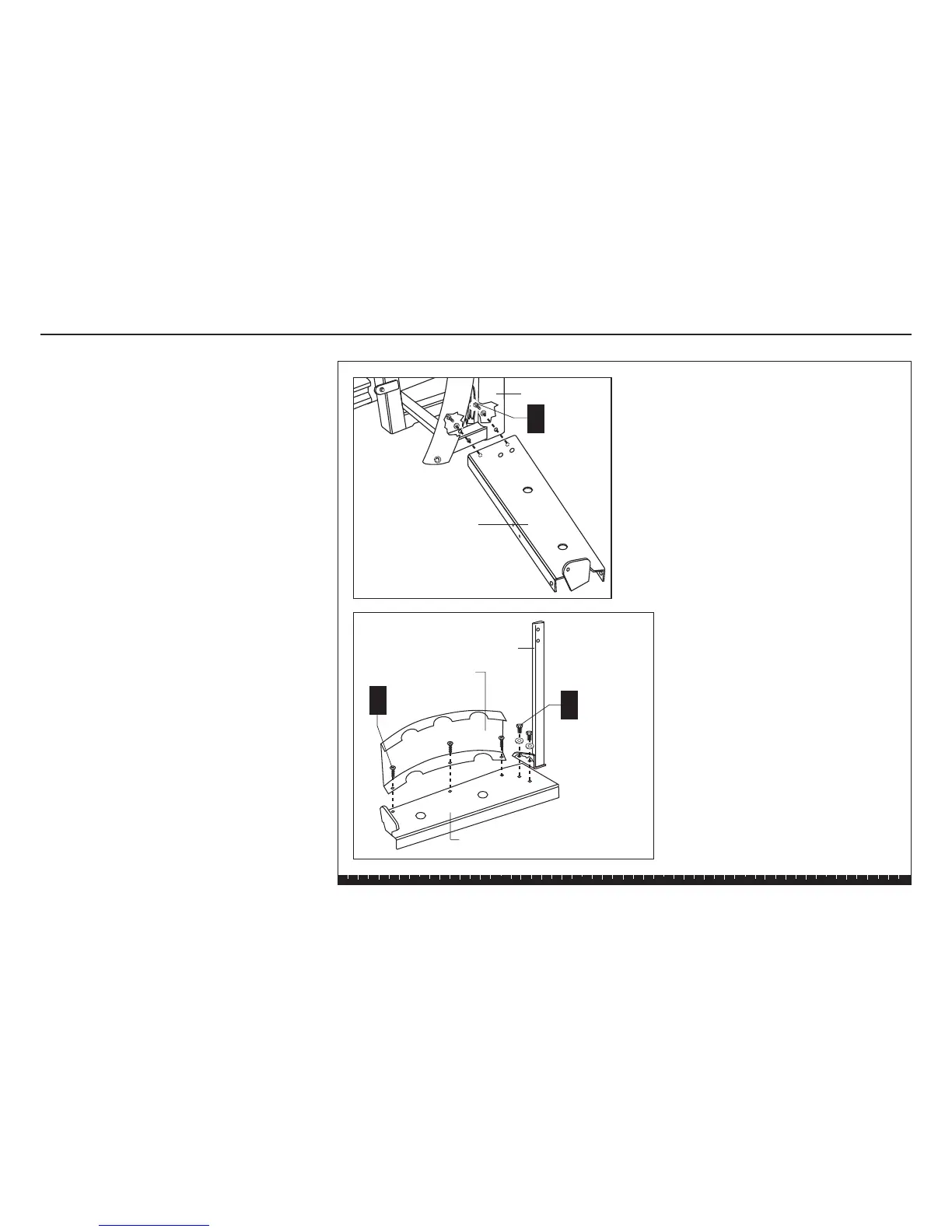

18. Assemble the Weight Stack
A. Align the Weight Stack Base to the base of the
Main Frame. Secure using
two 2½-inch bolts (blue patch)
two washers
Wrench tighten.
B. Attach the Spacer Shroud using
three ⁵⁄₈-inch self-tapping screws
Wrench tighten.
Important: Do not install the Spacer Shroud if you
purchased the Heavy Stack Option.
C. Attach the Weight Support Brace to the Weight
Stack Base using
two ¾-inch bolts (blue patch)
two washers
Wrench tighten.
A
2 - 2½" bolts
2 - washers
Weight Support Brace
Weight Stack Base
B
Step 18. Assemble the Weight Stack
C
2 - ¾" bolts
2 - washers
Spacer Shroud
3 - ⁵⁄₈" self-tapping
screws
