S3.55 Assembly and Maintenance Guide
page 19
1 2 3 4 5 6

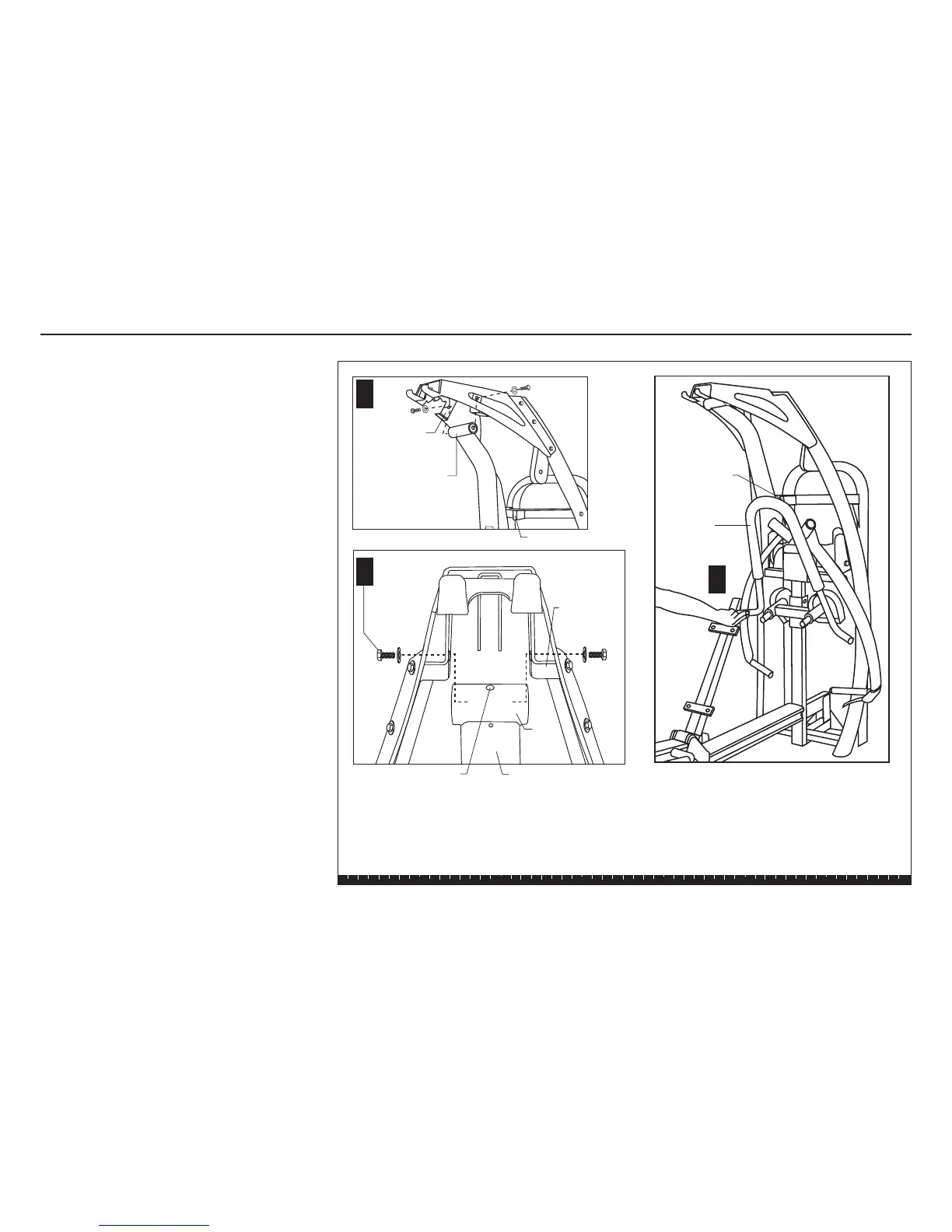

Step 11. Attach the Row Arm
11. Attach the Row Arm
Important: Use a step stool or ladder if you are
less than 6 feet (185 cm) tall.
A. With someone helping you, place the Row Arm
Axle inside the Row Arm Axle Bracket.
B. Secure the Row Arm using
two ¾-inch bolts (blue patch)
two washers
Wrench tighten.
Note: One person can hold the Row Arm in place
while the second person aligns the holes and
tightens the bolts.
C. Push the Row Arm against the Main Frame so the
magnet engages and holds the Row Arm in place.
Note: During disassembly, you will need to insert a
metric hex key into the access hole at the top of the
Axle Tube to remove the two ¾-inch bolts. The metric
hex key keeps the fasteners from spinning.
B
2 - ¾" bolts
2 - washers
A
Row Arm Axle
Row Arm
Axle Bracket
Access hole used only for
disassembly procedures.
C
Row
Arm
Axle
Row Arm
Axle Bracket
Magnet
Row Arm
Magnet
Row Arm

Precor S3.55 Specifications

Weight and Dimensions

length	86 inch (218 cm)
width	68 inch (173 cm)
height	82 inch (203 cm)
shipping weight	812 lb (370 kg)
