S3.55 Assembly and Maintenance Guide
page 46
1 2 3 4 5 6
29. Feed the Pec Fly Cable
A. Feed the slimmer, threaded end of Cable
46003-
101
under the pre-assembled pulley at the base of
the Main Frame.
B. Thread the other end of Cable 46003-101 into the
Single Pulley Block located behind the Lower
Crossbar.
Important: The 4½-inch pulley used in Step C is
heavier and thicker than the standard 4½-inch
pulley.
C. Place the Cable over one heavy-duty 4½-inch
pulley. Attach the pulley to the Main Frame bracket
using
one 2-inch bolt
two washers
one cable retainer
one locknut
D. To access the Large Mounting Bracket on the
Pec Fly, rotate the Double Drum. Insert the large,
threaded end of Cable 46003-101.
E. Secure the Cable using one large locknut.
CAUTION: Ensure that the Cable remains on
top of the drum. Do not pinch it between the
drums. Pinched or crimped cables are not
covered by the Precor Limited Warranty.

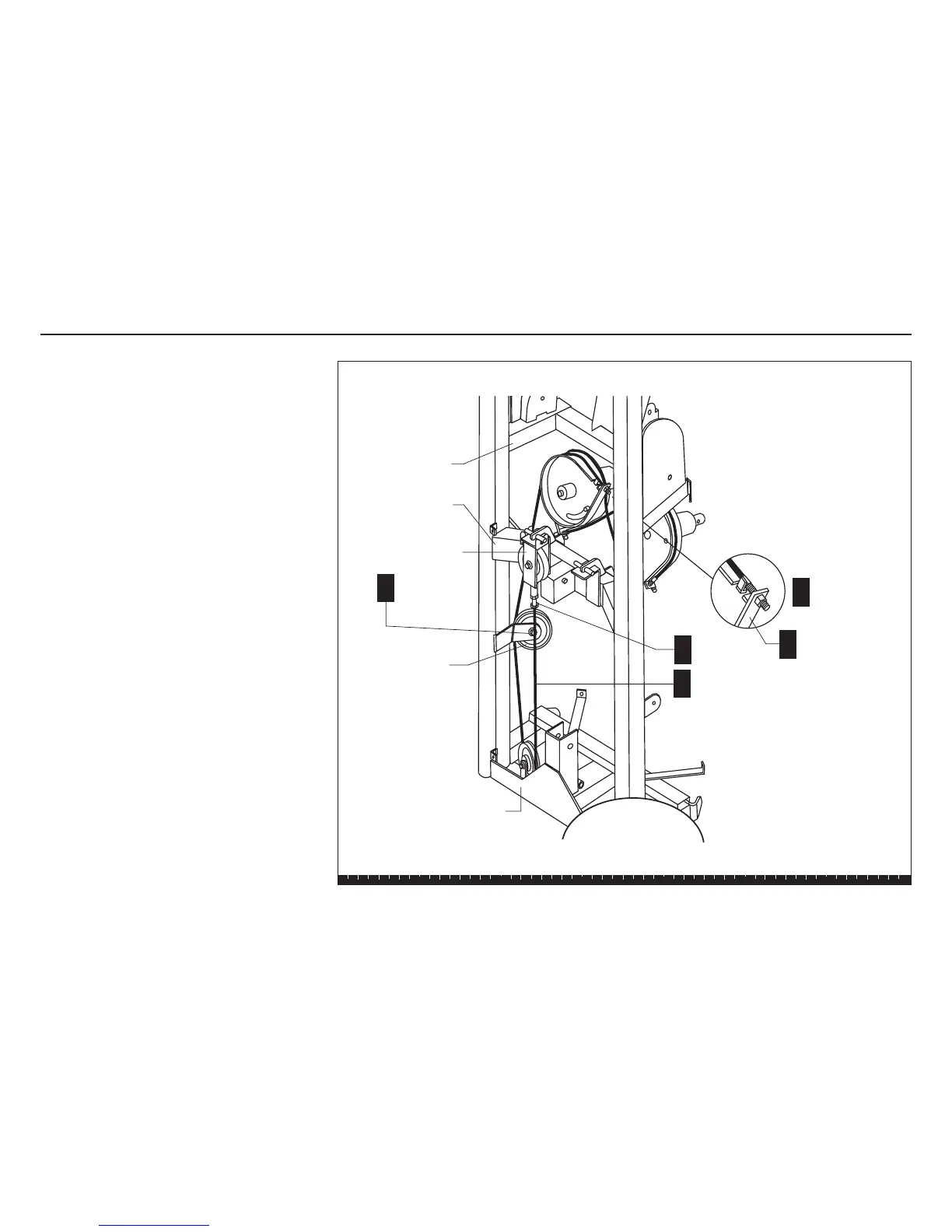

Step 29. Feed the Pec Fly Cable
C
1 - 4½" pulley
1 - 2" bolt
2 - washers
1 - cable retainer
1 - locknut
E
Main Frame
Single Pulley Block
B
A
Cable 46003-101
Middle Cross
Brace
Lower Crossbar
1 - large locknut
D
Large Mounting
Bracket
Heavy-duty Pulley
