S3.55 Assembly and Maintenance Guide
page 18
1 2 3 4 5 6
10. Attach the Right Press Arm
A. Carefully, lower the Right Press Arm into the Press
Arm Bracket while keeping the Axle Tube level.
B. Secure the Right Press Arm using
two 1-inch bolts (blue patch)
two lockwashers
two washers
Wrench tighten.
C. Cut the tie wrap holding the Cable Bracket.
D. In one smooth motion, depress the orange
Release Handle, slightly lift and lower the Press
Arm so that it is out of the way of the remaining
assembly.
Note: During disassembly, you will need to insert a
metric hex key into the access hole at the top of the
Axle Tube to remove the two ¾-inch bolts. The metric
hex key keeps the fasteners from spinning.

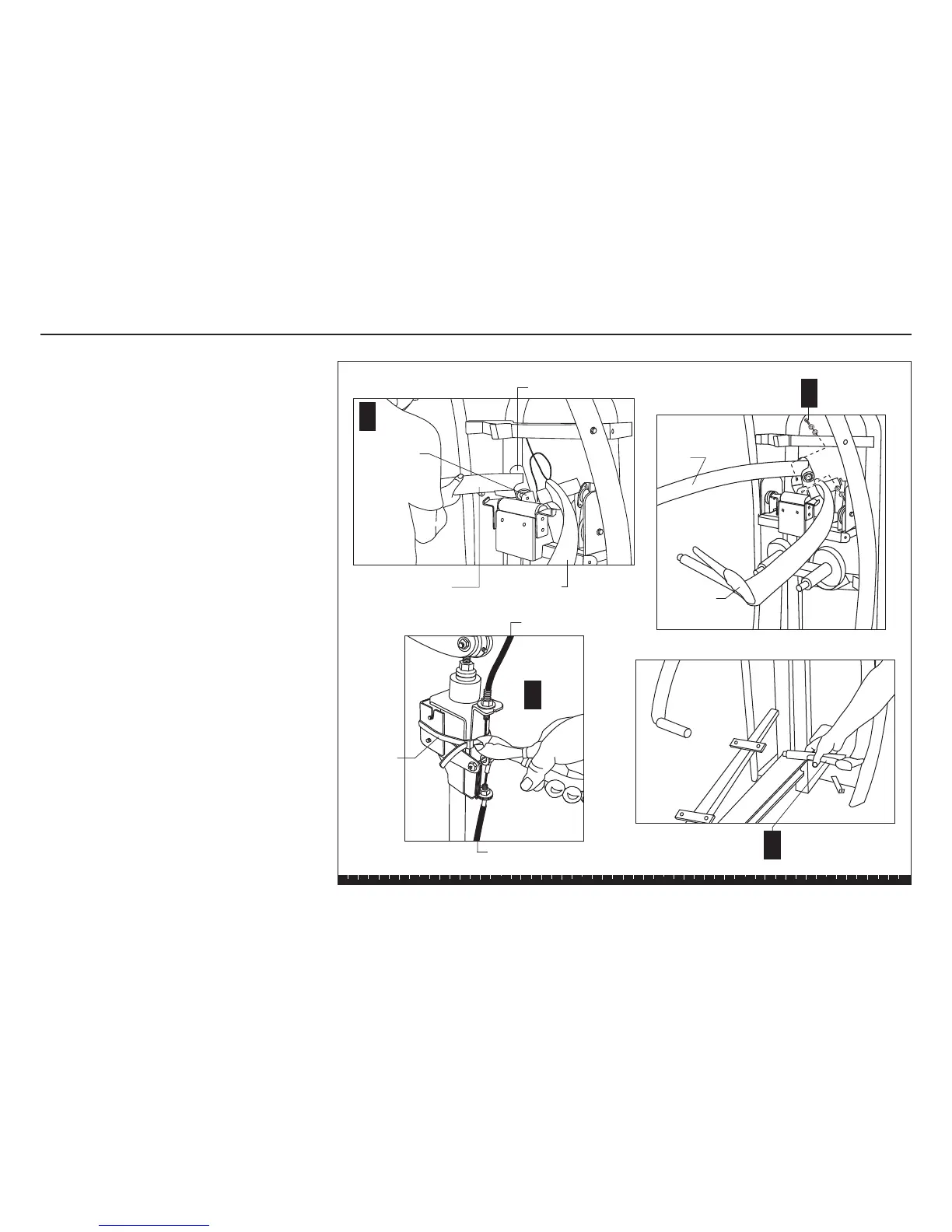

Step 10. Attach the Right Press Arm
A
Press
Arm
Bracket
Left Press Arm
Right Press Arm
Press Arm Cable
Seat Assembly Cable
Tie Wrap
C
B
D
Release Handle
2 - 1" bolts
2 - lockwashers
2 - washers
Axle Tube
Right Press
Arm
Release
Handle

Precor S3.55 Specifications

Weight and Dimensions

length	86 inch (218 cm)
width	68 inch (173 cm)
height	82 inch (203 cm)
shipping weight	812 lb (370 kg)
